PUNCHES, TURRET, N/C & CNC

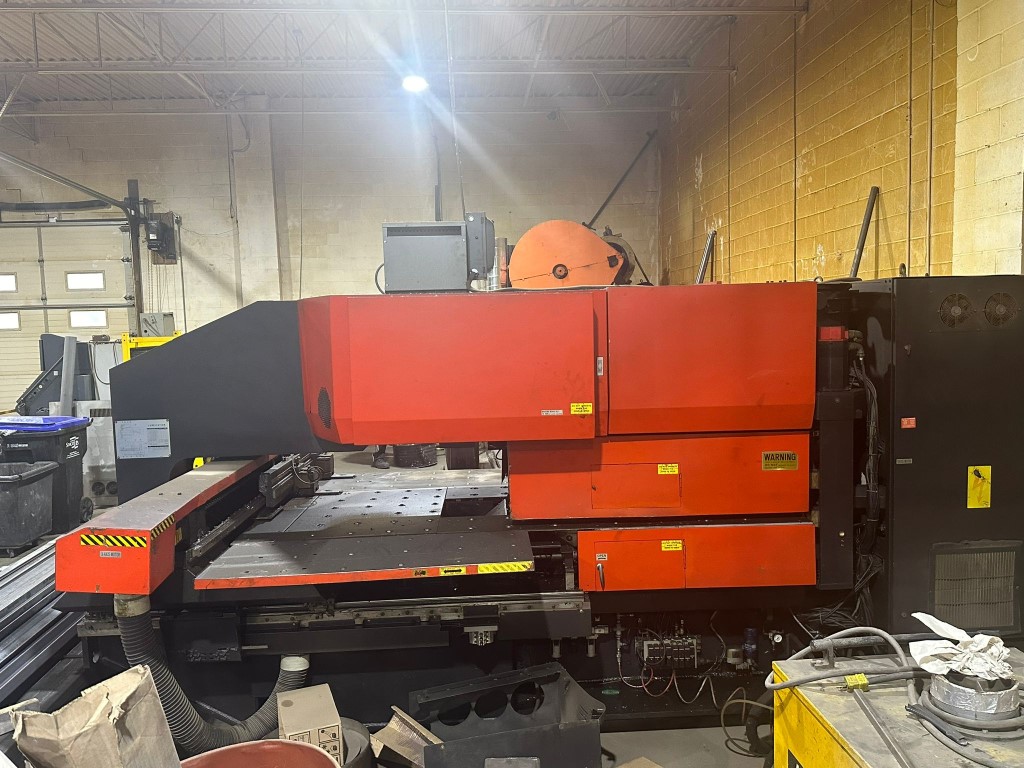

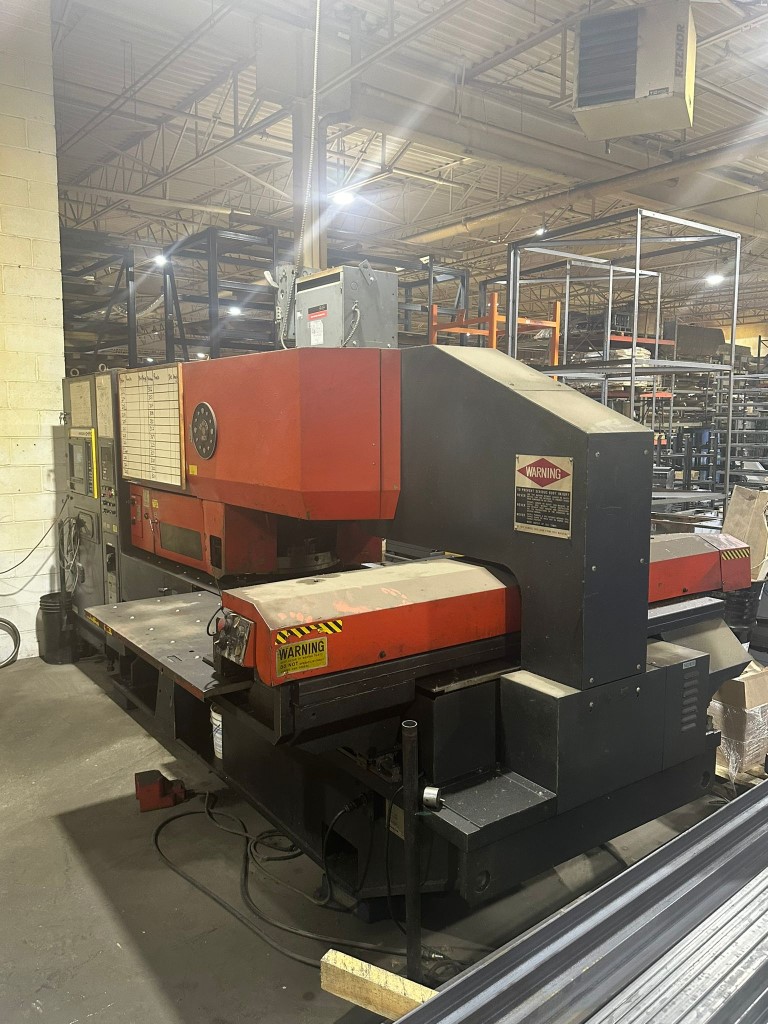

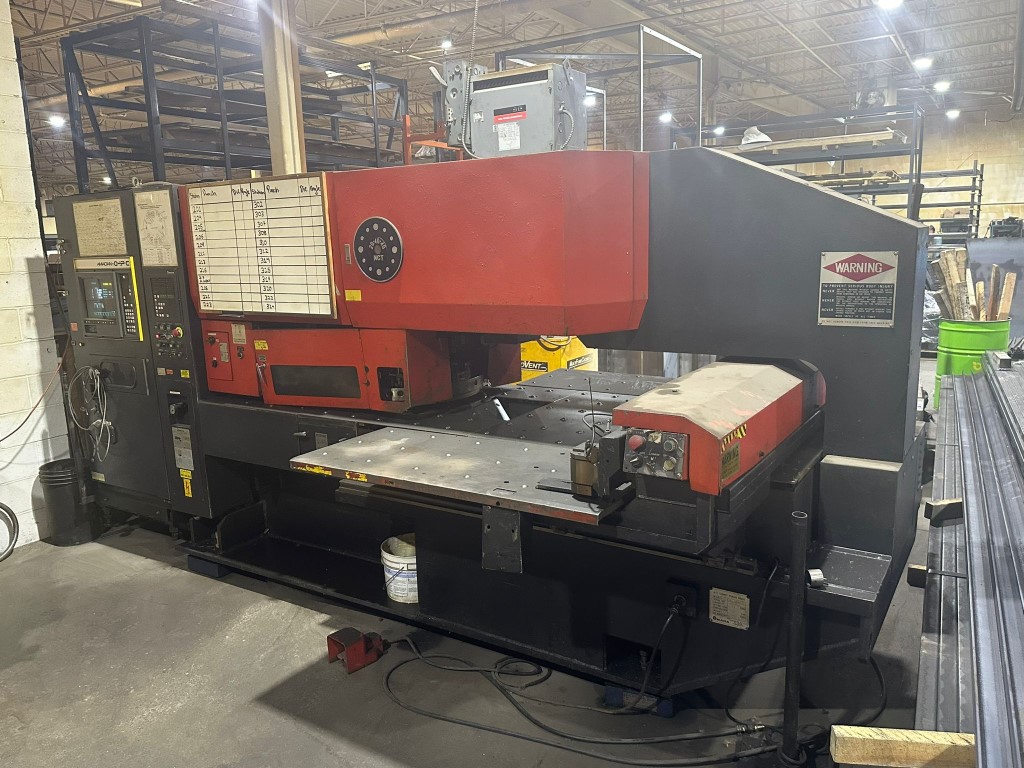

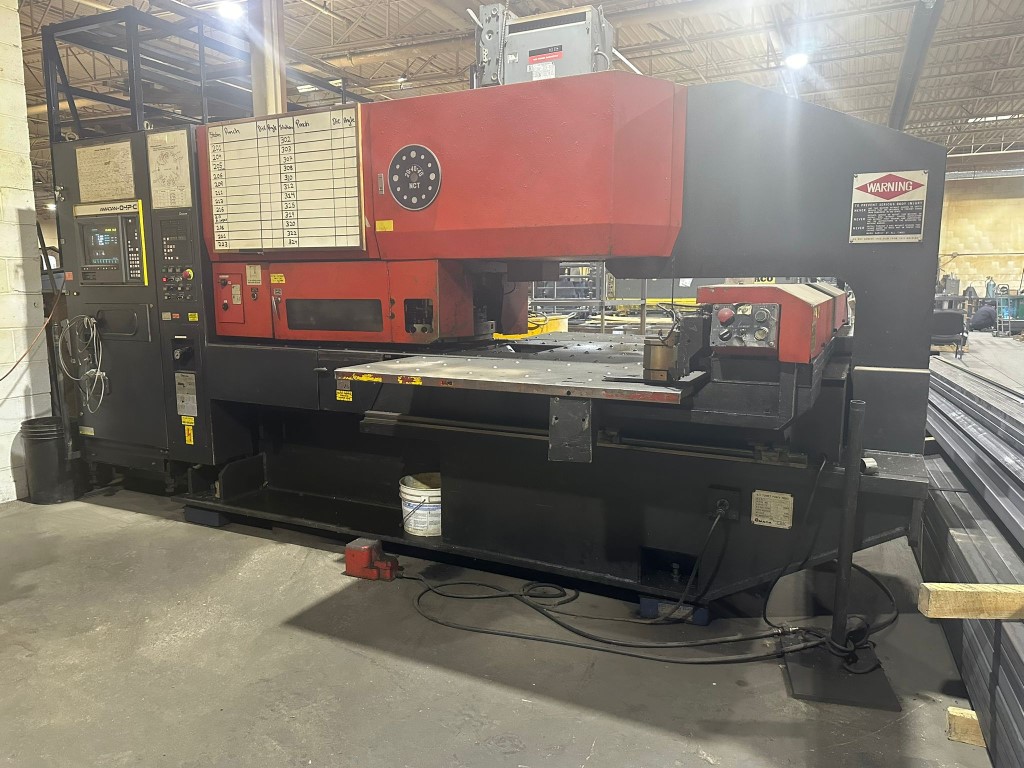

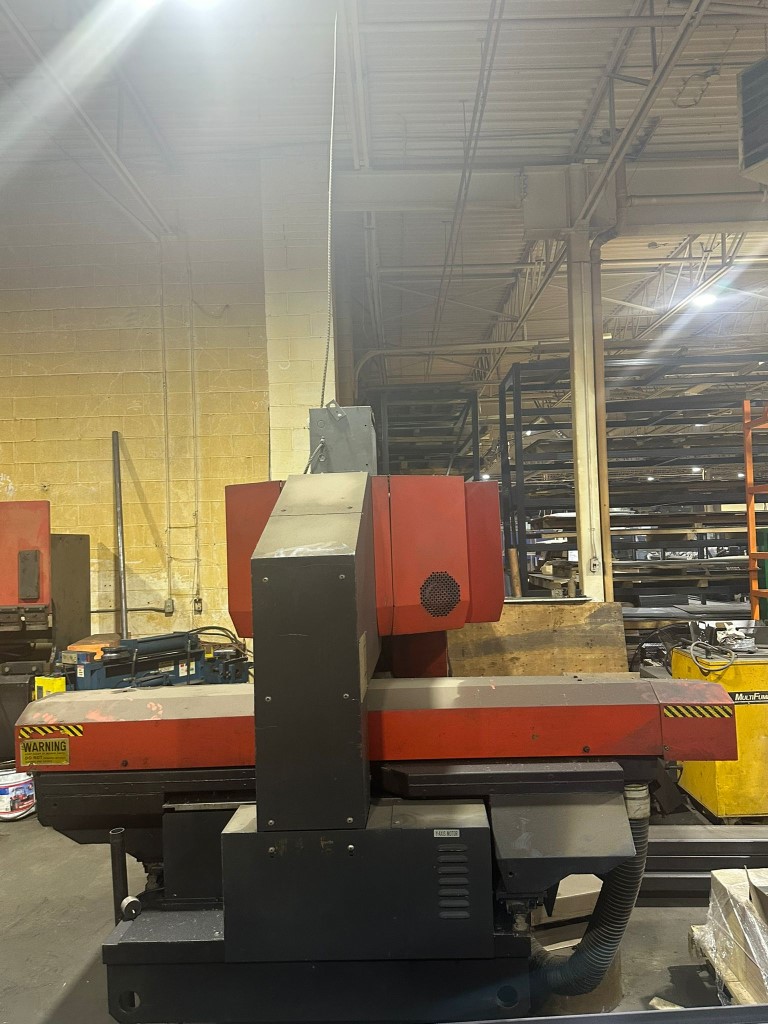

1989 Amada PEGA 204040, Machine # 9044

Amada PEGA 204040 - 20	Amada PEGA 204040 - 18	Amada PEGA 204040 - 17
Amada PEGA 204040 - 03	Amada PEGA 204040 - 14	Amada PEGA 204040 - 22
Amada PEGA 204040 - 01	Amada PEGA 204040 - 05	Amada PEGA 204040 - 13
Amada PEGA 204040 - 25	Amada PEGA 204040 - 12	Amada PEGA 204040 - 23
Amada PEGA 204040 - 06	Amada PEGA 204040 - 04	Amada PEGA 204040 - 11
Amada PEGA 204040 - 07	Amada PEGA 204040 - 24	Amada PEGA 204040 - 19
Amada PEGA 204040 - 08	Amada PEGA 204040 - 02	Amada PEGA 204040 - 15
Amada PEGA 204040 - 26	Amada PEGA 204040 - 10	Amada PEGA 204040 - 16

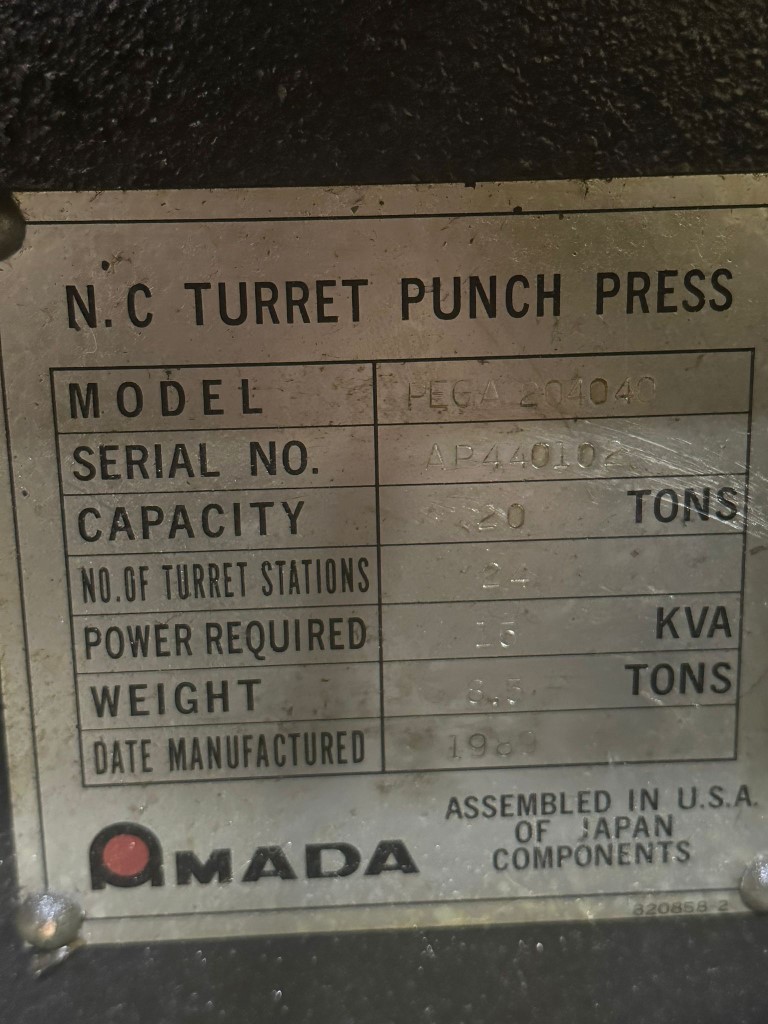

Reference #:	9044
Machine Type:	Turret Punches
Year:	1989
Manufacturer:	Amada
Model:	PEGA 204040

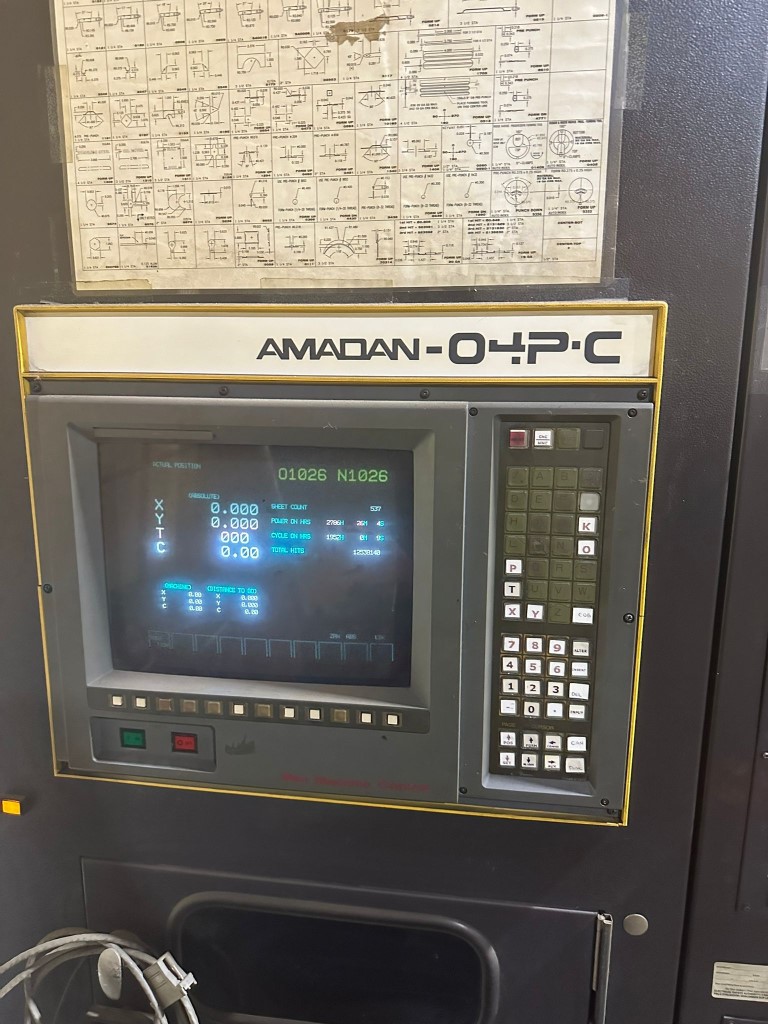

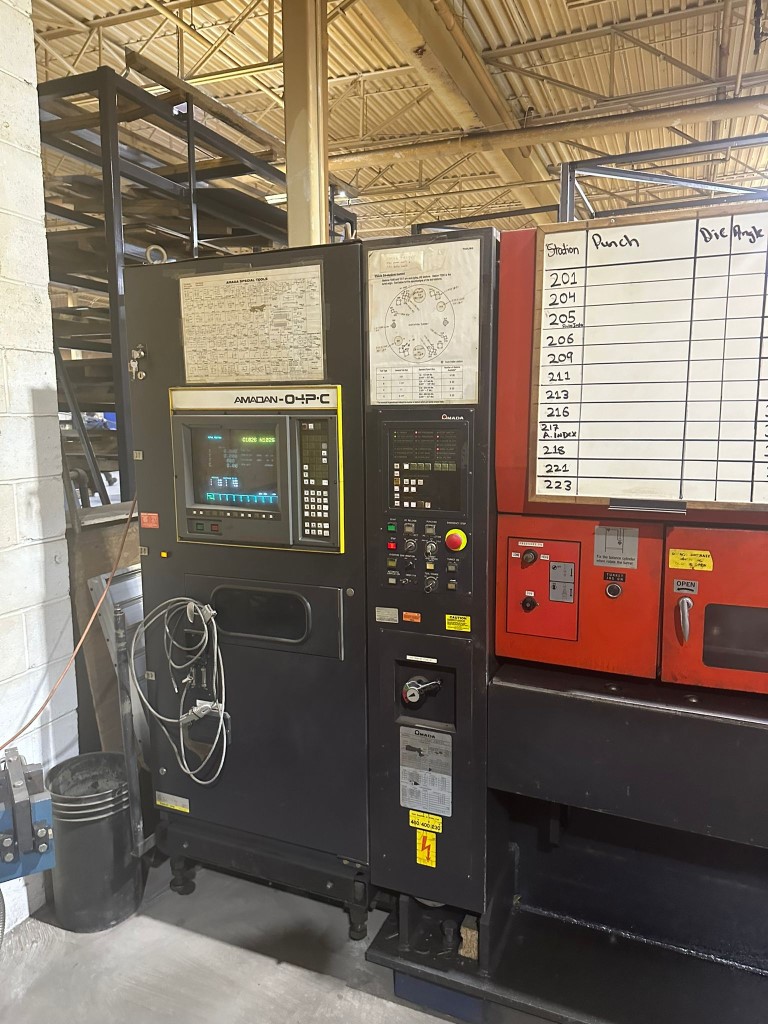

Control:	Amadon 04P-C
Condition:	Used
Code:	P9295

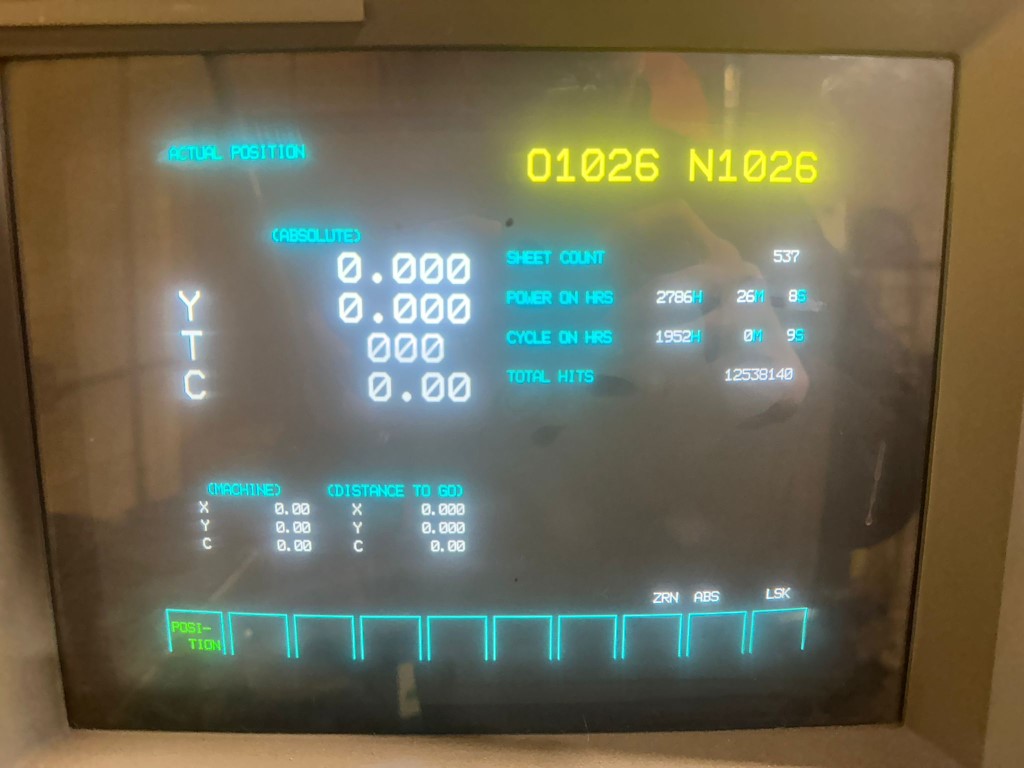

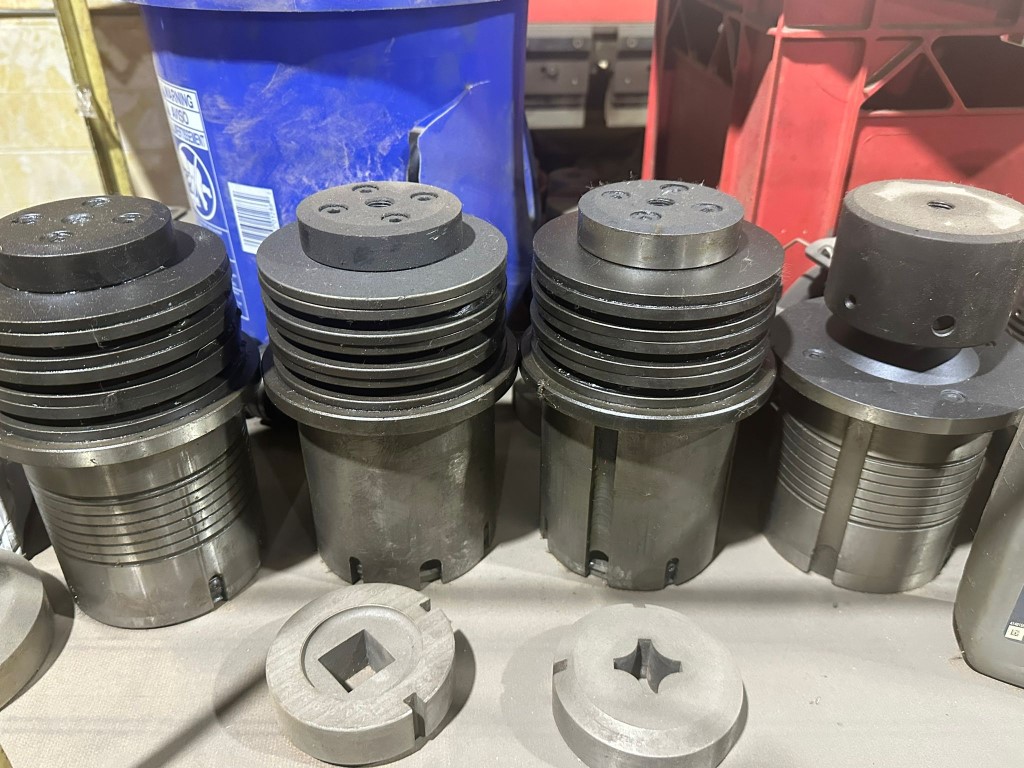

Specifications: Number of Turret Stations: 24 Power Required: 15 kVA Tonnage Capacity: 20 Tons Sheet Size: 40" x 40" Material Thickness Capacity: 1/4" Strokes Per Minute: 350 Axis Speed: 2000 IPM Turret Speed: 30 RPM Hits Per Minute on 1" Moves: 200 Smallest Programmable Increment: 0.001" Electrics: 460/400/230 Approximate Weight: 20,000 Lbs Appoximate Dimensions: 178" x 126" x 88" Sheet Count: 547 Total Hits: 12538140 Equipped With: Some Tooling
