LATHES, ENGINE

 Leblond Regal 24 x 72 Engine Lathe, Machine # 9037
Leblond Regal 24 x 72 Engine Lathe, Machine:9037, image:0
Leblond Regal 24 x 72 Engine Lathe - 09		Leblond Regal 24 x 72 Engine Lathe, Machine:9037, image:1
Leblond Regal 24 x 72 Engine Lathe - 05		Leblond Regal 24 x 72 Engine Lathe, Machine:9037, image:2

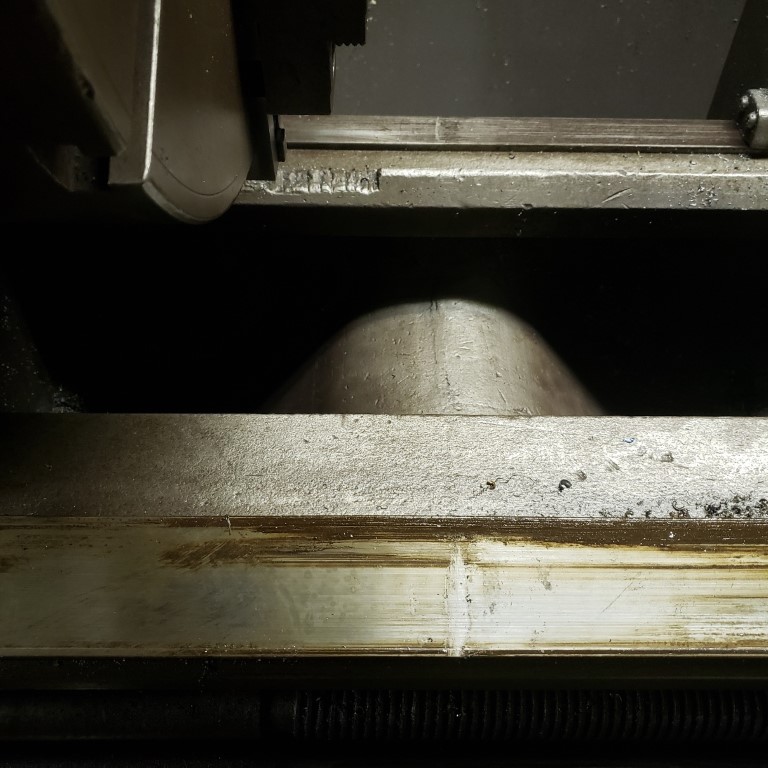

Leblond Regal 24 x 72 Engine Lathe - 06
Leblond Regal 24 x 72 Engine Lathe, Machine:9037, image:3
Leblond Regal 24 x 72 Engine Lathe - 07		Leblond Regal 24 x 72 Engine Lathe, Machine:9037, image:4
Leblond Regal 24 x 72 Engine Lathe - 08		Leblond Regal 24 x 72 Engine Lathe, Machine:9037, image:5
Leblond Regal 24 x 72 Engine Lathe - 03
Leblond Regal 24 x 72 Engine Lathe, Machine:9037, image:6
Leblond Regal 24 x 72 Engine Lathe - 04		Leblond Regal 24 x 72 Engine Lathe, Machine:9037, image:7

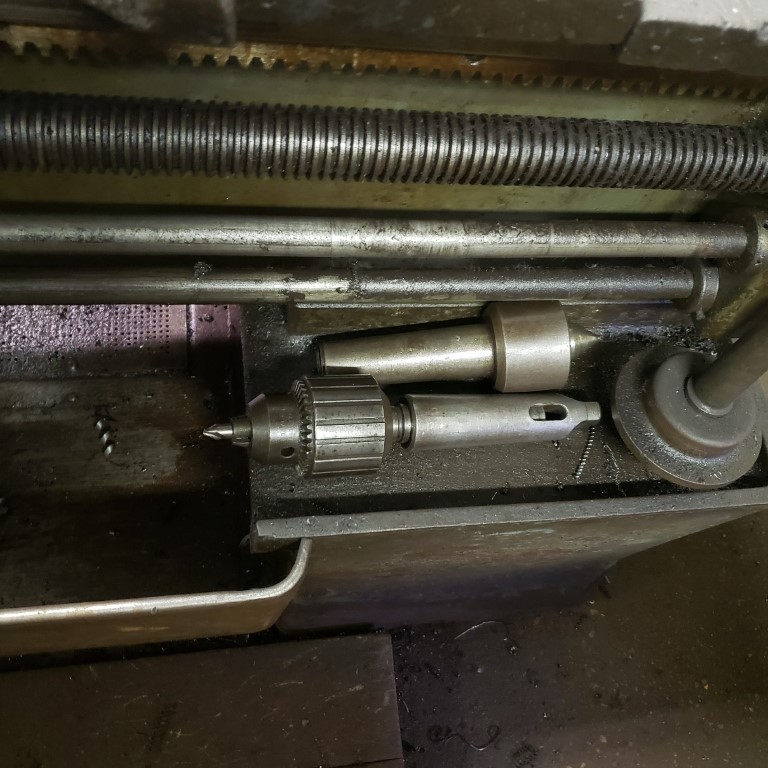

Leblond Regal 24 x 72 Engine Lathe - 10		Leblond Regal 24 x 72 Engine Lathe, Machine:9037, image:8
Leblond Regal 24 x 72 Engine Lathe - 01
Leblond Regal 24 x 72 Engine Lathe, Machine:9037, image:9
Leblond Regal 24 x 72 Engine Lathe - 02
Reference #:9037
Machine Type:Engine Lathes
Year:
Manufacturer:Leblond
Model:Regal 24 x 72 Engine Lathe
Control:
Condition:Used
Under Power:Yes
Code:L3000

Capacity:

  • Swing Over Bed: 26"
  • Swing Over Cross Slide: 18-1/4"
  • Distance Between Centers: 72"

Spindle:

  • Spindle Speeds Min - Max: 16 - 1200 RPM
  • Main Motor (HP): 30 HP
  • Spindle Bore/Thru Hole: 2-1/8"
  • Spindle Speeds: 12

Carriage:

  • Carriage Length on Bed: 26"
  • Bridge Width: 9"
  • Cross Slide Travel: 14-1/4"
  • Compound Rest Travel: 4-3/4"
  • Feed Changes: 48
  • Feed Range: .0036 - .205 IPR
  • Thread Changes: 48
  • Threads: 2 - 112 TPI
  • Leadscrew Diameter: 1-7/18"

Tailstock:

  • Tailstock Spindle Diameter: 3-1/8"
  • Center Taper: MT 5

General:

  • Weight: 8,250 Lbs

Equipped With:

  • Aloris tool post and holders included
  • Steady Rests


DISCLAIMER: The information presented in the write ups and the photographic representations of the equipment are believed to be accurate at the time the pages are created. The information presented on the web site should not be used for formal quotation. Price and information presented in the write ups on the web site are subject to change without notice. Superior Machinery claims no responsibility for inaccuracies of the information presented on the pages of this website. Please contact one of our sales representatives if you require more information or a current formal quotation.
