Machinery List

BORING MILLS, VERTICAL & VTL

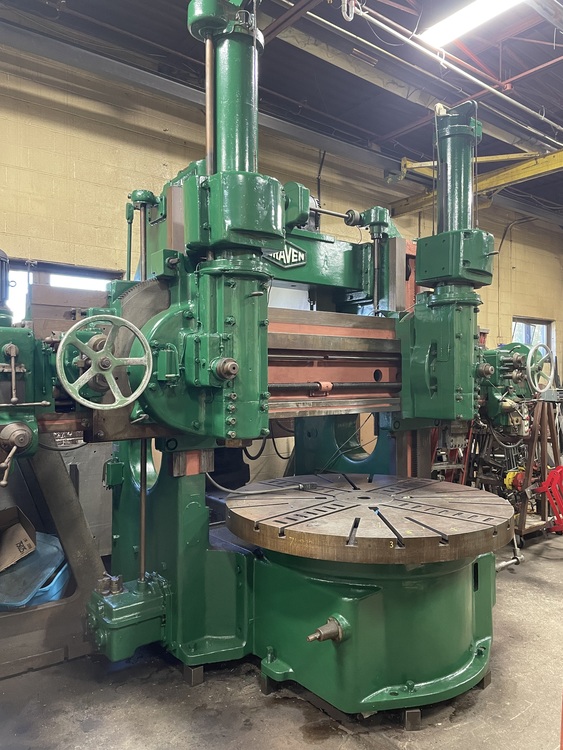

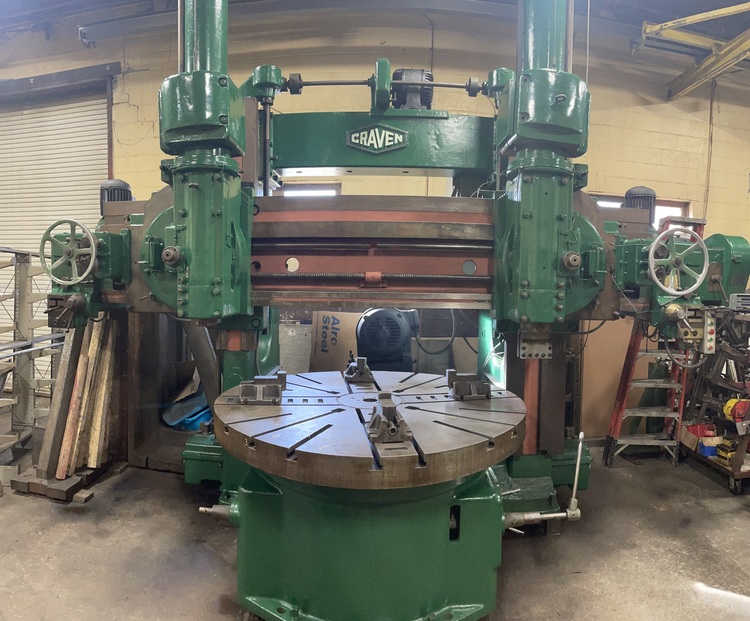

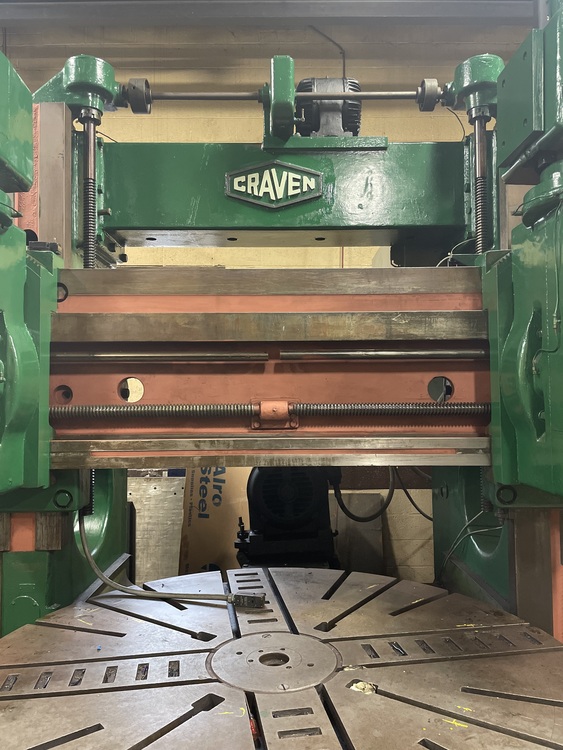

Craven 72 Inch VBM, Machine # 9005

Craven 72 Inch VBM - 1	Craven 72 Inch VBM - 5	Craven 72 Inch VBM - 3
Craven 72 Inch VBM - 2	Craven 72 Inch VBM - 4

Reference #:	9005
Machine Type:	Vertical Lathes
Year:
Manufacturer:	Craven
Model:	72 Inch VBM
Control:
Condition:	Used
Under Power:	Yes
Code:	B6006

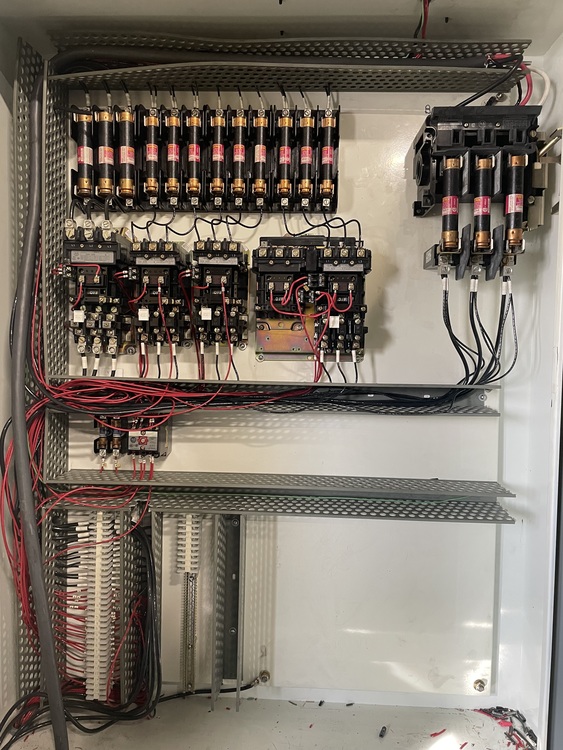

Capacity: Table Size: 72" Maximum Swing: 82" Height Under Rail: 42" Spindle: Speeds Min. - Max.: ?? Motor: 35 HP Heads: Number of Head(s): 2 Turret Head: ?? Side Head: ?? General: Electrics: 440/3/60 Equipped With: 12 Table speeds with brake 72" diameter 4-jaw chuck 2 ram heads DRO Updated electrics Adjustable rail Power rapid traverse Poser rapids on ram and X-axis heads (both sides LH & RH heads) Angle tilting graduated rams on both sides Taper turning on RH head (gear box) 12 speed / feed range on LH & RH rams Two speed gear box on RH & LH rams
