BORING MILLS, VERTICAL & VTL, CNC W/ATC

2000 O-M Ltd. VT5-16N, Machine # 8896
O-M Ltd. VT5-16N, Machine:8896, image:0
O-M Ltd. VT5-16N - 6		O-M Ltd. VT5-16N, Machine:8896, image:1

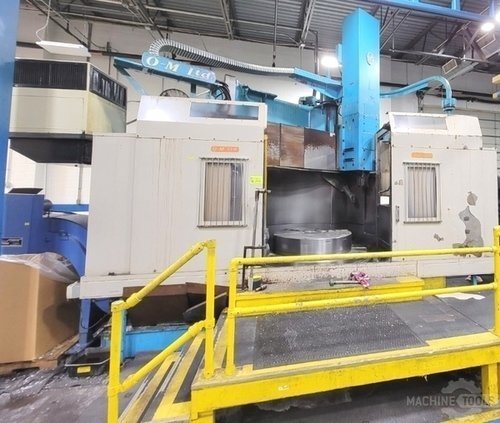

O-M Ltd. VT5-16N - 1		O-M Ltd. VT5-16N, Machine:8896, image:2

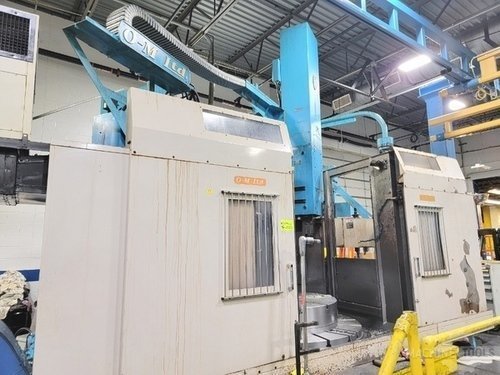

O-M Ltd. VT5-16N - 2
O-M Ltd. VT5-16N, Machine:8896, image:3

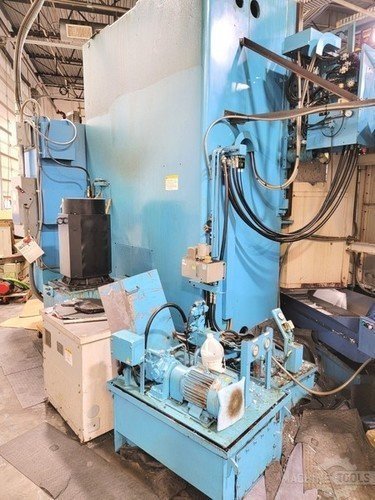

O-M Ltd. VT5-16N - 8		O-M Ltd. VT5-16N, Machine:8896, image:4
O-M Ltd. VT5-16N - 3		O-M Ltd. VT5-16N, Machine:8896, image:5
O-M Ltd. VT5-16N - 4
O-M Ltd. VT5-16N, Machine:8896, image:6

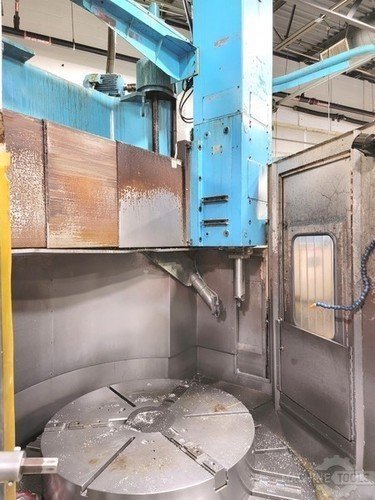

O-M Ltd. VT5-16N - 5		O-M Ltd. VT5-16N, Machine:8896, image:7
O-M Ltd. VT5-16N - 7		O-M Ltd. VT5-16N, Machine:8896, image:8

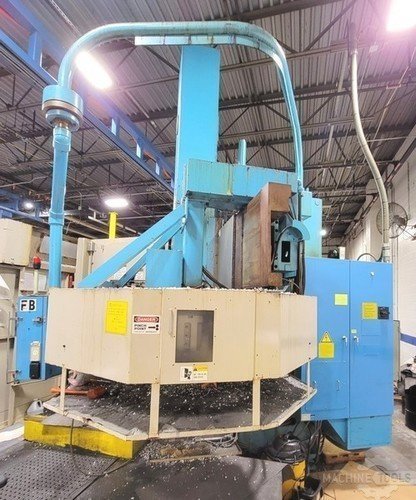

O-M Ltd. VT5-16N - 9
Reference #:8896
Machine Type:Vertical Lathes
Year:2000
Manufacturer:O-M Ltd.
Model:VT5-16N
Control:Fanuc 18i
Condition:Used - Very Good
Under Power:Yes
Code:B6200A

Capacity:

  • Table Diameter: 63"
  • Maximum Swing: 78.74"
  • Maximum Height Under Rail: 62.99"

Spindle:

  • Speeds: 320 RPM
  • Motor: 75 HP

Head(s):

  • Number Of Heads: ??
  • Type Head(s): ??
  • X-Axis Travel: ??
  • Z-Axis Travel: ?
  • Ram Size: 8.25" x 8.25" Square

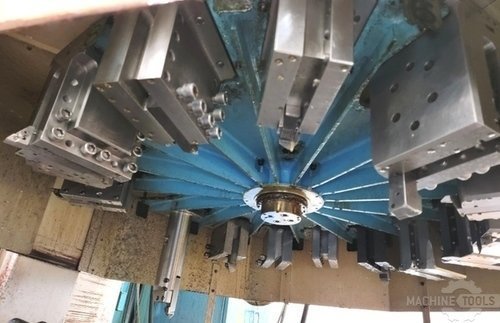

Tool Changer:

  • Number Of Positions: 16

Dimensions:

  • Floor Space: 205" x 169"
  • Height: 214"
  • Weight: 41,800 Lbs

Equipped With

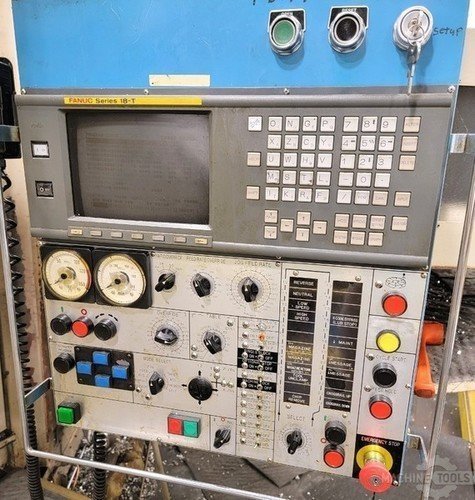

  • Fanuc 18i CNC
  • 2-Speed Gearbox

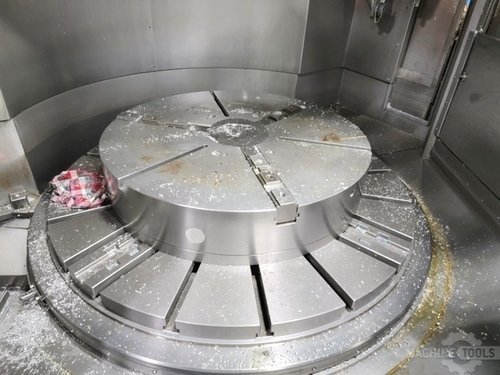

  • 63" Table Diameter Combination T-Slotted
  • 48" 3- Jaw Manual Extra Height Chuck on Table ($20,000 added value)
  • Side Discharge Chip Conveyor
  • 16 Pcs. O-M Propietary Tool Holders in ATC Photos / 50k Added Value
  • Multitap Transformer
  • Air Filtration Unit Installed

Comments:

  • Tight tolerance cutting application machine from aerospace shop

Video:

  • https://rumble.com/v3f481s-o-m-ltd.-vt5-16n.html

Terms:

  • Payment in Full Prior to Shipment or Machines Can be Secured and Ordered
  • with Deposits with Shipping Dates 2 Weeks on Schedule on Local Prep &
  • Rigging. Preparation and Rigging costs apply
