BORING MILLS, VERTICAL & VTL, CNC W/MILLING & ATC

2014 YOU JI YV-600ATC+C, Machine # 8628
YOU JI YV-600ATC+C, Machine:8628, image:0
YOU JI YV-600ATC+C - 1		YOU JI YV-600ATC+C, Machine:8628, image:1

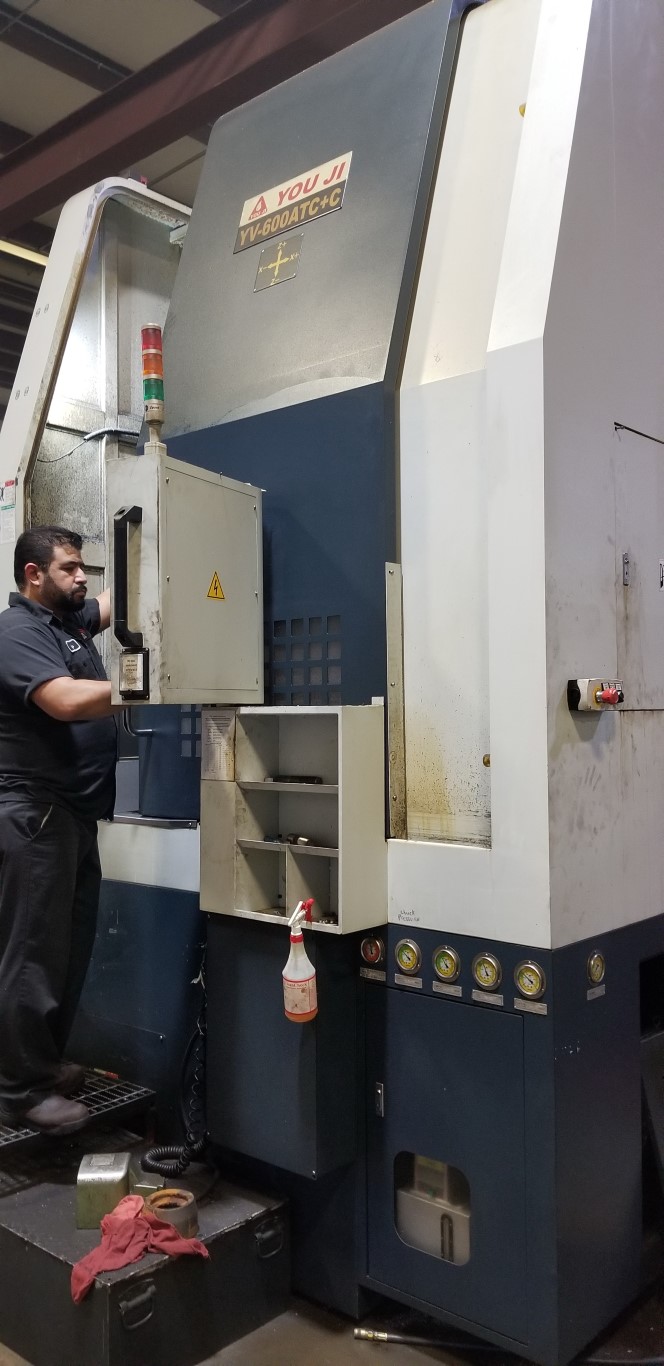

YOU JI YV-600ATC+C - 3		YOU JI YV-600ATC+C, Machine:8628, image:2

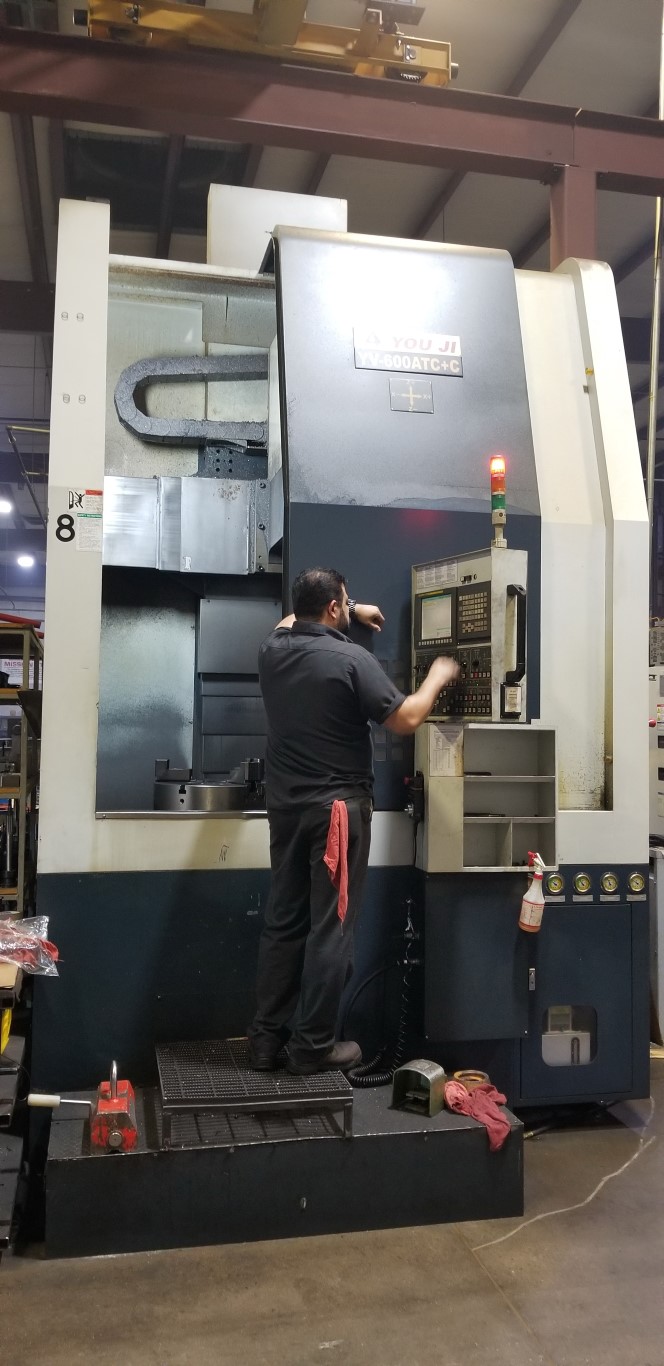

YOU JI YV-600ATC+C - 4
YOU JI YV-600ATC+C, Machine:8628, image:3

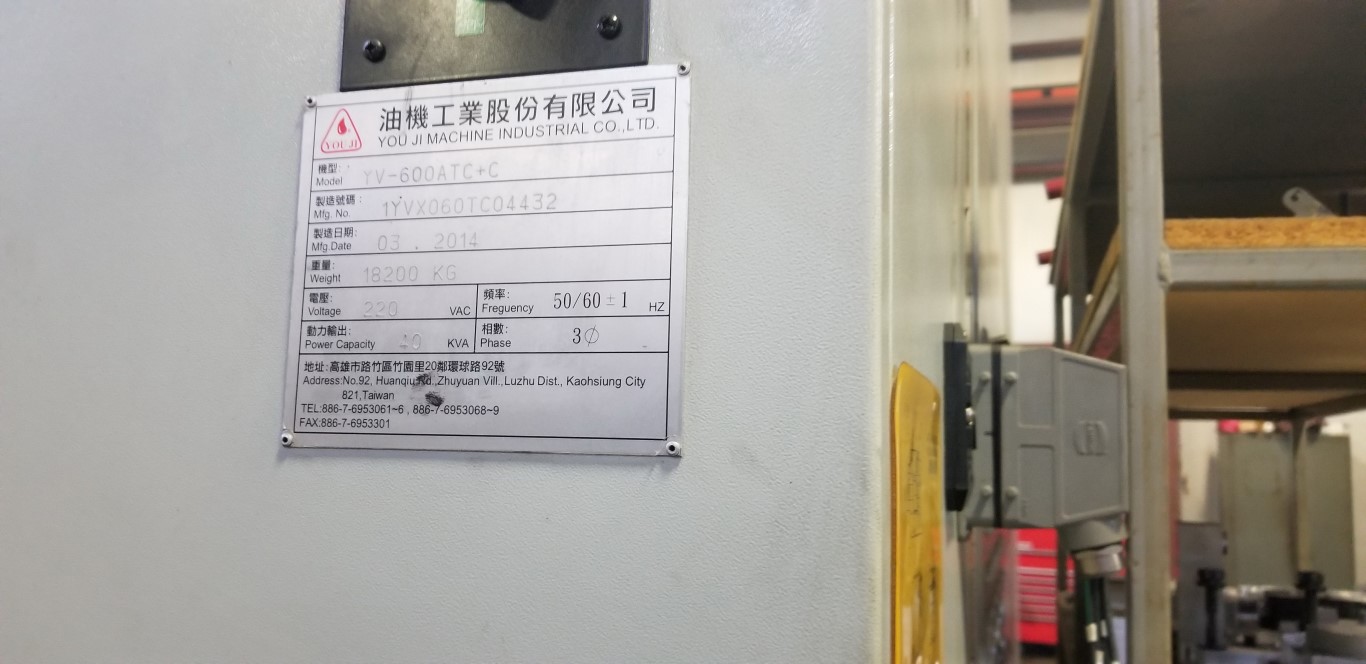

YOU JI YV-600ATC+C - 7		YOU JI YV-600ATC+C, Machine:8628, image:4

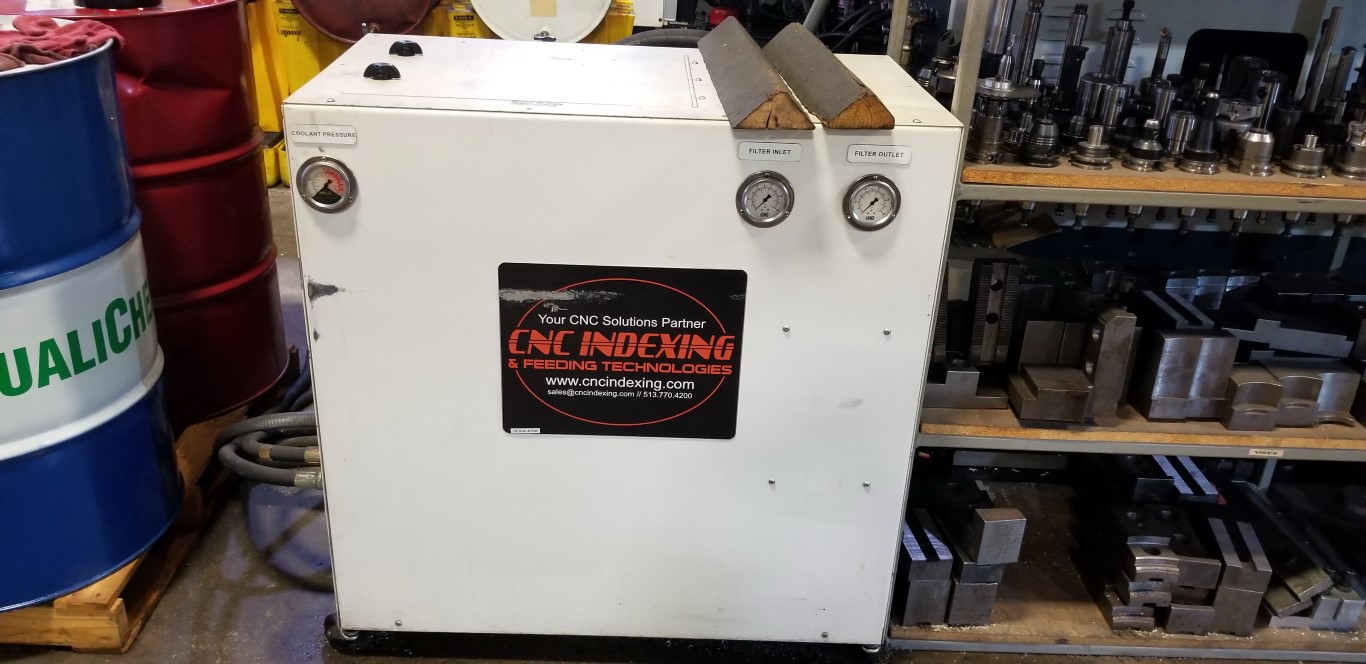

YOU JI YV-600ATC+C - 5		YOU JI YV-600ATC+C, Machine:8628, image:5

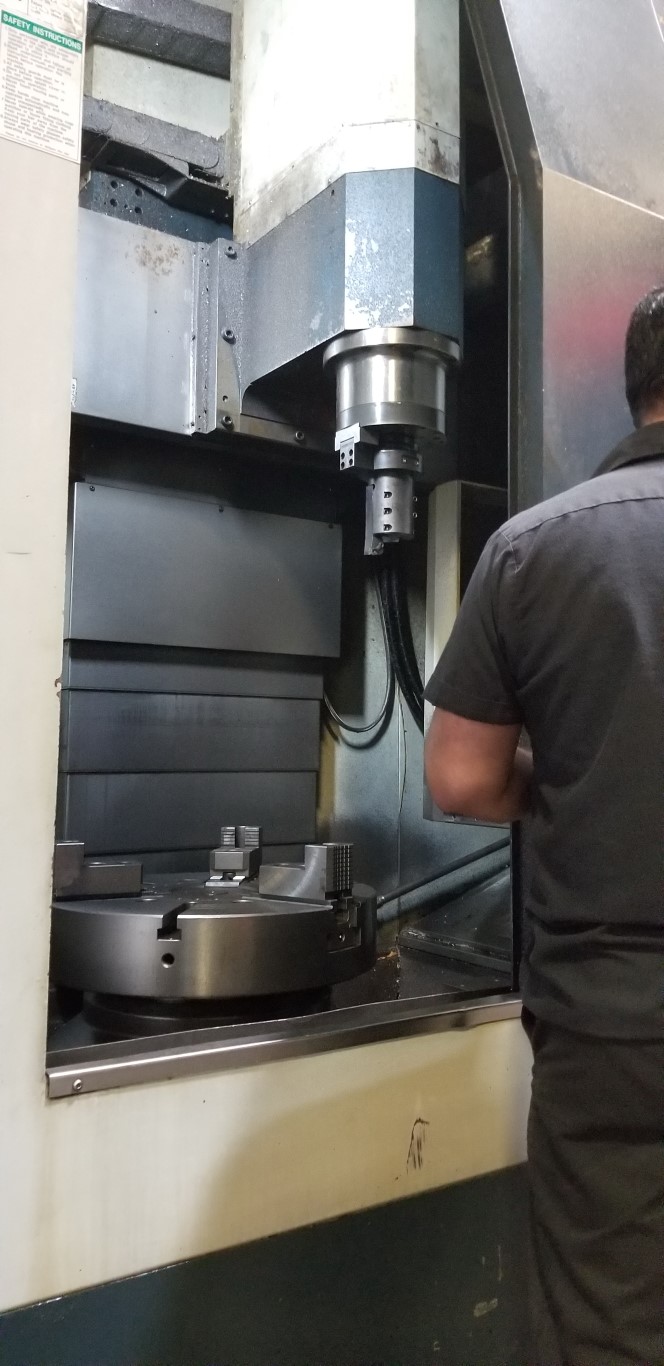

YOU JI YV-600ATC+C - 6
YOU JI YV-600ATC+C, Machine:8628, image:6

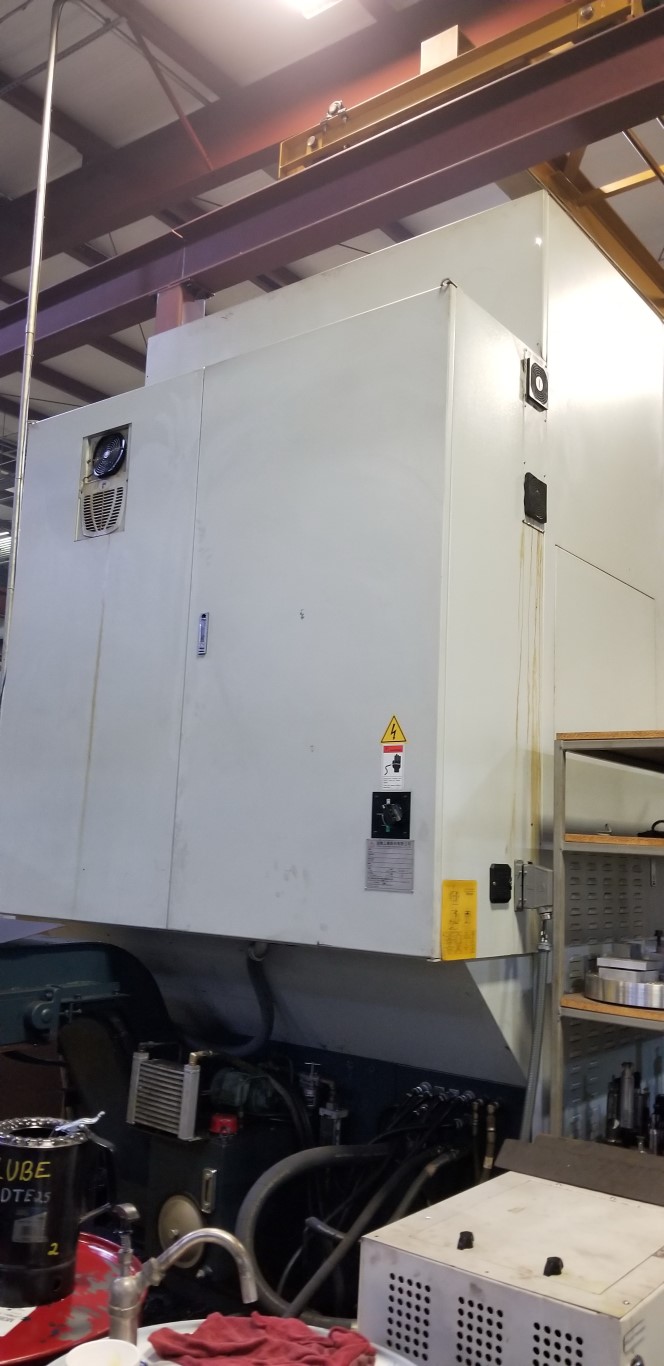

YOU JI YV-600ATC+C - 2
Reference #:8628
Machine Type:Vertical Lathes
Year:2014
Manufacturer:YOU JI
Model:YV-600ATC+C
Control:Fanuc
Condition:Used
Under Power:Yes
Code:B6175A

Capacity:

  • Table Diameter: 33.4"
  • Maximum Swing: 33.4"
  • Maximum Height Under Rail: 25.6"
  • Table Indexing: 0.001 degree

Spindle

  • Speeds: 1500 RPM
  • Motor: 30 HP
  • Nose: A2-11
  • Taper: MT 7
  • C-Axis Indexing: 0.001 Degree

Head(s)

  • X-Axis Travel (left to right): -1.97"; +22.4"
  • Z-Axis Travel (cross rail / ram): 31.5"

Tool Changer:

  • Number of Positions: 12
  • Live Spindle Motor: 10 HP
  • Live Spindle Speeds: 2400 RPM
  • Ram Taper: BT 50

General:

  • Dimensions: 141" x 96" x 130"
  • Weight: 34,000 Lbs
  • Conveyor Dimensions: 96" x 12" x 48"

Equipped With:

  • Fanuc Control
  • Spindle Drive 2 speed ZF planetary gearbox
  • 24" 3-Jaw Chuck
  • Automatic Tool Changer (12 Tool Pockets) (50 Taper)
  • C axis and Live Tools (option)
