Specifications:
- Materials: Painted, Galvanized
- Max. Coil Width: 48"
- Thickness Range: .017- .035"
- Max. Yield: 80,000 PSI
- Line Direction: Right to Left
- Arbor Diameter: 3.5"
- Horizontal Centers: 18"

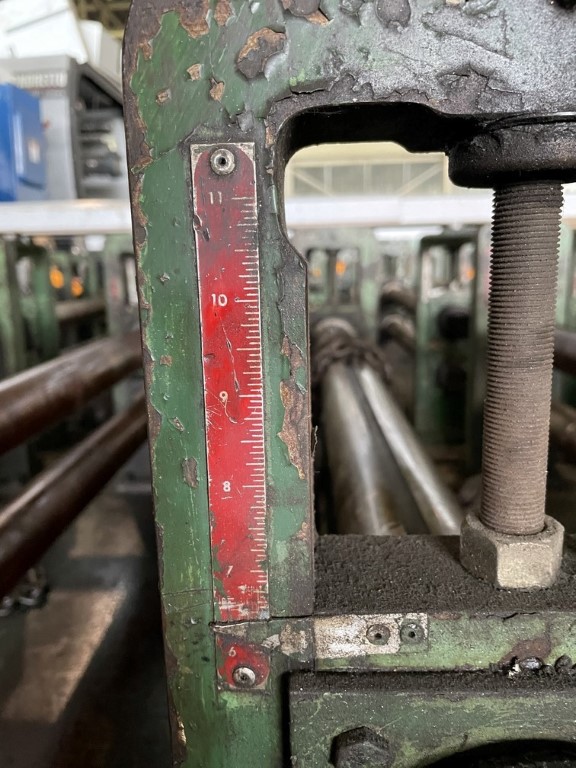

- Vertical Adjustment: 6- 11"
- Line Speed: 0- 120 FPM
- Dimensions: 130" W x 359" L
Commenmts:

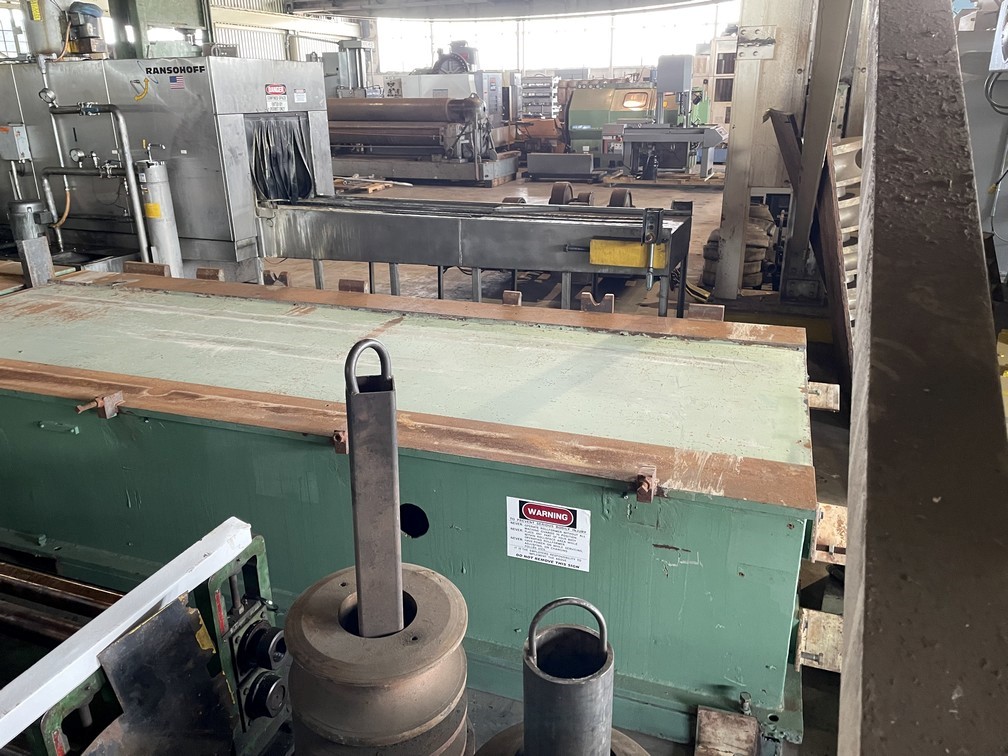

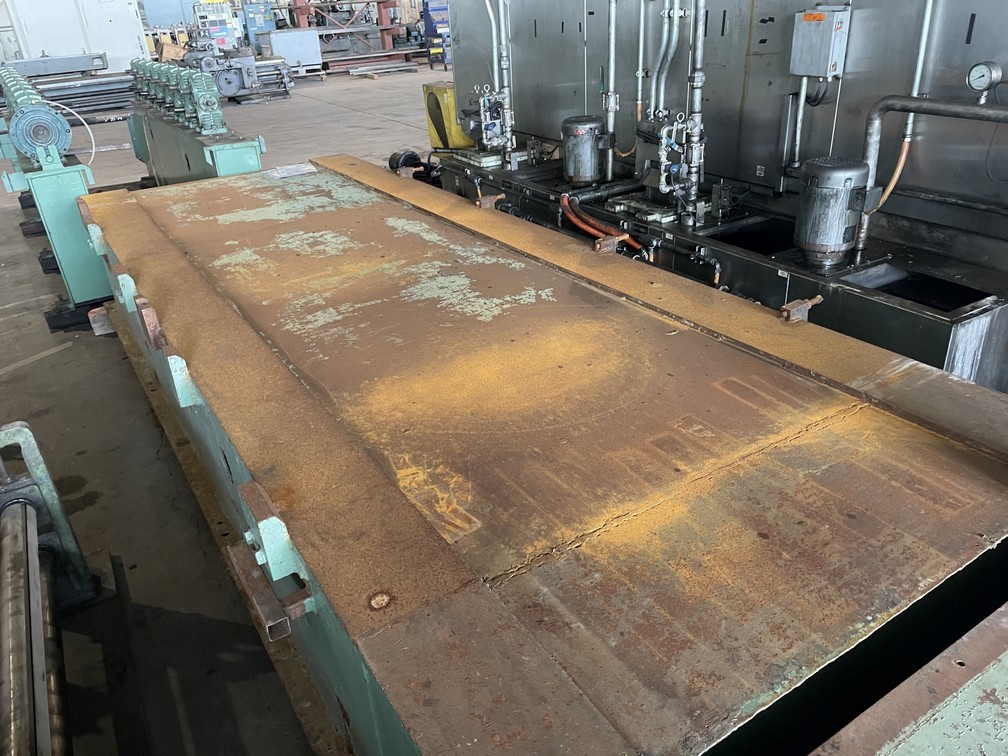

- Roll Former Base #1
- 64" W x 178" L
- Roll Former Base #2
- 64" W x 160" L

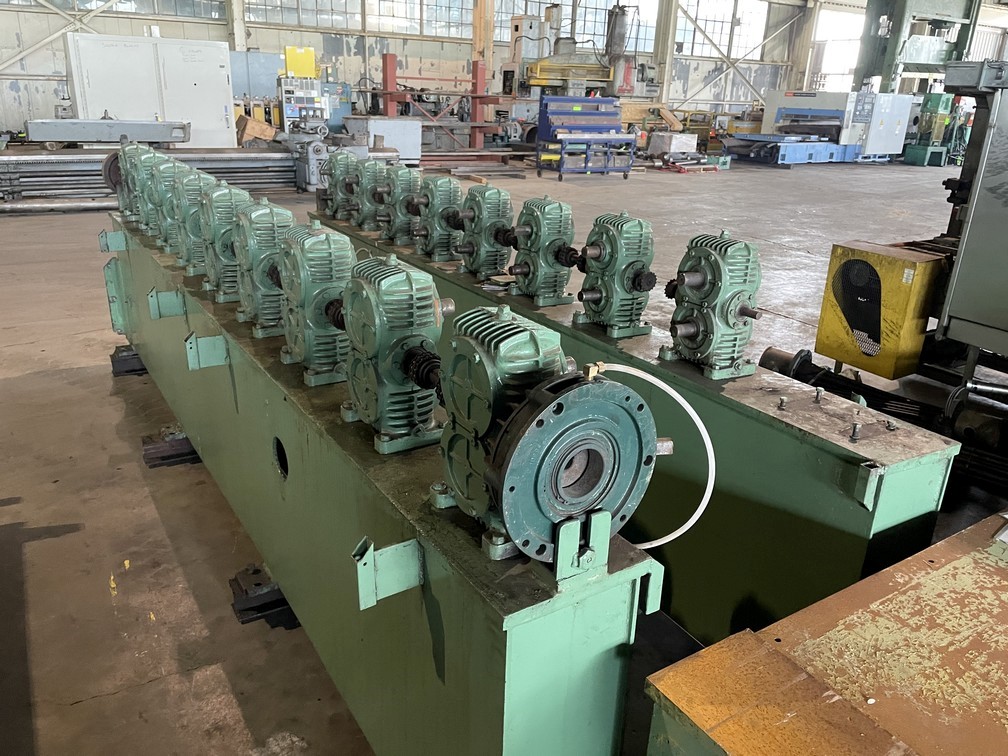

- Gearbox Assembly #1
- Nine (9) Passes
- DC Motor

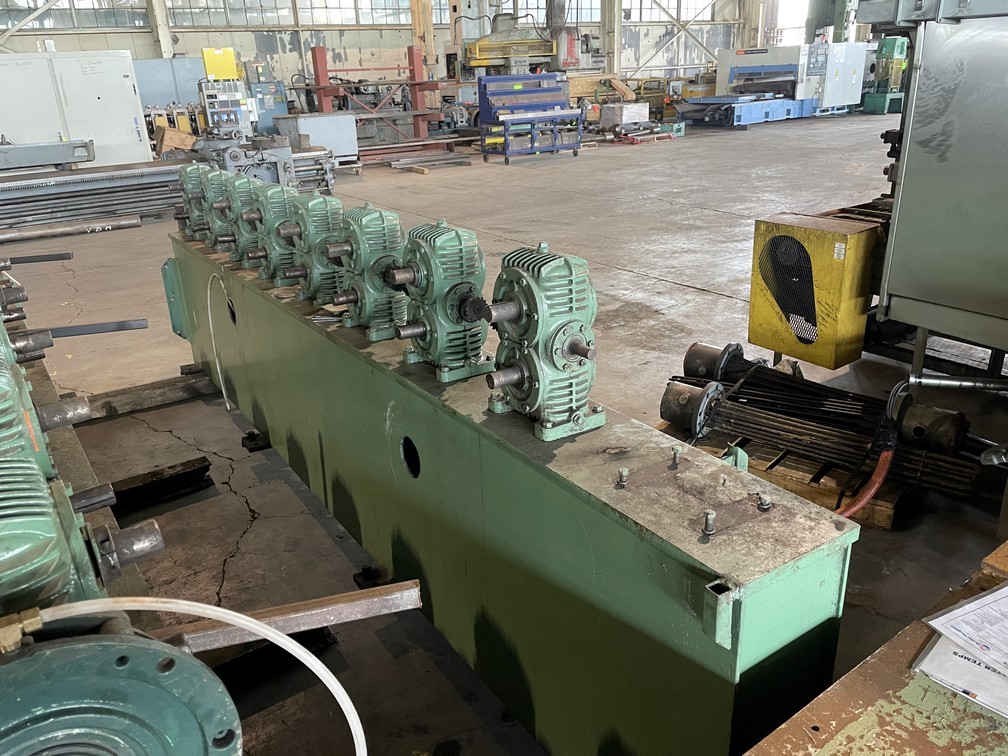

- Gearbox Assembly #2
- Nine (9) Passes

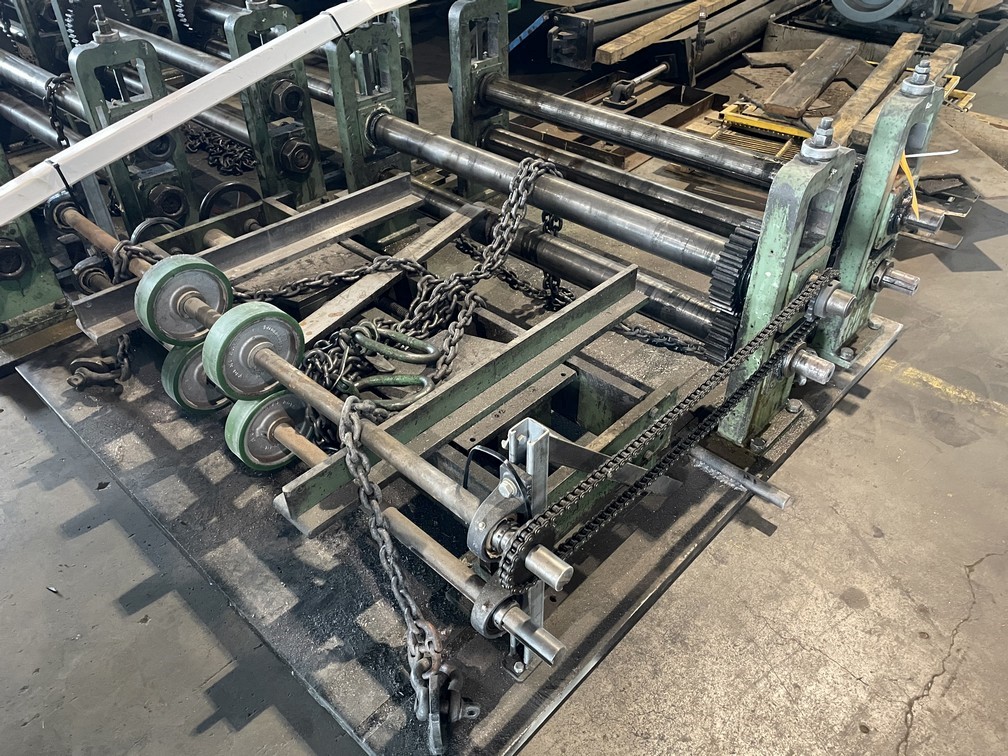

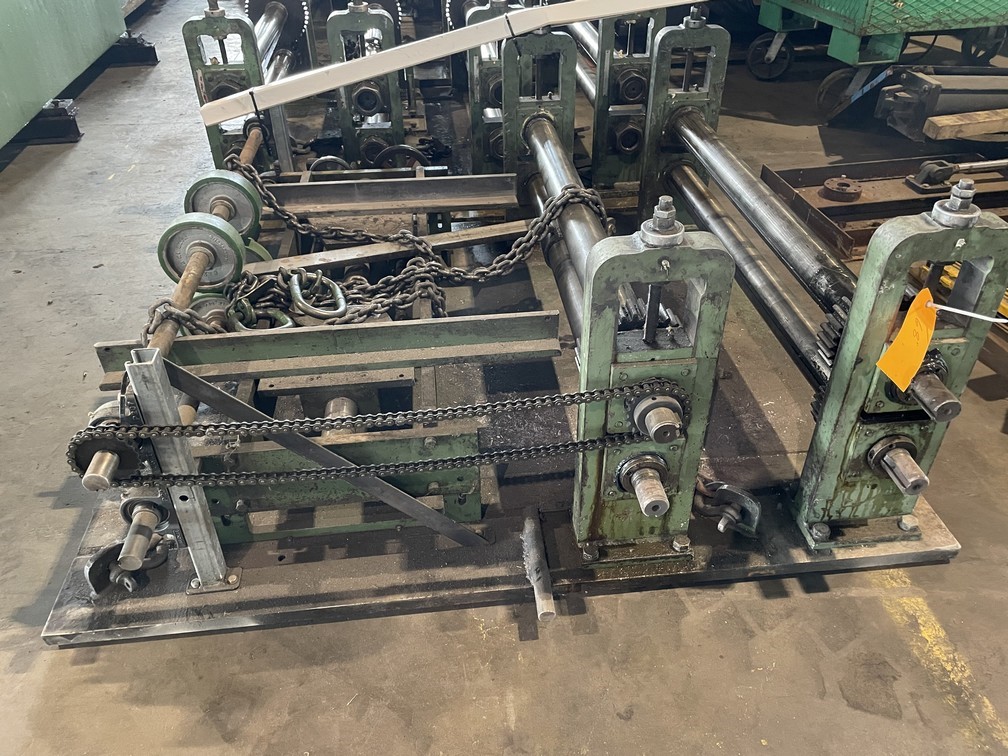

- Raft #1 (Entry)
- Crane Removable
- Powered Feed Rolls
- Manually Adjustable Guide Table
- Two (2) Stands

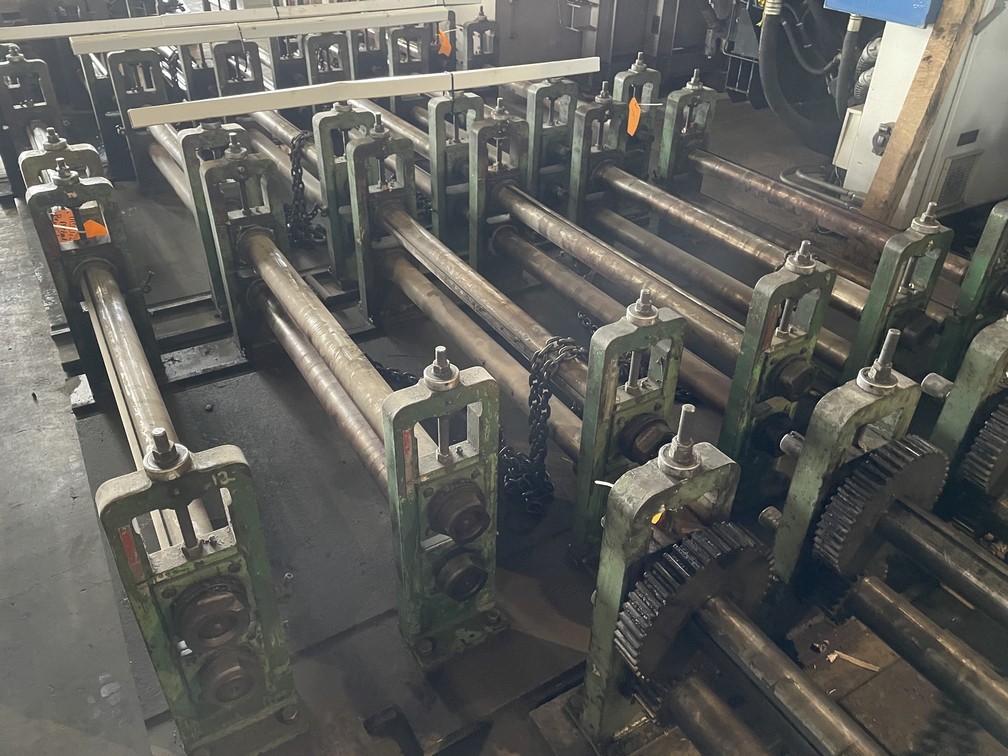

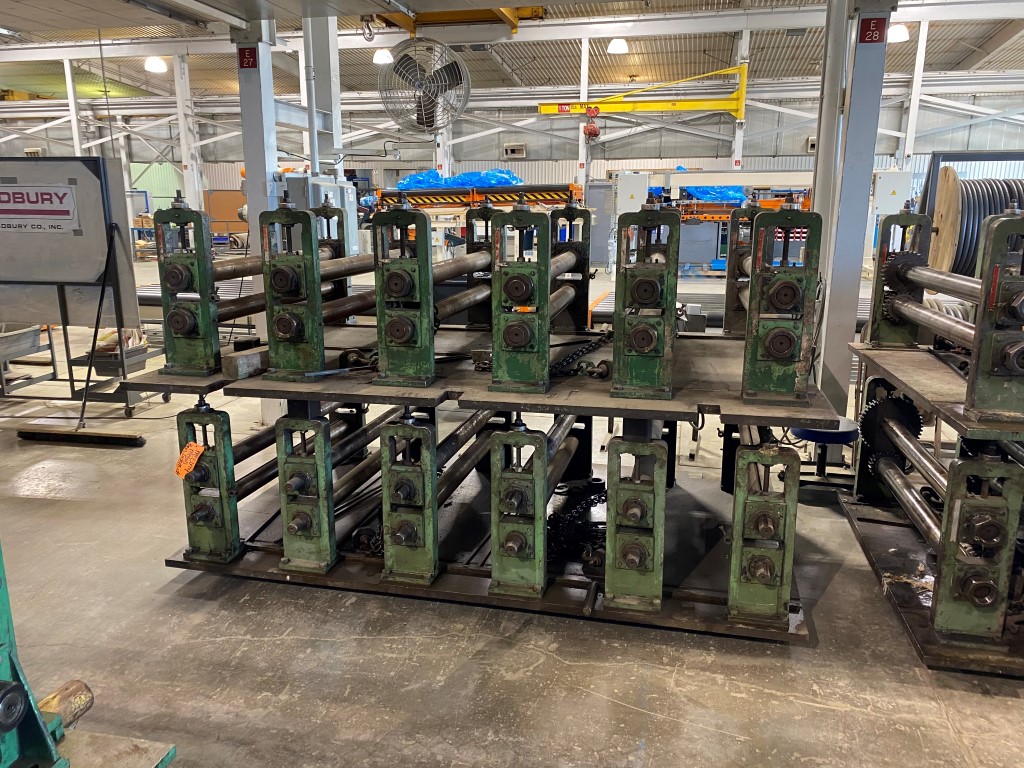

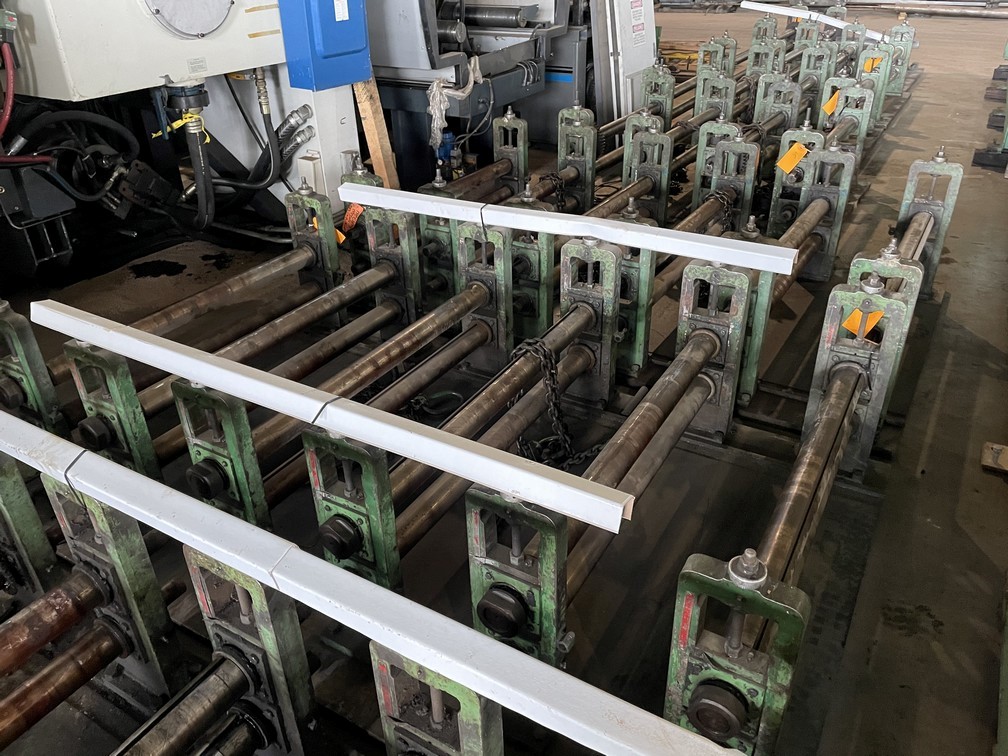

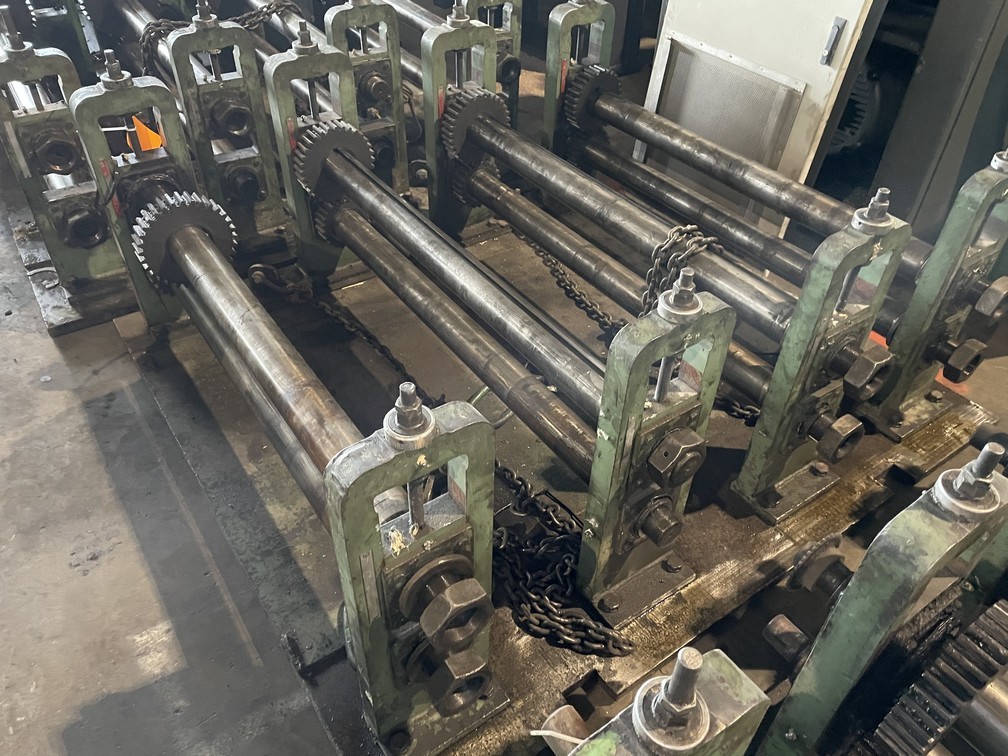

- Raft #2, 3, 4
- Crane Removable
- Three (3) Rafts with six (6) Stands each
- Raft #5, 6, 7
- Crane Removable
- Three (3) Rafts with six (6) Stands each
Comments:
- Mill only, no Uncoiler, Flattener, Cut-off or Electrical Controls included
- I cannot speak for its running condition as it was purchased from storage
- The Roll Former is designed to run up to eighteen (18) passes at one time but a
- total of thirty-two (32) stands on different rafts are included in the sale.
- the Spindle diameter is 3.5"
|
