BORING MILLS, VERTICAL & VTL, CNC & NC

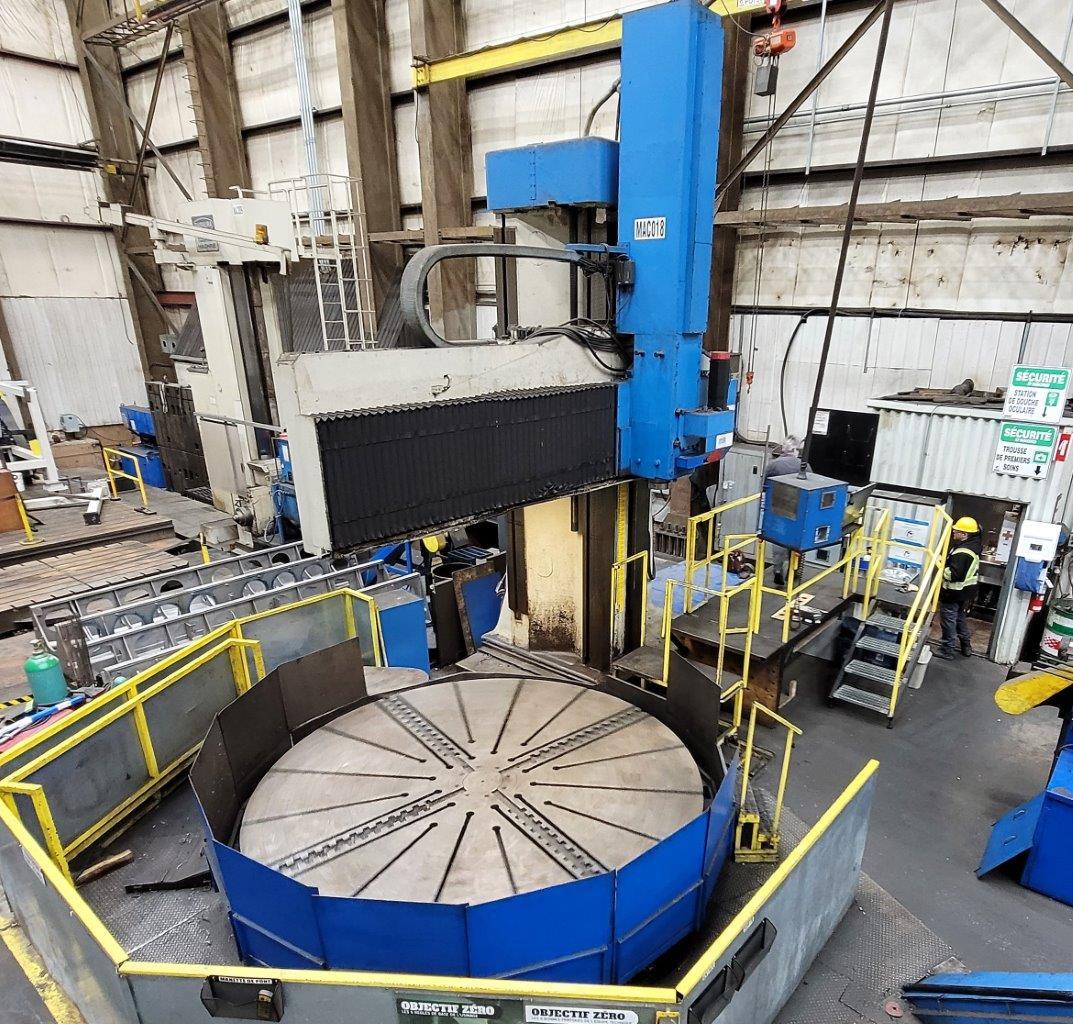

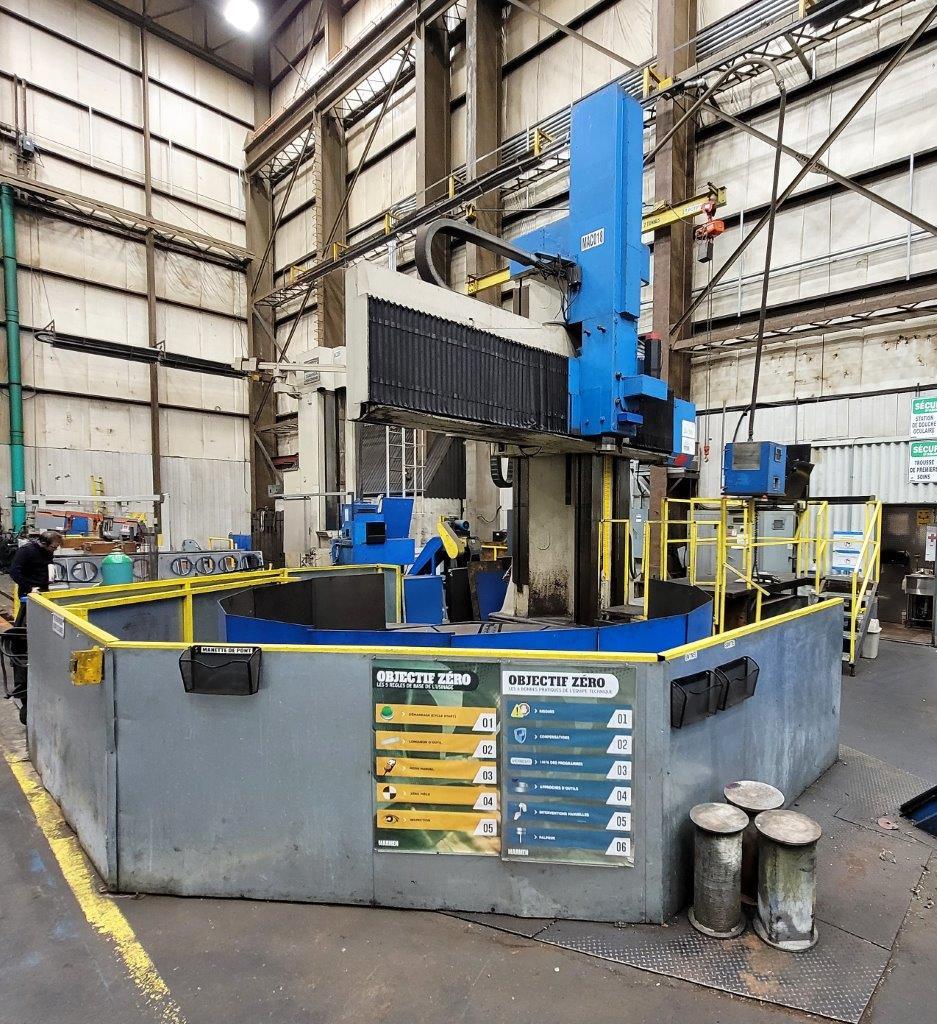

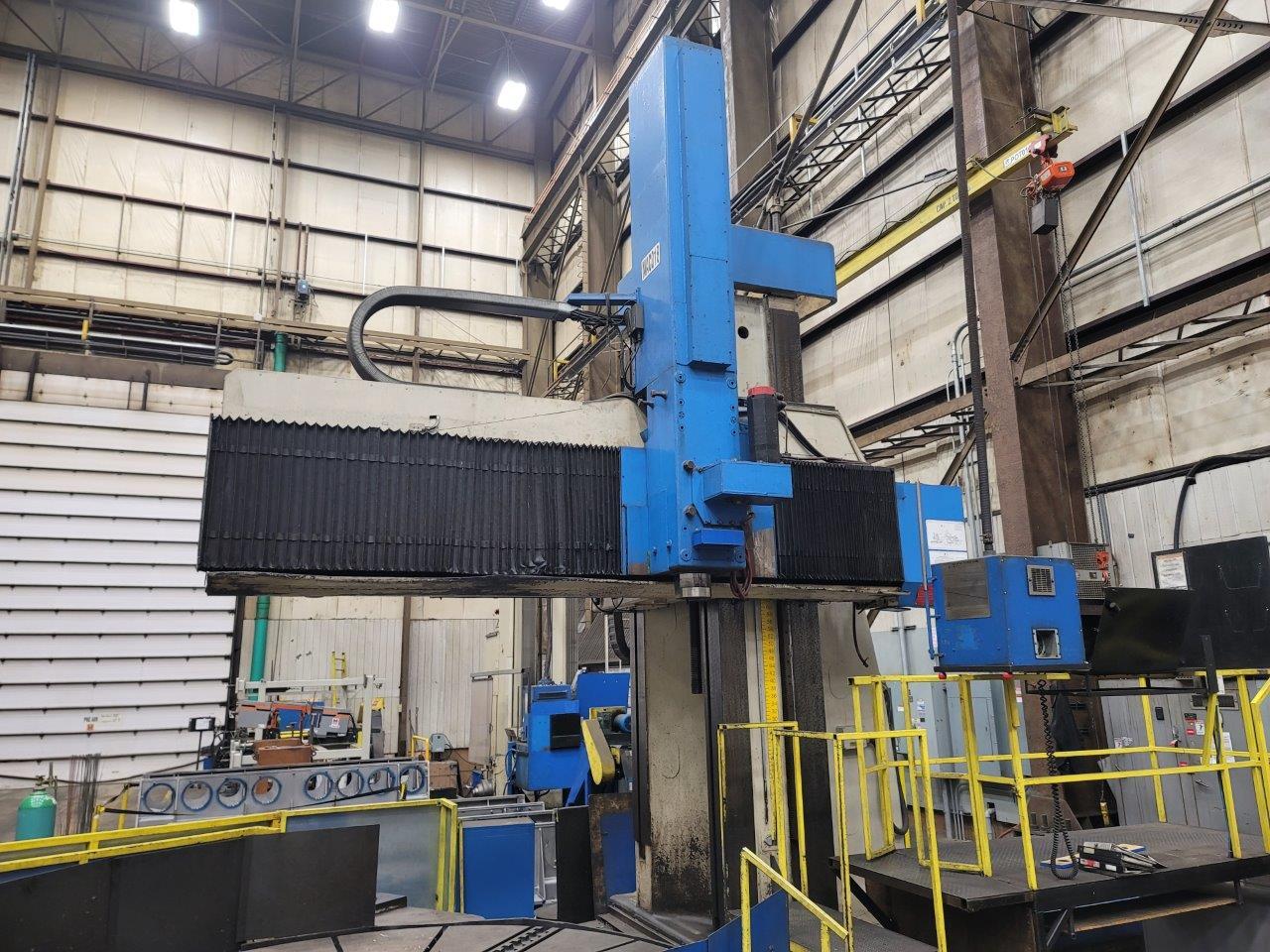

1994 O-M Ltd. LTD TMSI-36-70, Machine # 8340
O-M Ltd. LTD TMSI-36-70, Machine:8340, image:0
OM CNC VTL 11		O-M Ltd. LTD TMSI-36-70, Machine:8340, image:1
OM CNC VTL 3		O-M Ltd. LTD TMSI-36-70, Machine:8340, image:2
OM CNC VTL 6
O-M Ltd. LTD TMSI-36-70, Machine:8340, image:3
OM CNC VTL 5		O-M Ltd. LTD TMSI-36-70, Machine:8340, image:4

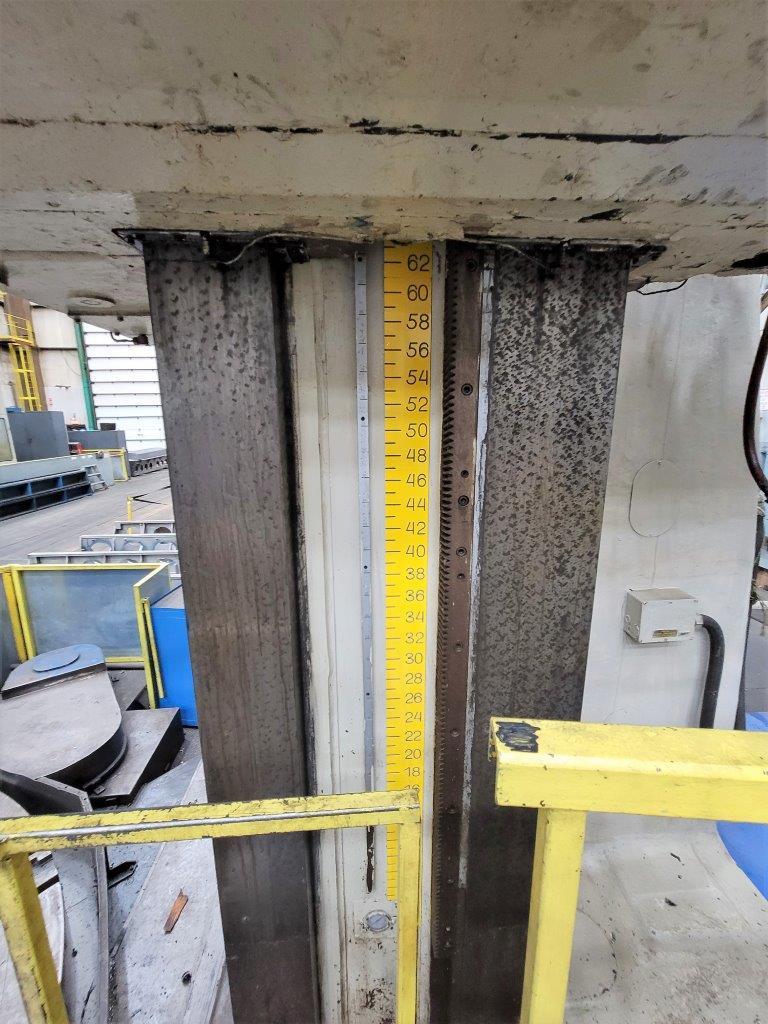

OM CNC VTL 7		O-M Ltd. LTD TMSI-36-70, Machine:8340, image:5
OM CNC VTL 1
O-M Ltd. LTD TMSI-36-70, Machine:8340, image:6
OM CNC VTL 8		O-M Ltd. LTD TMSI-36-70, Machine:8340, image:7
OM CNC VTL 4		O-M Ltd. LTD TMSI-36-70, Machine:8340, image:8
OM CNC VTL 2
O-M Ltd. LTD TMSI-36-70, Machine:8340, image:9
OM CNC VTL 9		O-M Ltd. LTD TMSI-36-70, Machine:8340, image:10
OM CNC VTL 10
Reference #:8340
Machine Type:Vertical Lathes
Year:1994
Manufacturer:O-M Ltd.
Model:LTD TMSI-36-70
Control:Fanuc 16TA
Condition:Used - Very Good
Under Power:No
Code:B6200

Capacity:

  • Table Diameter: 141.73"
  • Maximum Swing: 275.62"
  • Maximum Height Under Rail: 114..17"
  • Maximum Table Weight Capacity: 100,000 lb

Spindle:

  • Speeds: 40 RPM
  • Motor: 50 HP

Head(s):

  • Number of Heads (cnc controlled): One
  • Type Head(s): Octagonal

Travels:

  • X-Axis (Cross): 100"
  • Y-Axis (Vertical): 59.05"

Equipped With:

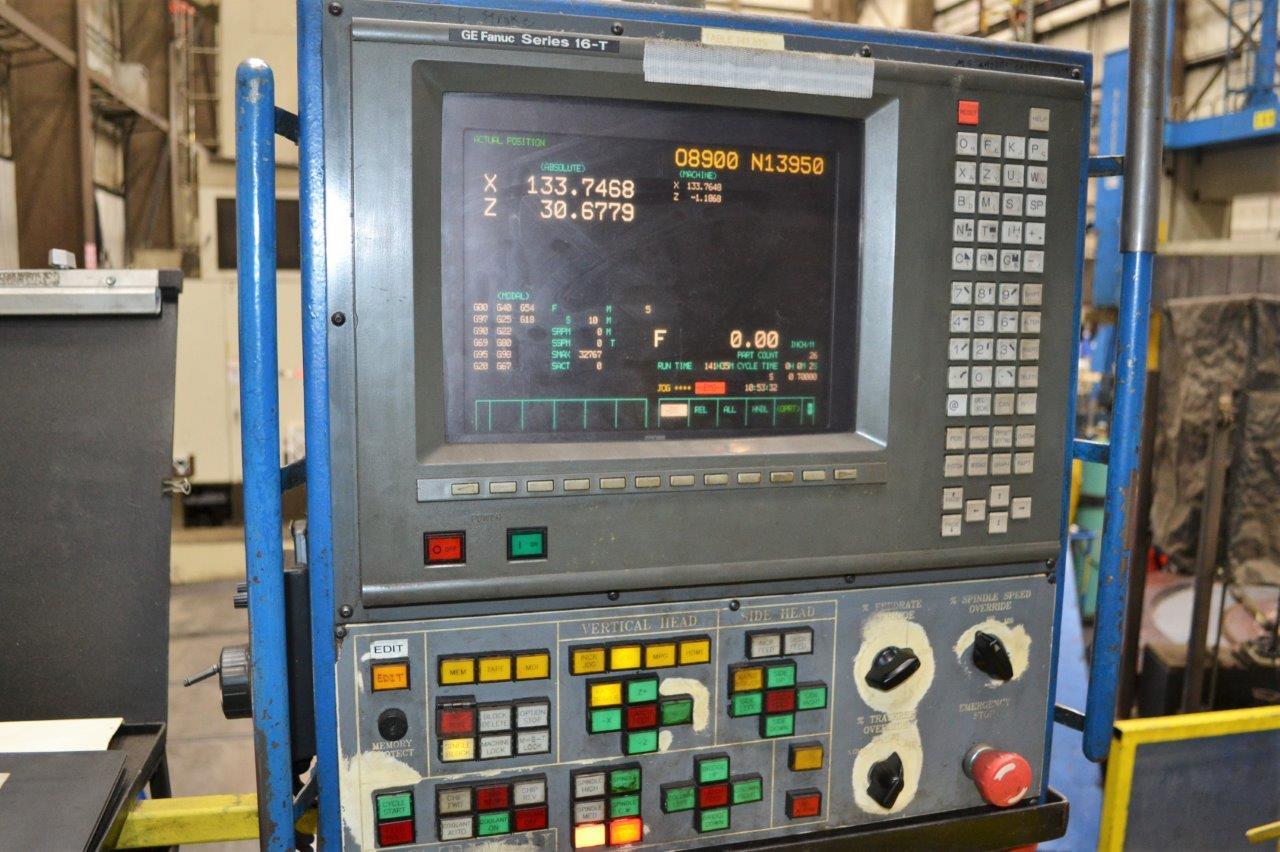

  • Fanuc 16T-A CNC Controls (Retrofit 1994)

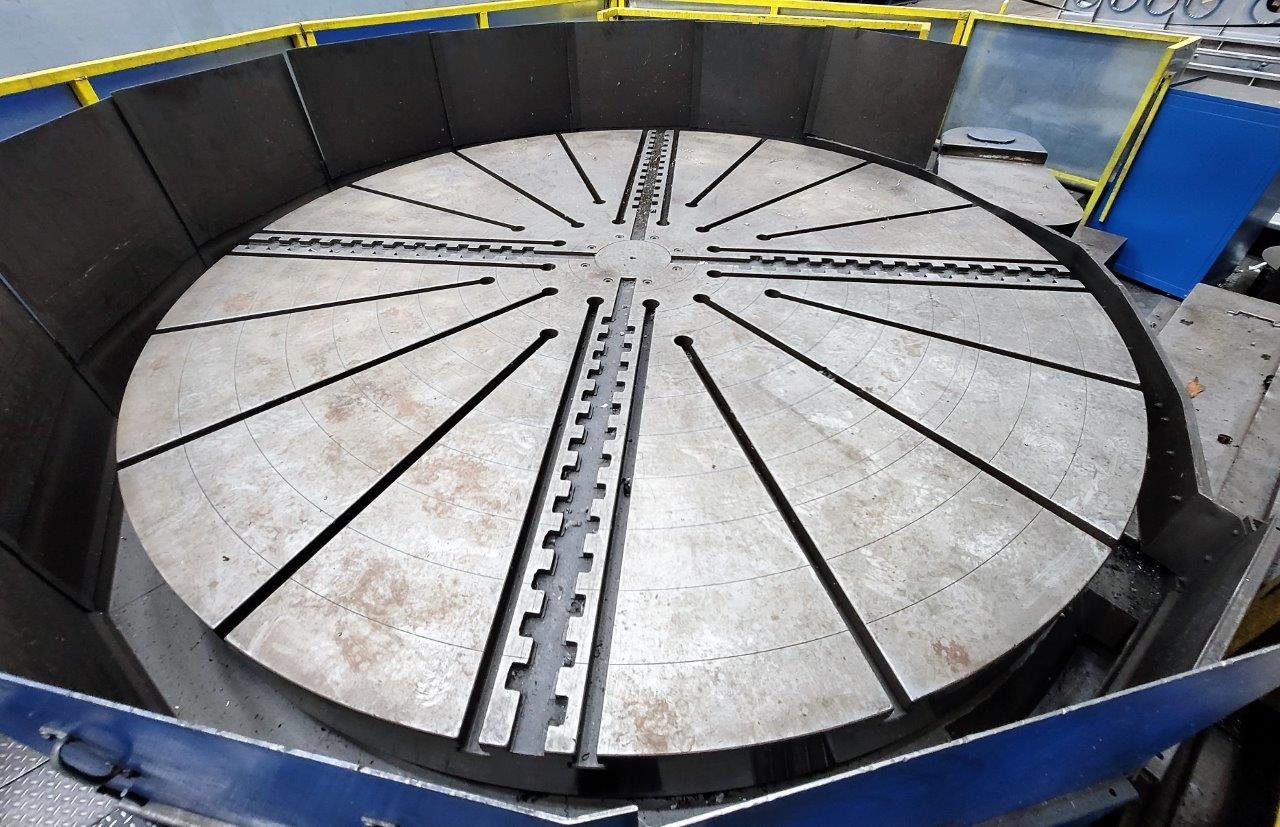

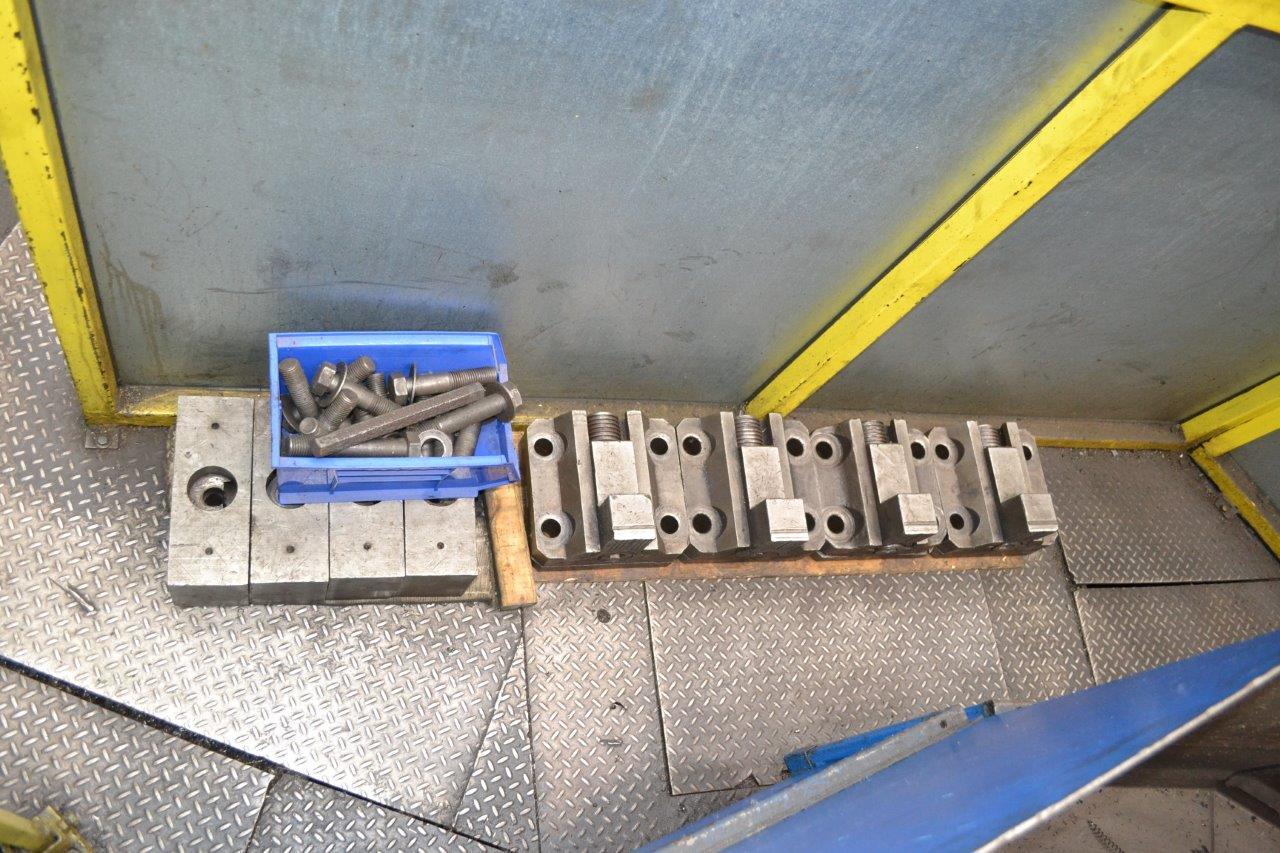

  • 141.73" T-Slotted Table with 4-Top Jaws

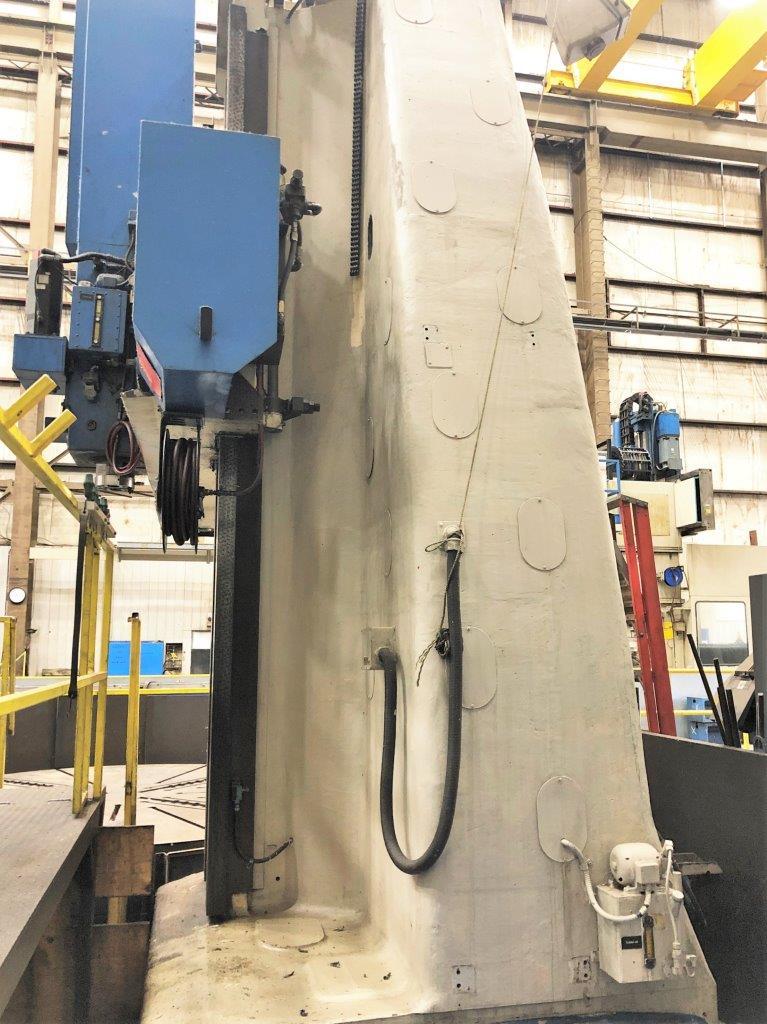

  • Openside Adjustable Column

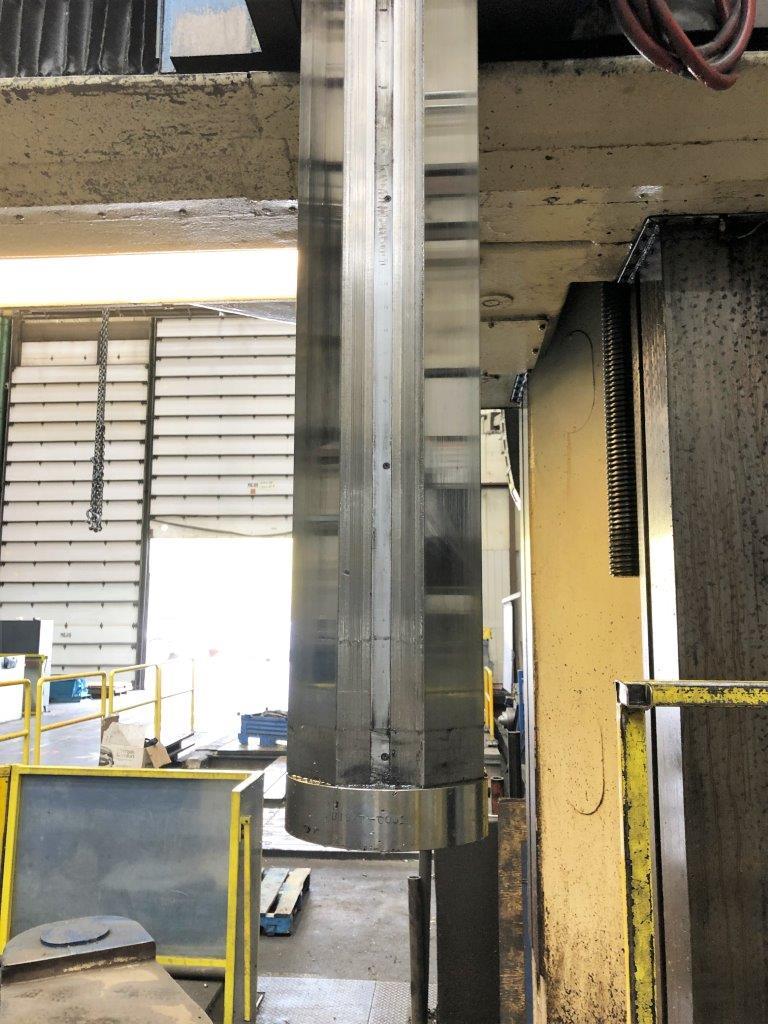

  • Vertical Octagonal Ram on Cross Rail
  • Coolant
  • Chip Guards

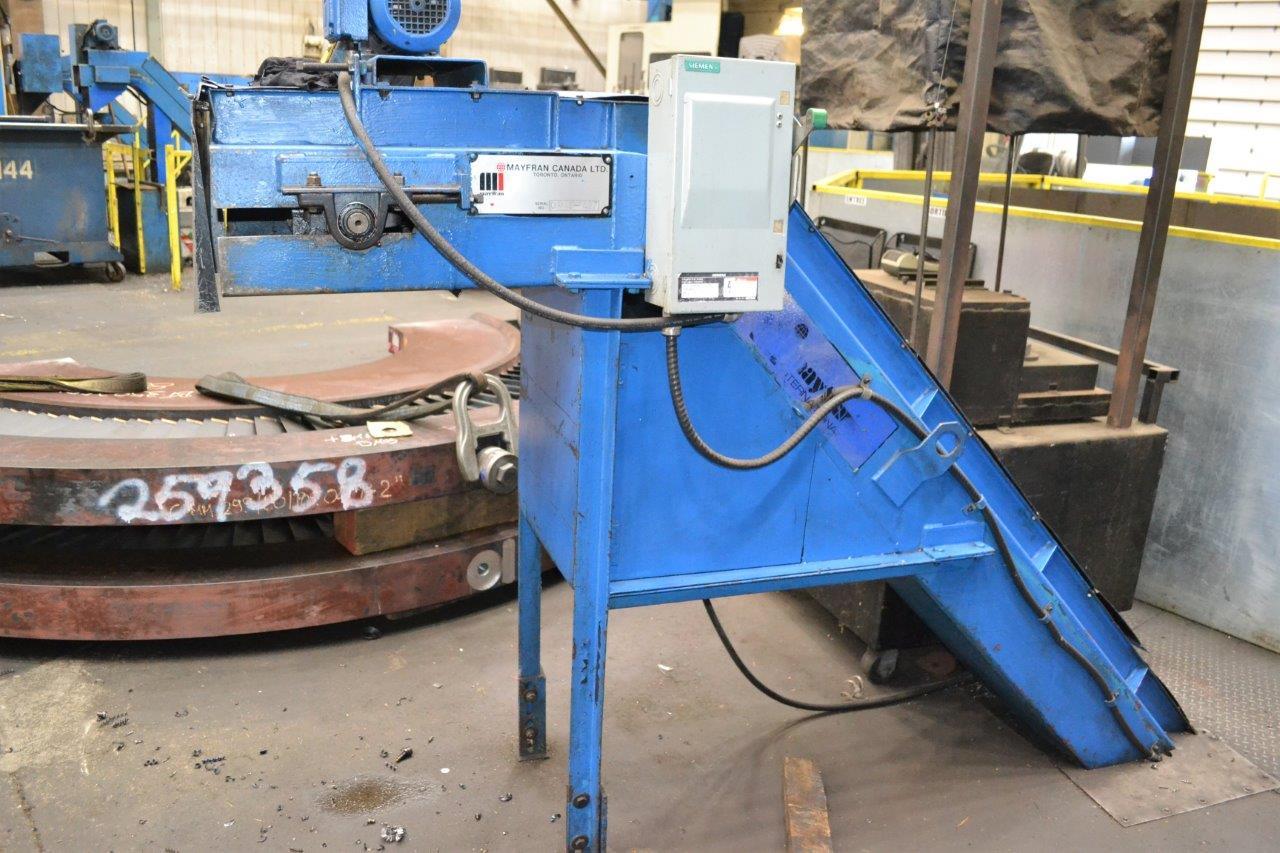

  • Mayfran Chip Conveyor
  • 50 HP Main Motor

Comments:

  • Machine was removed from power but a video of it under power is available.
