Specifications:
- Max. Coil With: 48"
- Matierials: Painted, Galvanized
- Thickness Range: .017 - .035"
- Max. Yield: 80,000 PSI
- Line Direction: Right to Left
- Arbor Diameter: 4"
- Horizontal Centers: 18"

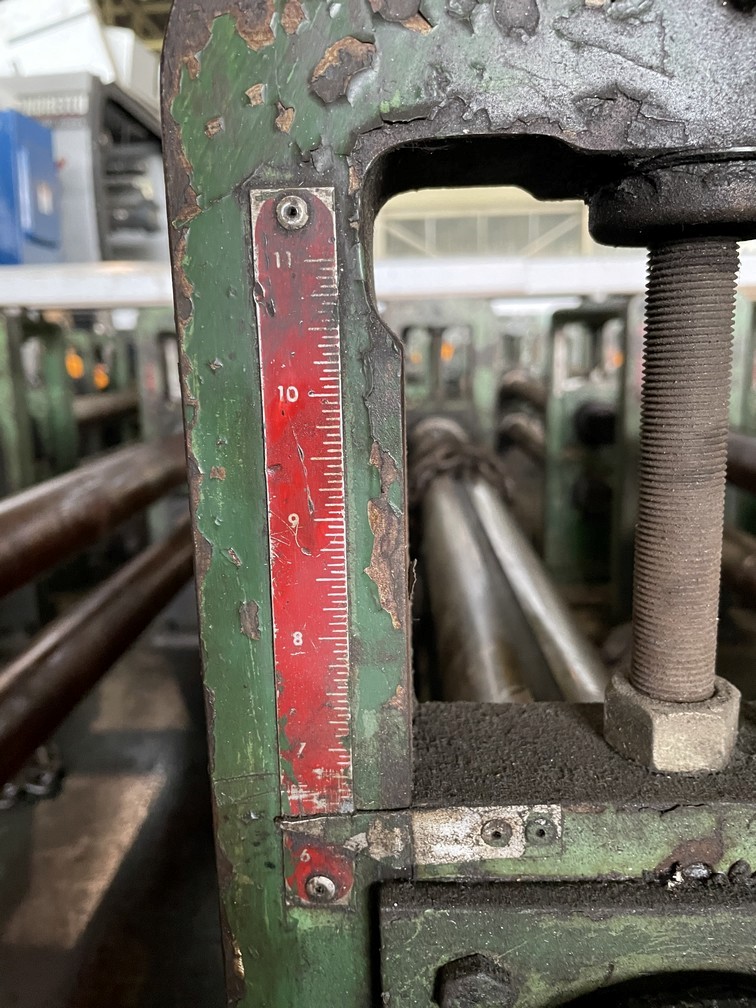

- Vertical Adjustment: 6" - 11"
- Line Speed: 0 - 120 FPM
- Dimensions: 130" W x 359" L

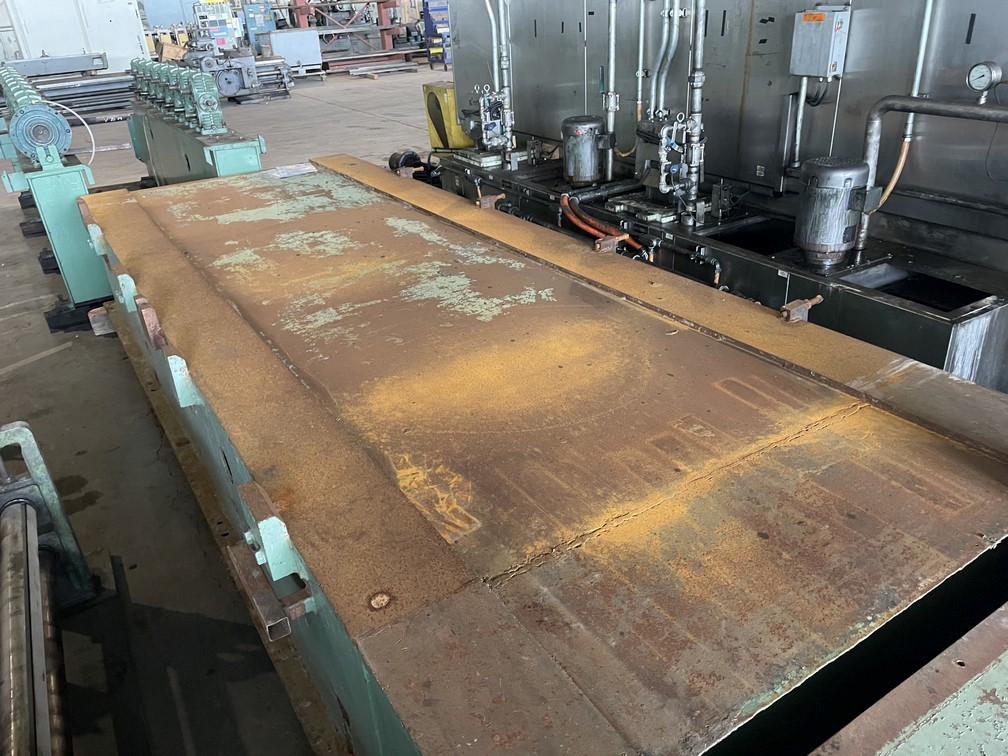

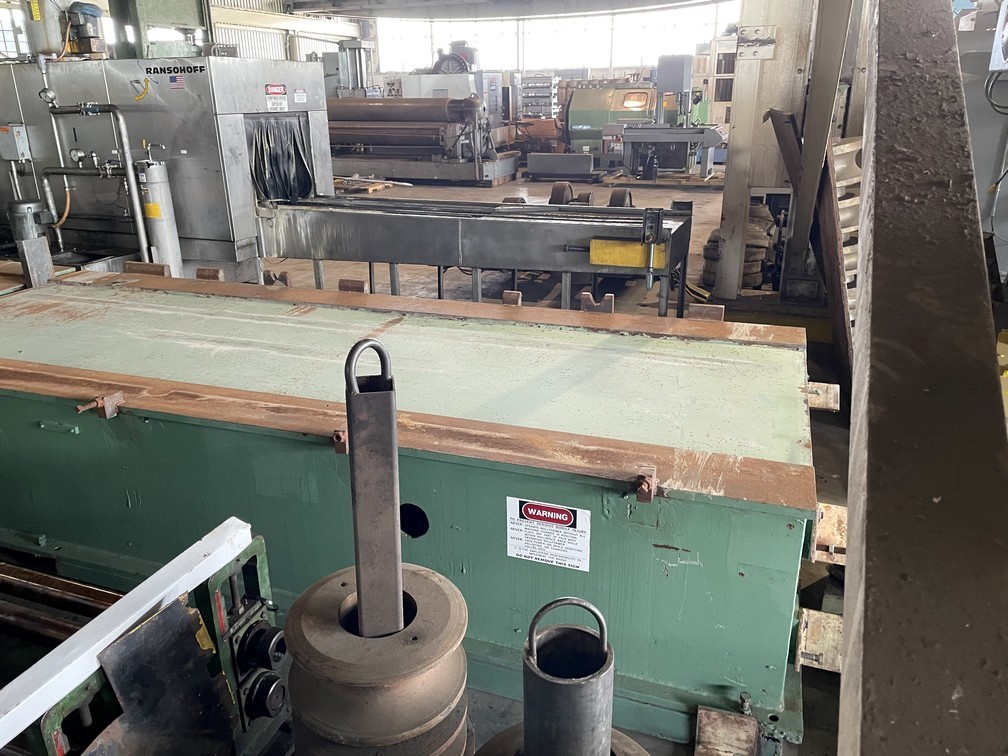

- Roll Former Base #1: 64" W x 178" L
- Roll Former Base #2: 64" W x 160" L

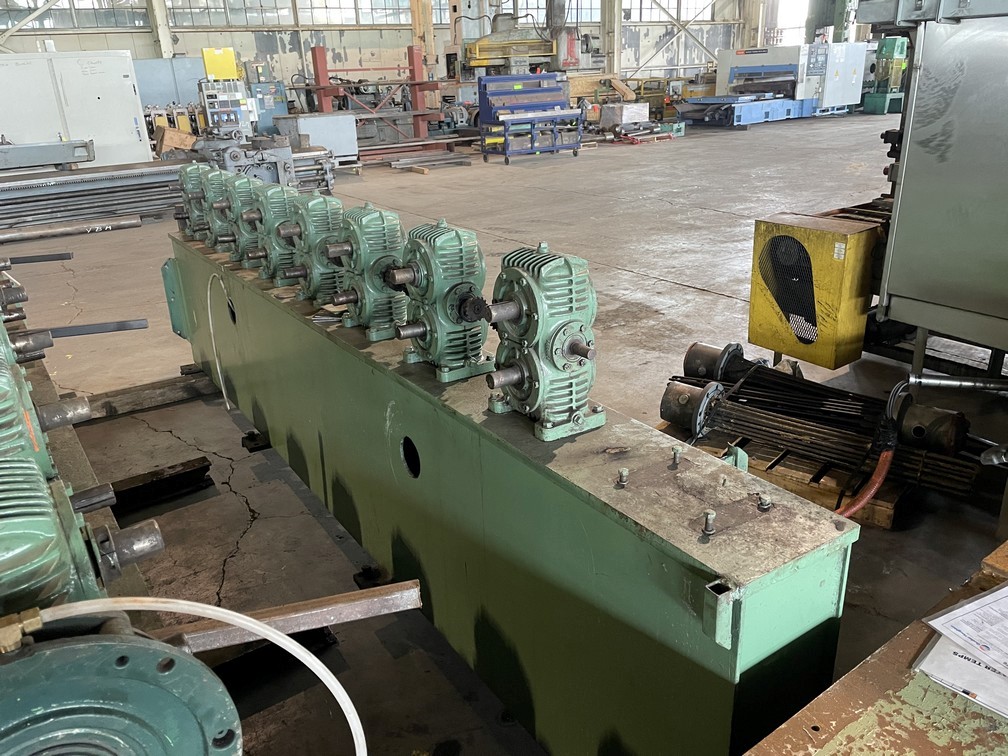

Gearbix Assem 1
- Passes: Nine (9)
- Motor Electrics: DC

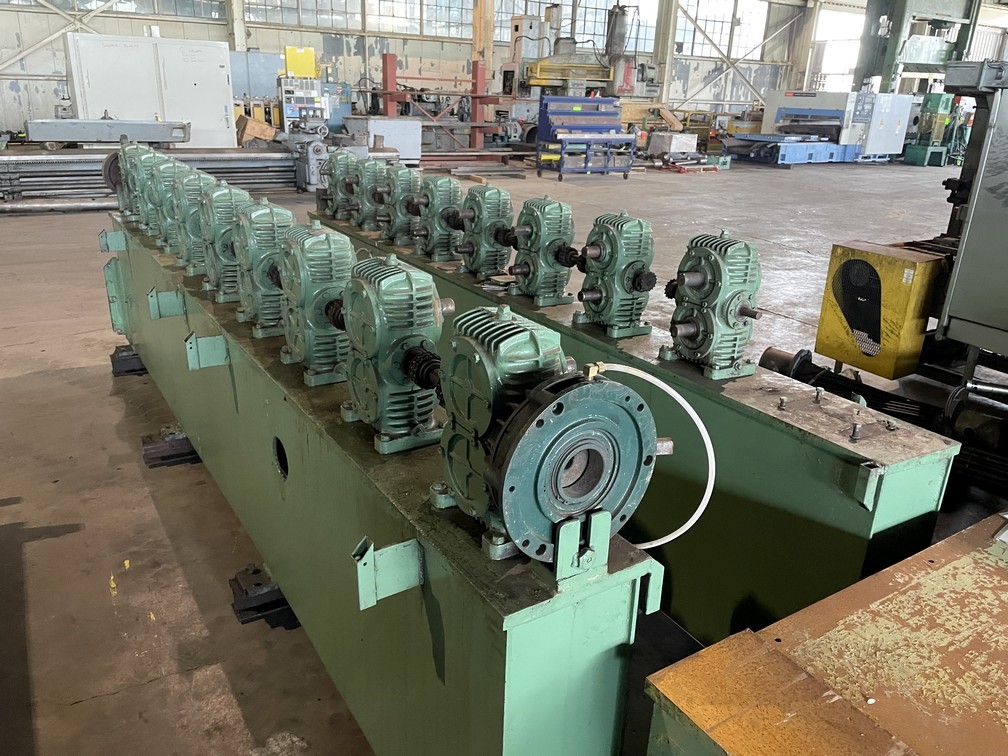

Gearbix Assem 2

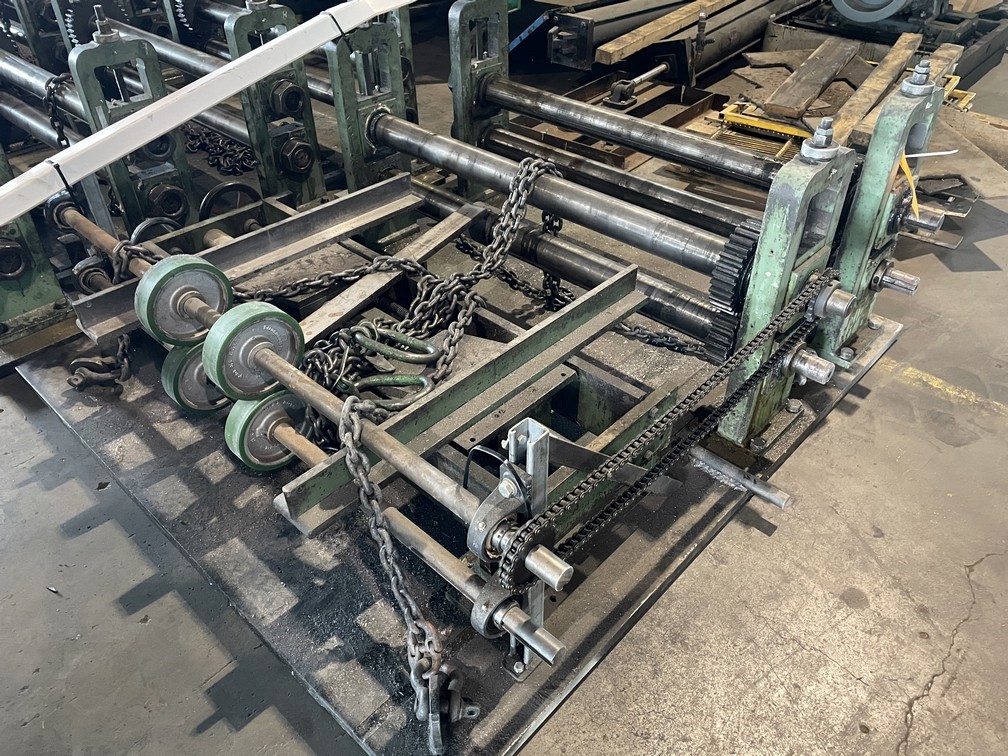

Raft #1 (Entry):
- Crane Removable
- Powered Feed Rolls
- Manually Adjustable Guide Table
- Two (2) Stands

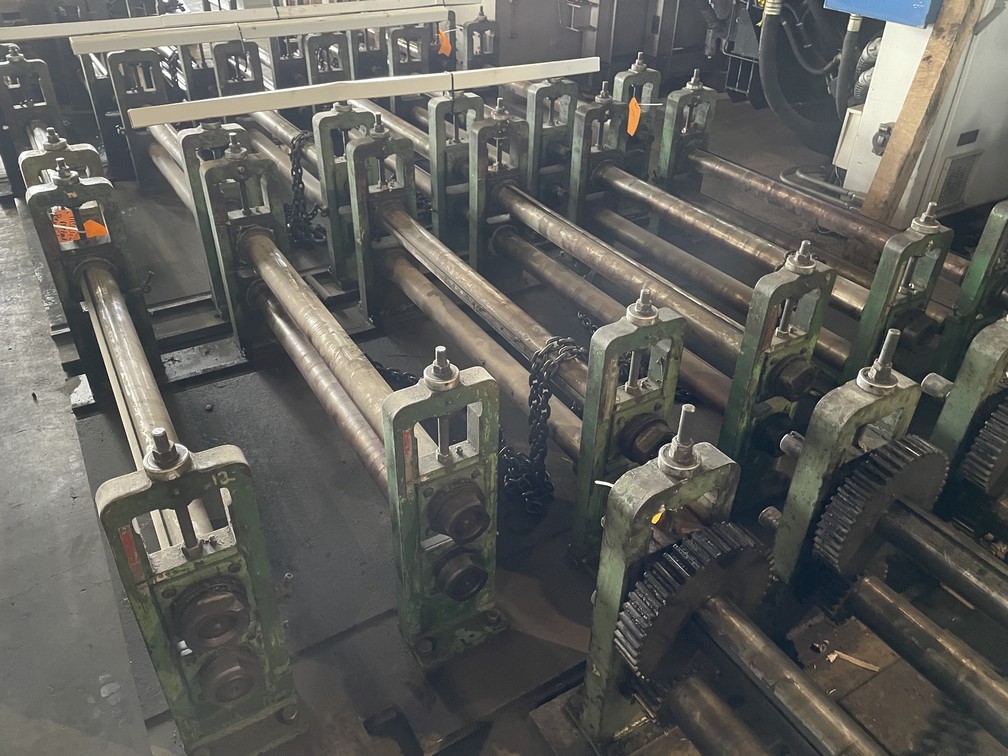

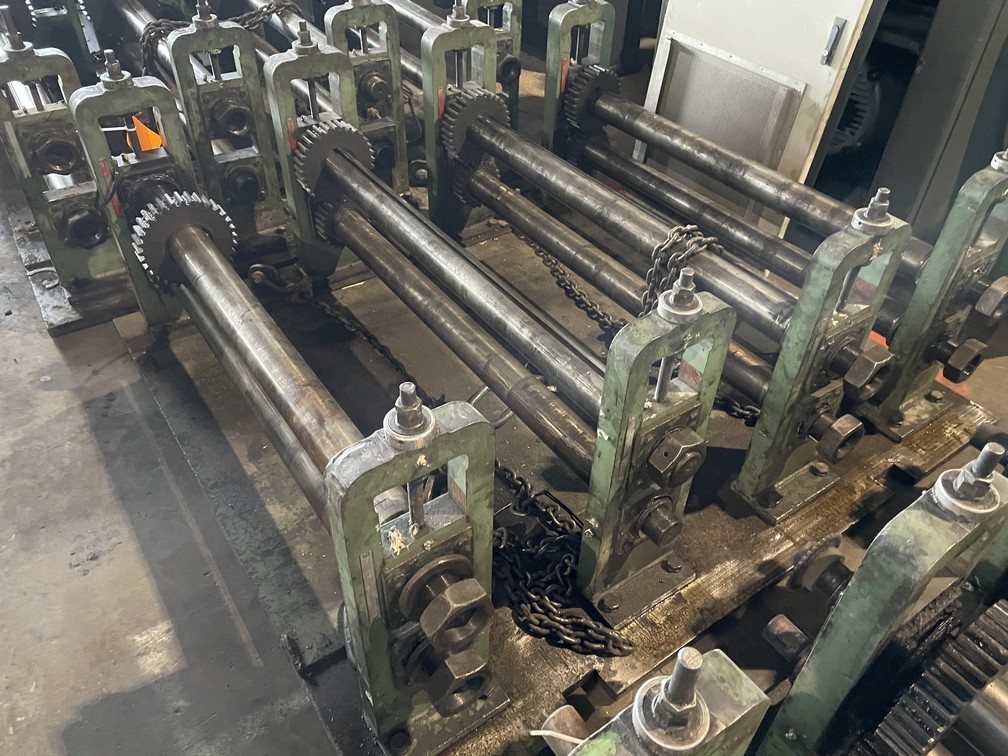

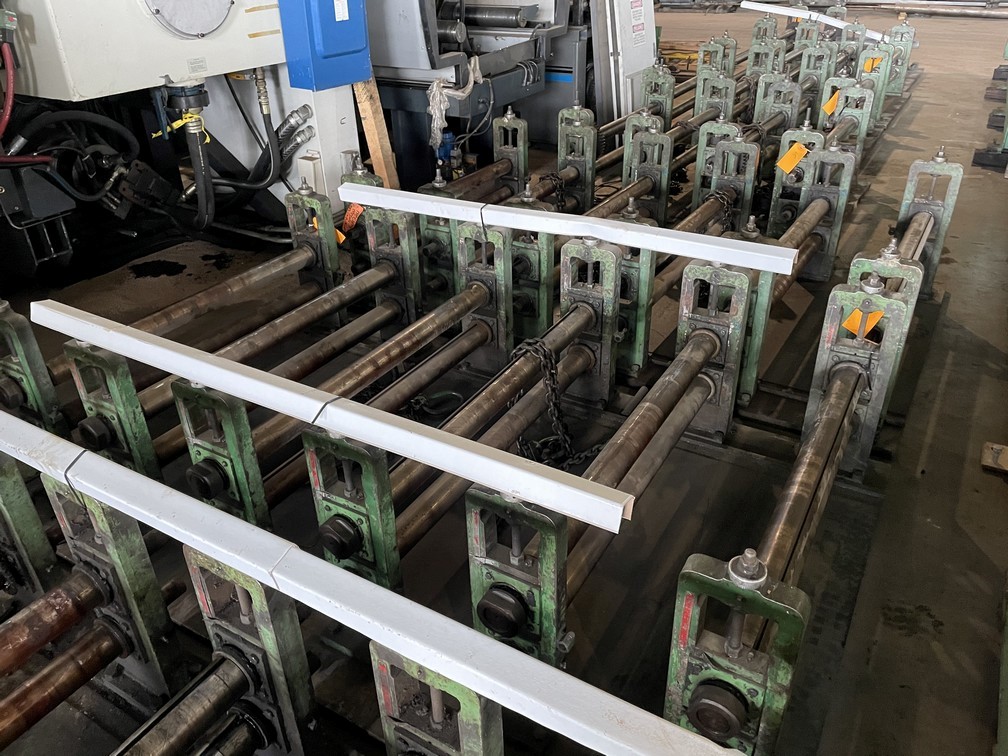

Raft #2, 3, 4:
- Crane Removable
- Three (3) Rafts with four (4) Stands each

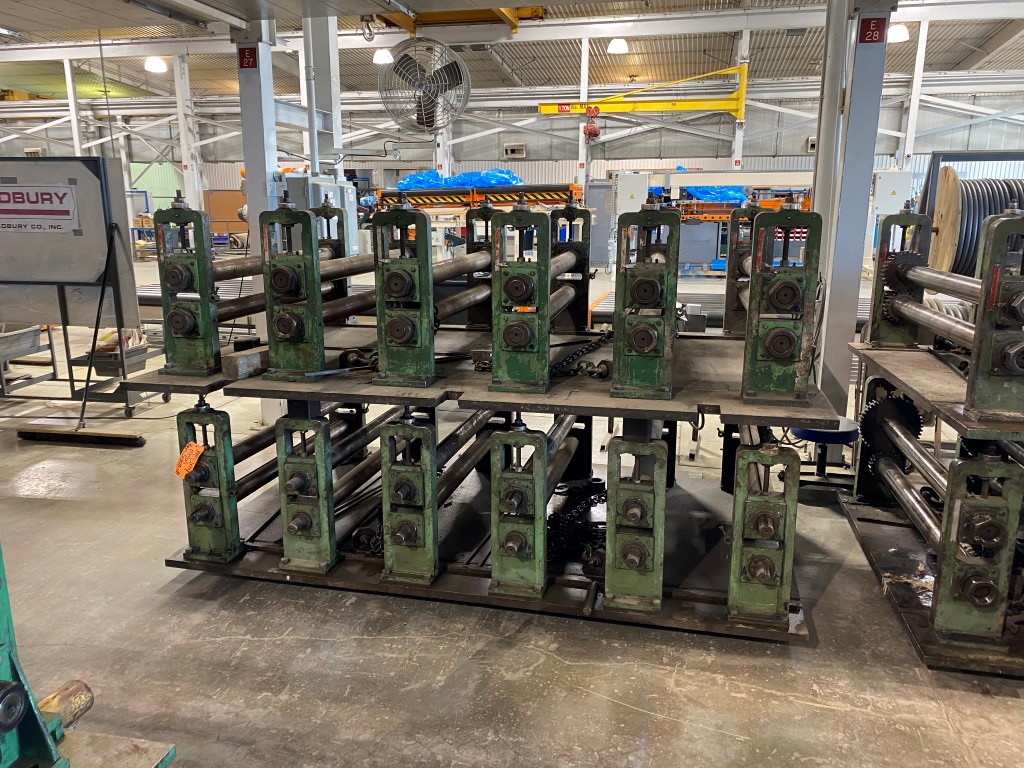

Raft #5, 6, 7:
- Crane Removable
- Three (3) Rafts with six (6) Stands each
Comments:
- The Tooling space is 48" wide but there is no Tooling included
- The owner thinks there are a total of 32 Stands and you can use 18 at one time
- without building more bases.
- The Roll Former is in storage in Toledo, Ohio if you want to go look at it.
- *Mill only, no Uncoiler, Flattener, Cut-off or Electrical Controls included
|
