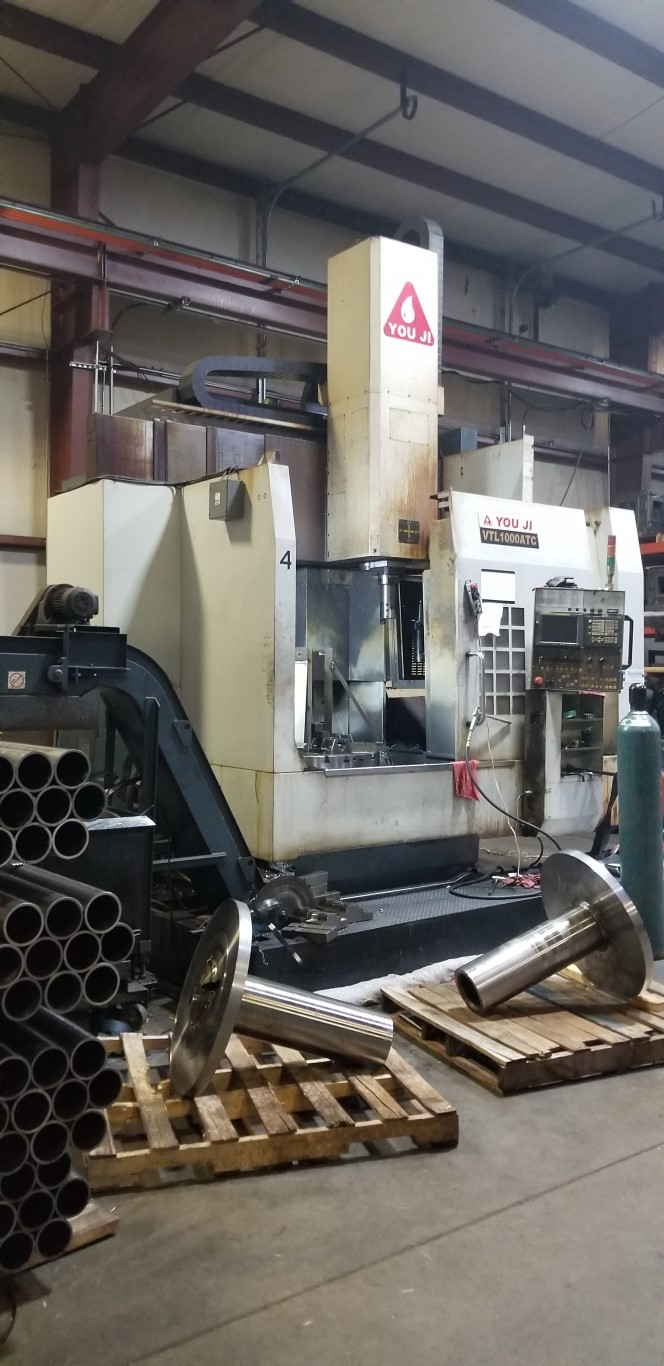

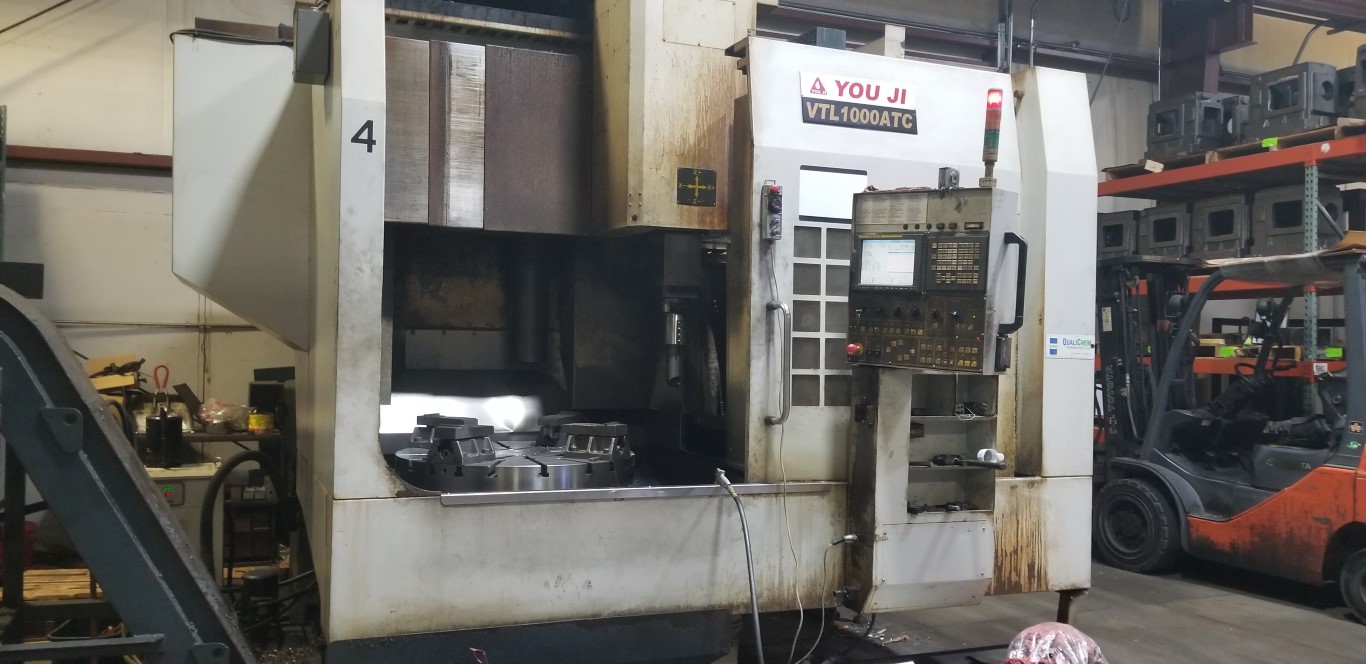

2009 YOU JI VTL-1000ATC, Machine # 8910

Capacity:

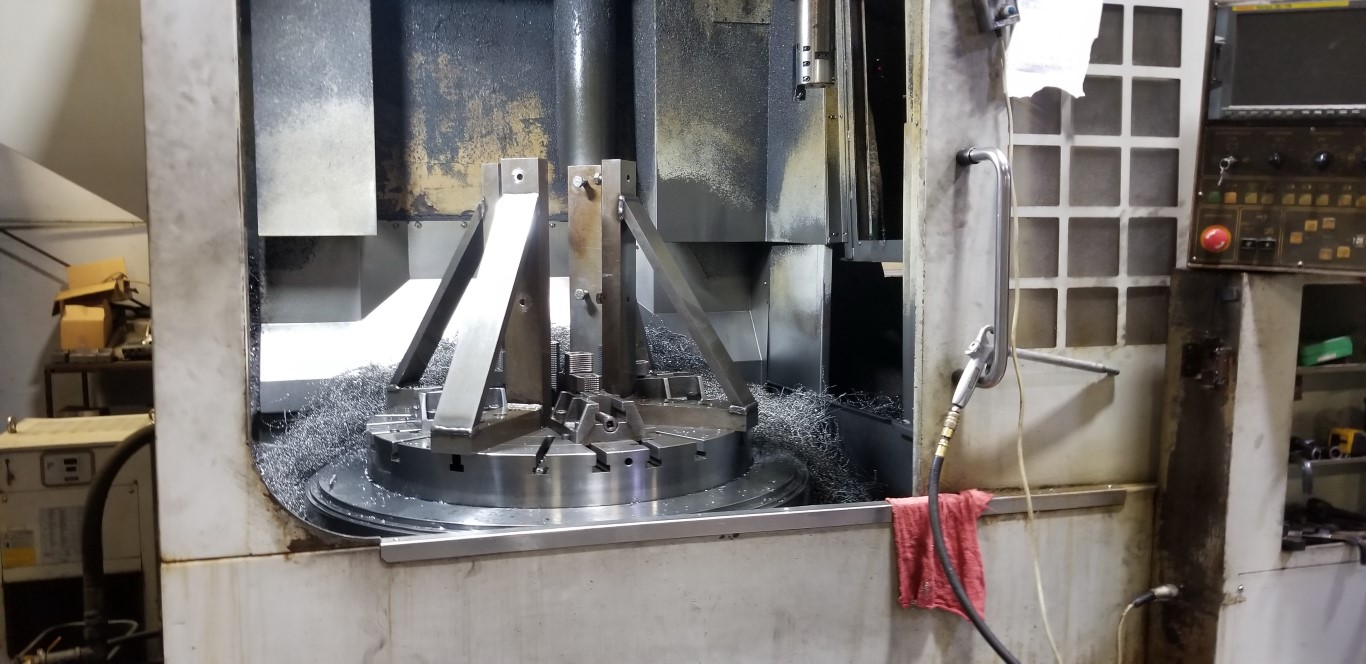

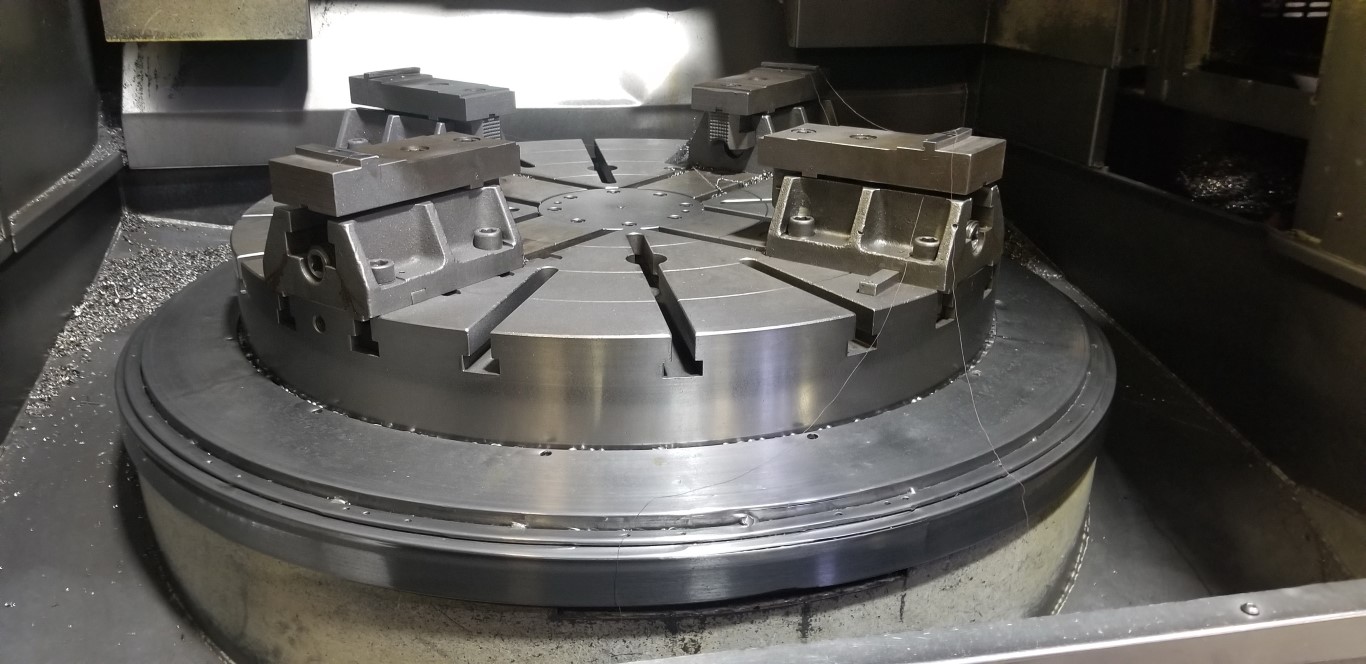

• Table diameter: 39.3"
• Max. swing: 53.1"
• Max. cutting diameter: 43.3"
• Max. cutting height: 35.4"
• Max. Table Load: 8820 Lbs

Travel:

• Horizontal travel of rail head (X-axis): -15.7", 28.3"
• Vertical travel of ram (Z-axis): 31.49"
• Vertical travel of crossrail: 19.6"

Spindle:

• Table speed (Low): 1 - 160 rpm
• Table speed (High): 160 - 600 rpm

Feed Rate:

• Rapid traverse of rail head (X-axis): 472 IPM
• Rapid traverse of ram (Z-axis): 393 IPM
• Cutting feed rate: 0.393 - 78.7 IPR
• Manual feeder rate: 0 - .236 ipm

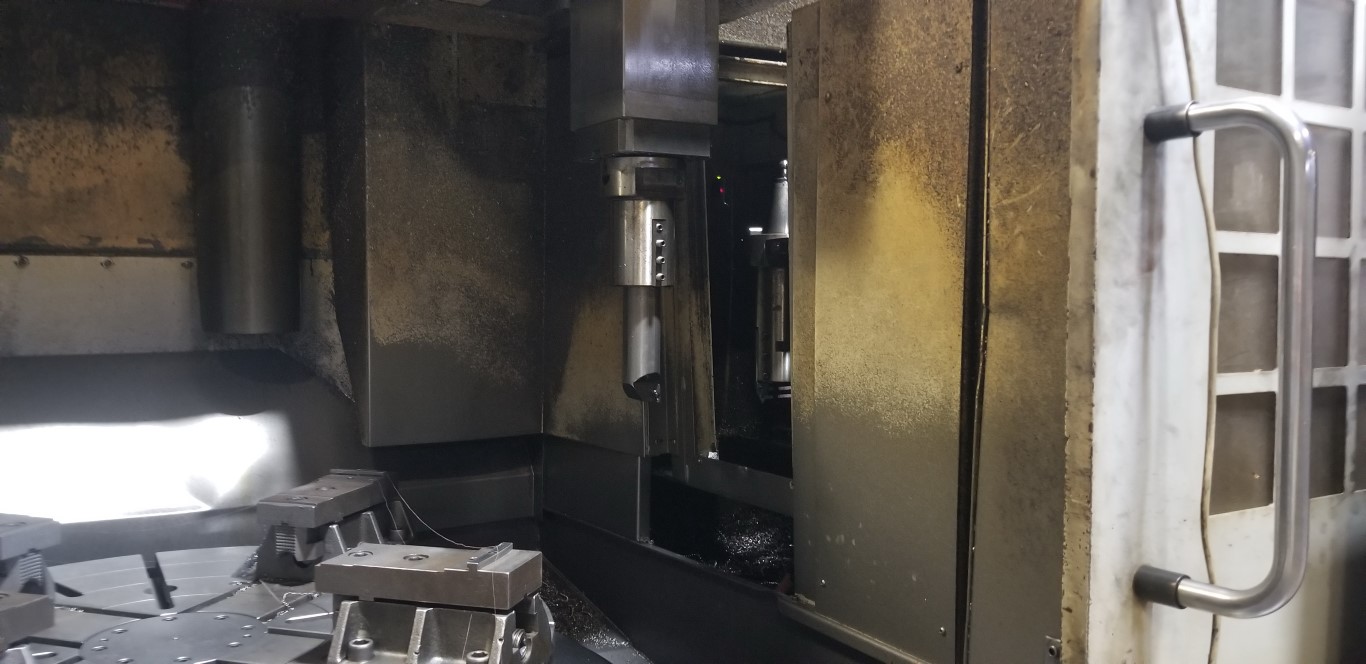

Tooling:

• Turret (ATC) type: 12 Tools
• Type of tool shank: 7/24 taper BT-50
• Max. of tool size for automatic tool changing: 11.8"
• Max. tool weight: 110 Lbs
• Max. loading of ATC: 1323 Lbs
• Tool change time(ATC): 40 Seconds

Motors:

• Spindle drive motor: 49.6 / 60 HP
• X-axis servo motor: 9.3 HP
• Z-axis servo motor: 8 HP

Power Sources:

• Power Capacity: 80 kVA
• Floor Dimensions: 182" x 151"
• Machine Weight: 68,355 Lbs

Equipped With:

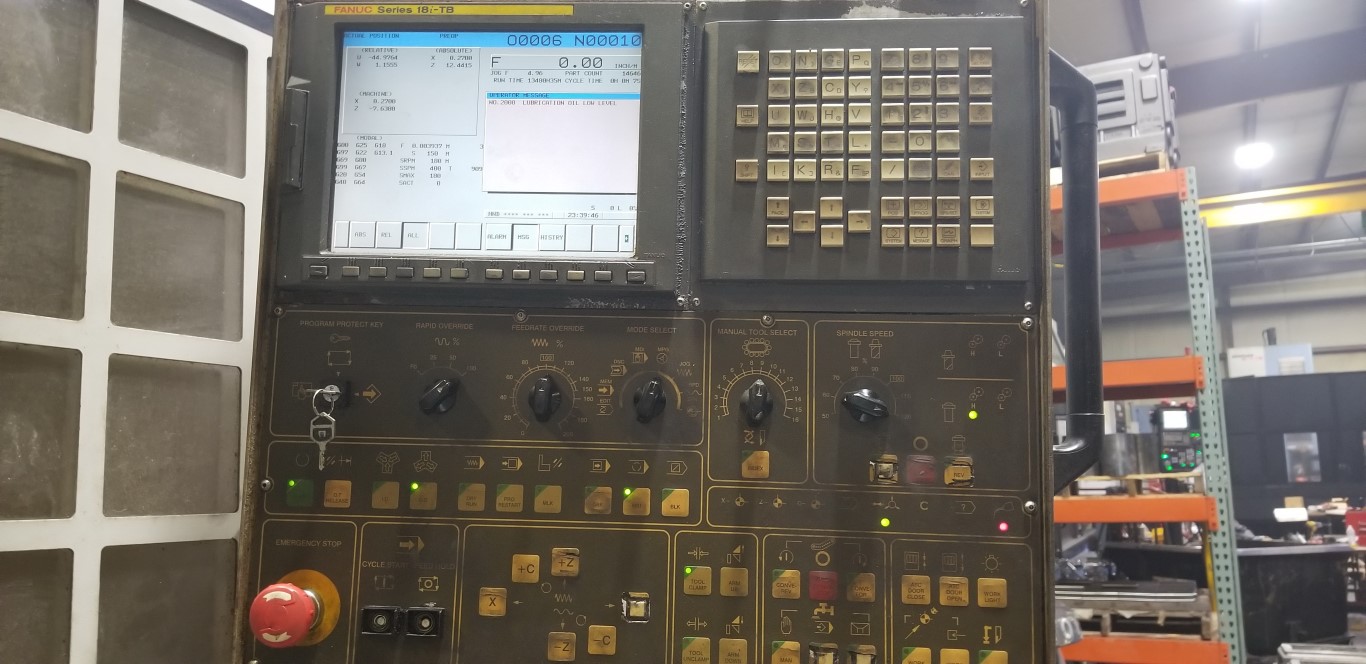

• Fanuc 18iTB with manual guide I option
• Manual guide I option
