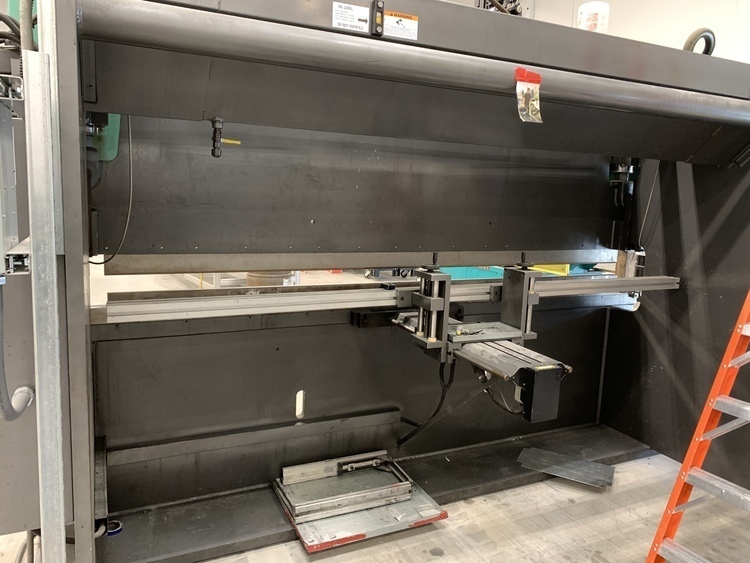

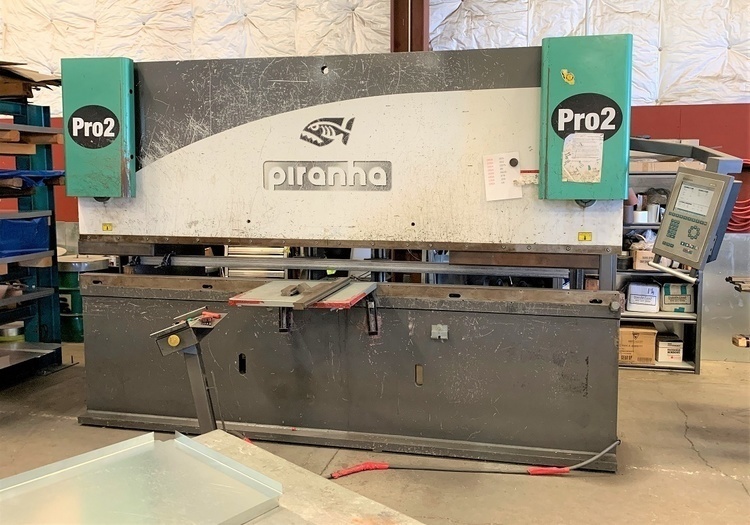

2006 Piranha Pro-2 100 Ton x 12 Ft CNC Hydraulic Press Brake, Machine # 8759

Piranha Pro-2 100 Ton x 12 Ft CNC Hydraulic Press Brake - 4	Piranha Pro-2 100 Ton x 12 Ft CNC Hydraulic Press Brake - 1	Piranha Pro-2 100 Ton x 12 Ft CNC Hydraulic Press Brake - 2
Piranha Pro-2 100 Ton x 12 Ft CNC Hydraulic Press Brake - 5	Piranha Pro-2 100 Ton x 12 Ft CNC Hydraulic Press Brake - 3

Reference #:	8759
Machine Type:	Press Brakes
Year:	2006
Manufacturer:	Piranha
Model:	Pro-2 100 Ton x 12 Ft CNC Hydraulic Press Brake

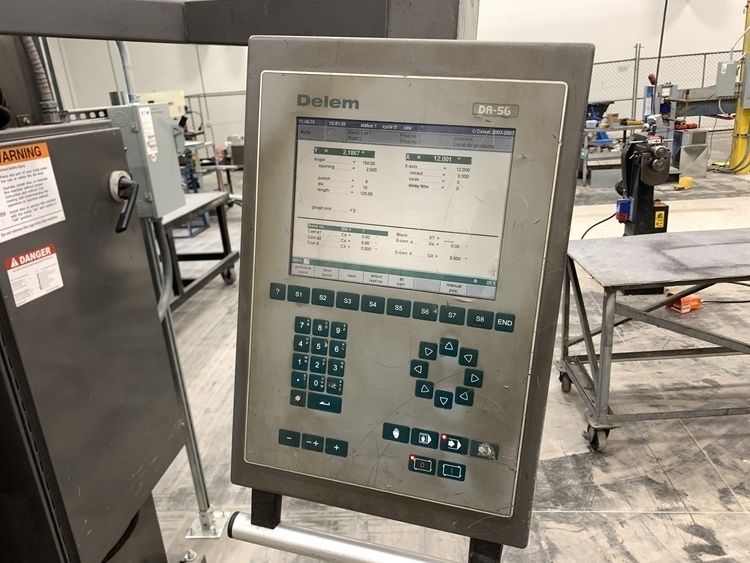

Control:	Delem
Condition:	Used
Under Power:	Yes
Code:	B7335

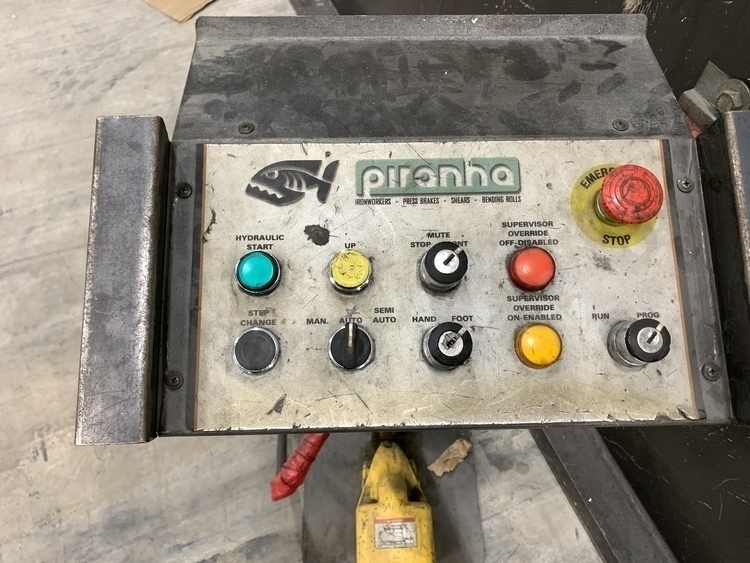

Capacity: Tonnage: 100 Tons Bed Length: 144" Dist. Between Housings: 124" Stroke: 8" Ram Speed (approach, Bend, Return): 210 / 25 / 225 Open Height: 8" Throat Depth: 10" Main Motor HP: 20 HP/ 240/480/60 Closed Height: 6" Equipped With: Delem CNC Control/Back Gauge Y1, Y2 Ram Positioning Sectional Ram Clamps Electric Foot Switch / Palm Button Station Tooling: P2 Punch 1" 2 @ 125" Variety of sectional P3 Die 1/2" 2 @ 121 3/8" Variety of sectional P3 Die 3/4" 1 @ 125" Variety of sectional P4B Punch 1 1/2" 1 @ 50" P36 Die 2" 1 @ 122" P36 Die 2" 1 @ 122" 1 @34 3/4" P5 Die 3" 1 @ 50" P5 Die 2" 1 @ 50"
