LATHES, SPINNING

1989 Autospin 3-Axis 2-Roller, Machine # 7802

Autospin 3-Axis 2-Roller, Machine:7802, image:0

Autospin 3-Axis 2-Roller Spin Forming Machine - 1

Autospin 3-Axis 2-Roller, Machine:7802, image:1

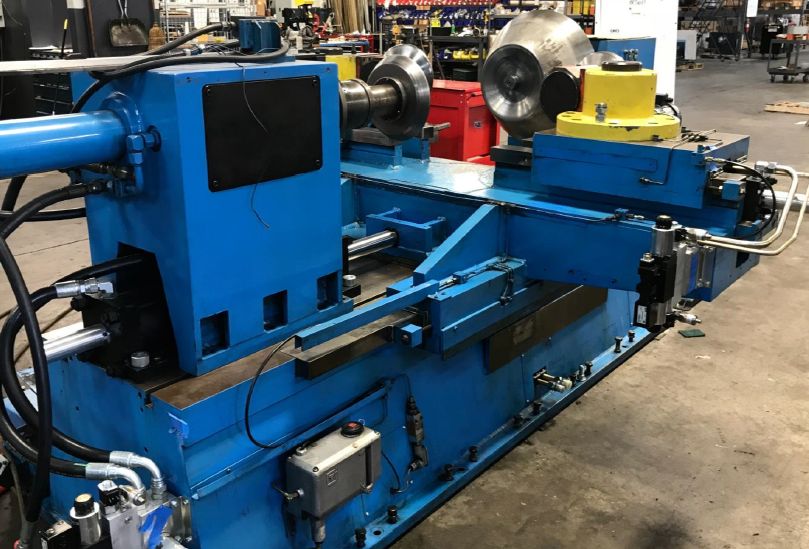

Autospin 3-Axis 2-Roller Spin Forming Machine - 2

Reference #:	7802
Machine Type:	Engine Lathes
Year:	1989
Manufacturer:	Autospin
Model:	3-Axis 2-Roller
Control:
Condition:	Used
Code:	L5007
Specifications: Hydraulic: 65 HP DC Drive Motor: 50 HP Center Height: 24" Y-Slide: 24" Y-Slide Power: 70,000 Lbs X1-Slide Stroke: 10" X2-Slide Stroke: 10" X1-X2-Slide Power: 25,000 Lbs Equipped With: Ejector New Electrical Cabinet New 50 HP DC Drive New Siemens 840Dsl Control System SpinCAD CNC Programming Software SetupPRO Set-Up Utility software Diagnosis and fault information New remote operator pushbutton panel New proportional valves New diagnostics software for easy over the net troubleshooting
