BORING MILLS, VERTICAL & VTL, CNC W/MILLING & ATC
1993 Giddings & Lewis 517 Series, Machine # 7361
Giddings & Lewis 517 Series CNC VTL with Live Tools - 2

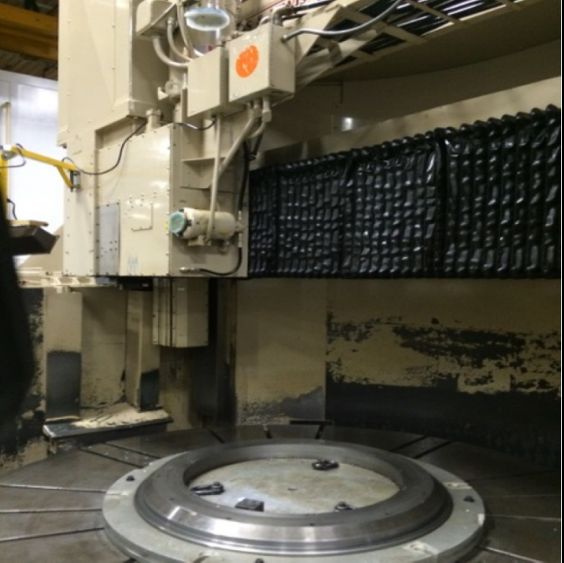

Giddings & Lewis 517 Series CNC VTL with Live Tools - 1
Reference #:
7361
Machine Type:
Vertical Lathes
Year:
1993
Manufacturer:
Giddings & Lewis
Model:
517 Series
Control:
G&L 8000
Condition:
Very Good
Under Power:
No
Code:
B6175A
Capacity:
Table Diameter: 108"
Maximum Swing: 120"
Maximum Height Under Rail: 72"
Table Indexing: Full C-Axis
Table:
Speeds (two gear ranges): up to 150 RPM
Rail:
Elevation Travel: 28"
Ram:
Z-Axis: 50"
X-Axis (Left of Center): 67"
X-Axis (Right of Center): 67.5"
Milling Spindle:
Speeds (2 gear ranges): up to 2,200 RPM
Spindle Motor: 25 HP
Side Head:
Ram Travel: 32"
Vertical Travel: 63.38"
Equipped With:
G&L 8000 Control
108" Plain Table with 100 Table Drive
C-Axis (360,000 Position - Full Contouring)
Elevating Cross Rail w/Programmable Height & Leveling
25 HP Live Spindle in Vertical Ram
Coolant Thru Vertical Ram Live Spindle
30 Position ATC for Vertical Ram
24 Position ATC for Side Head
High Volume Flood Coolant System
Trabon Lubrication
Lubricool
Part & Tool Probe Capability
Comments:
The photos were taken just before we dismantled it and put it in a heated
warehouse
Price is negotiable
