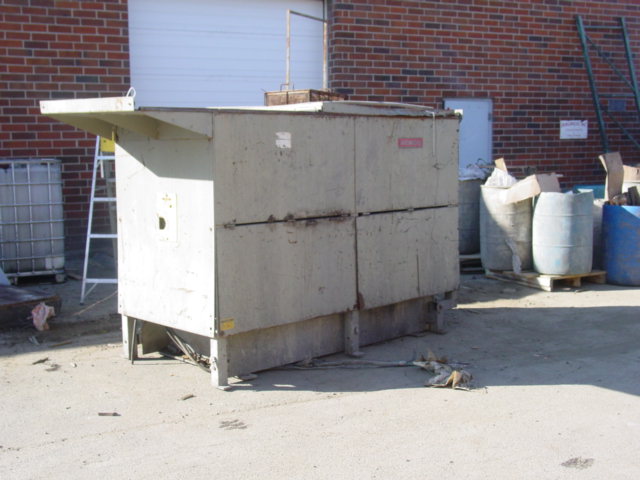

Specifications:
- Length (overall): 96"
- Width (overall: 45"
- Height (overall): 55-1/8"
- Shipping Weight: 3670 Lbs

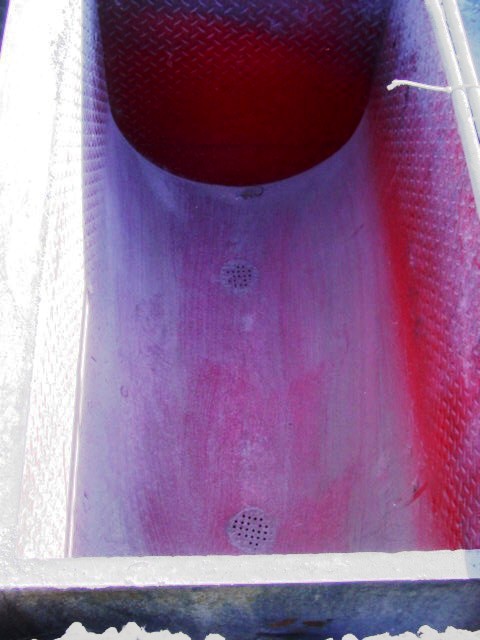

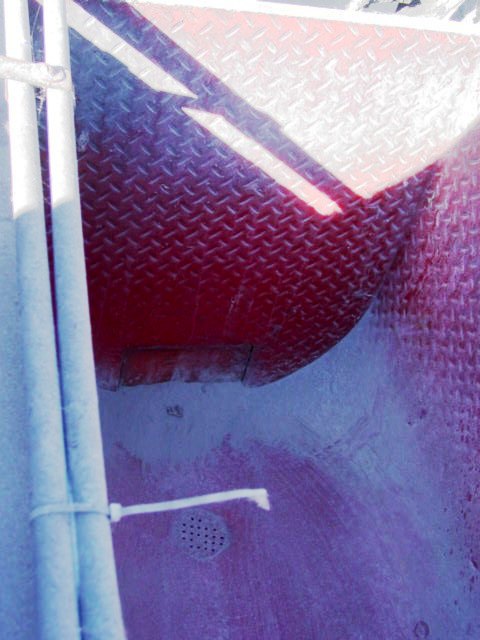

Tub:
- Tub Length: 46"
- Tub Width: 23-1/2"
- Tub Depth: 29-5/8"
- Tub Capacity: 17 Cubic Feet
Comments:
- New Style Almco Var-Drive System
- Sound Hood
- Pedestal Mounted Control Panel
- Tub cross section 23.5", 29" deep x 42" long

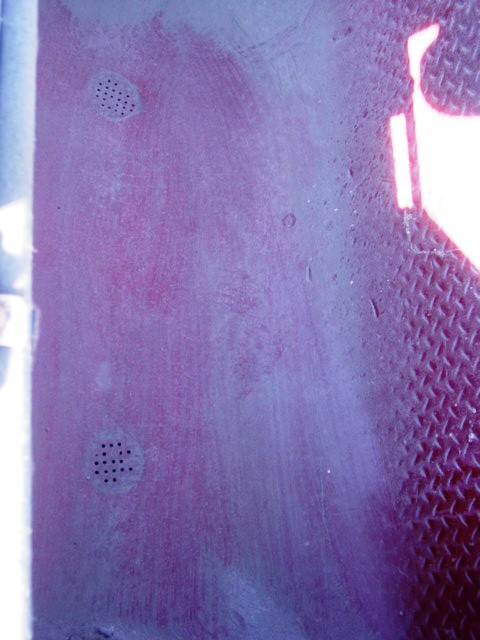

Lining:
- Polyurethane - 1" Thick, cast molded

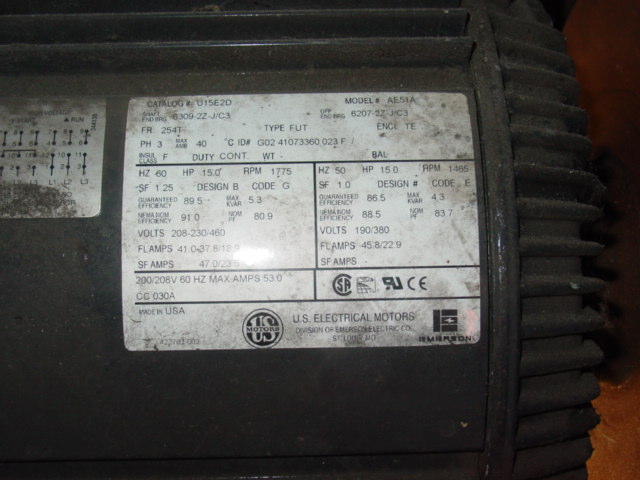

Power Unit:
- 15 HP variable speed drive with totally enclosed, fan cooled, 1800 RPM dual
- voltage motor wired 230/460 volt, 3 phase, 60 cycle operation with out speed
- of 875 to 2100 RPM.
|
