General:

• Maximum Grinding Length: 53"
• Meximum Height to the Table from the Center of the Spindle: 31"

Table:

• Useful Support Surface: 47" x 16"
• X-Axis Longitudinal Drive: 53"
• Maximum Programmable Speed: 315 IPM
• Minimum Programmable Speed: 0.39 IPM
• Minimum Programmable Increment: 0.00004"

Column:

• Z-Axis Cross Traverse: 14"
• Maximum Programmable Speed: 157 IPM
• Minimum Programmable Speed: 0.004 IPM
• Minimum Programmable Increment: 0.00004"

Wheelhead:

• Y-Axis Vertical Traverse: 16"
• Maximum Programmable Speed: 26 IPM
• Minimum Programmable Speed: 0.004 IPM
• Minimum Programmable Increment: 0.00004"

Grinding Wheel:

• Diameter x Bore: 45" - 34" x 8"
• Maximum Width: 8"
• Wheel Revolutions (Variable): 0 - 2,000 RPM

Miscellaneous:

• Approx. Weight: 29,767 Lbs

Electrics:

• Power Required: 150 kVA
• Voltage: 480 / 60

Equipped With:

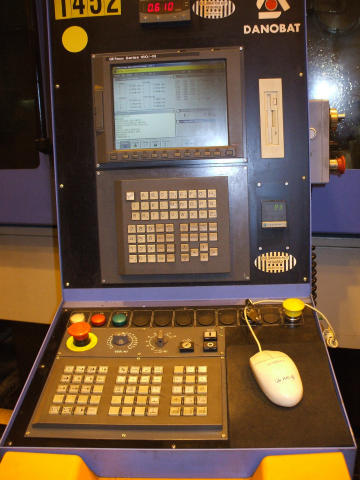

• GE Fanuc Series 160i-M Control

Comments:

• There are two (2) machines available
