Specifications:
- Max. Cutting Diameter: 31.50" - 39.9"
- Max. Swing Diameter: 39.37"
- Max. Cutting Length: 33.07"
- Spindle Center Height From Floor: 45.28"
- Spindle Motor (FANUC aP60) - 2-Speed Gear Box: 40 HP
- Spindle Speed Range: 10 - 1,250 RPM
- Max. Chuck Diameter: 24"
- Spindle Nose: A2-11
- Front Bearing Diameter: 7.87"
- Max. Weight on Spindle: 1,764 lbs.
- Spindle Speed Override: 50% - 200%
Axis Drives:
- X Axis Travel (FANUC a22/3000i AC 4.0 HP): 18.31"
- Z Axis Travel (FANUC a22/3000iB AC 5.0 HP): 33.07"
- X Axis Thrust Force: 2,950 lbs.
- Z Axis Thrust Force: 3,170 lbs.
- X Axis Ball Screw Diameter/Pitch: 1.57"/ 0.47"
- Z Axis Ball Screw Diameter/Pitch: 1.97"/ 0.47"
- X & Z Axis Rapid Traverse Rate: 630 IPM
- Feedrates: 0.00001 - 18.18 IPM
- Feedrate Override: 0 - 200%
Turret:
- Turret Type: 2-V12
- Max. Number of Tools: 2 - 12 Station
- Curvic Coupling Diameter: 11.42"
- Clamping Force: 12,590 lbs.
- Indexing Time (station to station): 0.7 sec
- Standard Turning Tool Size: 1.25" x 1.25"
- Max. Boring Bar Size: 2.0" & 2.5"
Machine:
- Electric (Transformers): 85 KVA (200v)
- Hydraulic Motor: AC 1.5 Kw
- Slide Way Lubrication Pump Motor: AC 20w
- Coolant Pump Motor: Turret (SPK2-8/8; 57 psi/ 8 gpm): AC 550w
- Coolant Pump Motor: Wash (CHK4-60/2; 14 psi/31.5 gpm): AC 620w
- Machine Light: AC 100v-20w
- Reservoirs: Hydraulic Tank: 10.6 gal
- Slideway Lubrication Tank: 1.59 gal
- Coolant Tank: 118 gal
- Machine: Height: 160.0"
Floor Space:
- Width: 116.9"
- Length: 92.51"
- Height: 119.6"
- Weight (2-Speed Gearbox Heavier Model): 50,600 Lbs
Main Machine:
- Width: 12 Ft 8"
- Length: 8 Ft 5"
- Height: 11 Ft 6"
- Weight (Approximate): 25,000 Lbs
2nd Spindle Unit:
- Width: 11 Ft 6"
- Length: 7 Ft 7"
- Height: 11 Ft 6"
- Weight (Approximate): 23,000 Lbs
Coolant Tank:
- Length: 14 Ft
- Weidth: 3 Ft 6"
- Height: 2 Ft 6"
- Weight (Approximate): 2500 Lbs
Comments:
- Fanuc 18iTB
- Spindle Bearings Double Row Cylindrical and Angular Contact
- Spindle Speed Selection Direct RPM Programming 2-Speed High-Low Range
- Speed Range Shift 2- Speed Gear Box Programmable High-Low Range
- Full C-Axis Live Tooling
- Cooling System for Ball Screws (to minimize expansion) Forced Oil
- Automatic Open/Close Splash Guard Chain Type Chip Conveyor Both Machines
- (Rear Discharge)
- Chuck Cylinders - Chuck Open/Close Direction Change
- Chuck Open/Close Confirmation (Prox. Switches) Memory Protect Key Switch
- One Color Signal Tower Chuck Open/Close (Push Button)
- Cycle Completion Alarm & Light Door Interlock
- High Pressure Coolant (57 psi) Mounting Plates and Leveling Screws
- 85 Kva Multi-tap Transformer Tool/Work Counter on Screen
- Spindle Orientation High Pressure Coolant 120 psi

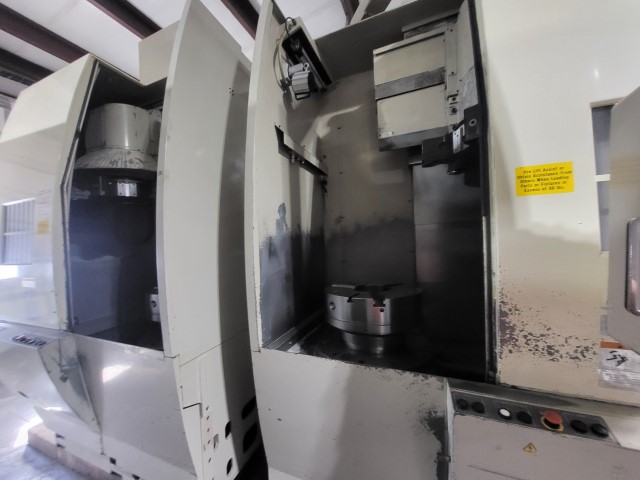

- This machine was removed from production due to routine upgrades.
- It can be inspected under power and comes with the coolant tank, 12 extra
- tool holders and feet
|
