Machinery List

MACHINING CENTERS, GANTRY TYPE, N/C-CNC

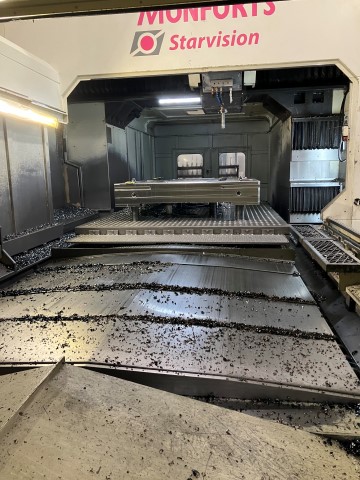

2013 Monforts Starvision PC 3223, Machine # 9346

Monforts Starvision PC 3223 - 02	Monforts Starvision PC 3223 - 03	Monforts Starvision PC 3223 - 01
Monforts Starvision PC 3223 - 04	Monforts Starvision PC 3223 - 05	Monforts Starvision PC 3223 - 06
Monforts Starvision PC 3223 - 07	Monforts Starvision PC 3223 - 08	Monforts Starvision PC 3223 - 09
Monforts Starvision PC 3223 - 10	Monforts Starvision PC 3223 - 11	Monforts Starvision PC 3223 - 12

Reference #:	9346
Machine Type:	CNC Verticals
Year:	2013
Manufacturer:	Monforts
Model:	Starvision PC 3223
Control:	Heidenhain 530i
Condition:	Used
Under Power:	Yes
Code:	M0120
Travels: X-Axis: 126" Y-Axis: 90.551" Z-Axis: 39.37" Spindle to Table Max: 47.5" Spindle: Speed Max: 6,000 RPM Taper: CAT 50 Table: Size: 79" x 118" Tool Changer: Pockets: 90 ATC Equipped With: Heidenhain 530i Control Coolant Through Spindle (High Pressure) Dual Chip Augers Chip Conveyor Air Blow Through Spindle Chiller Unit 3 + 1 ( 90 deg ) Milling Head
