2015 US Industrial Machinery US 250 13 ACR, Machine # 9271

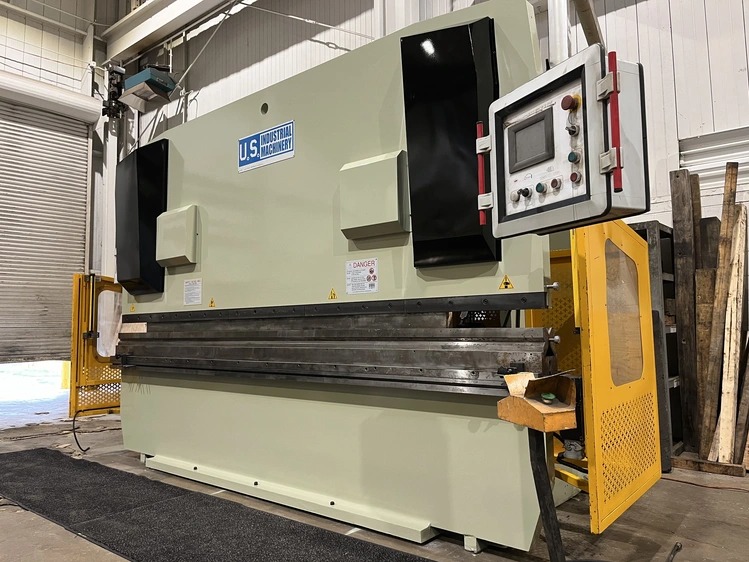

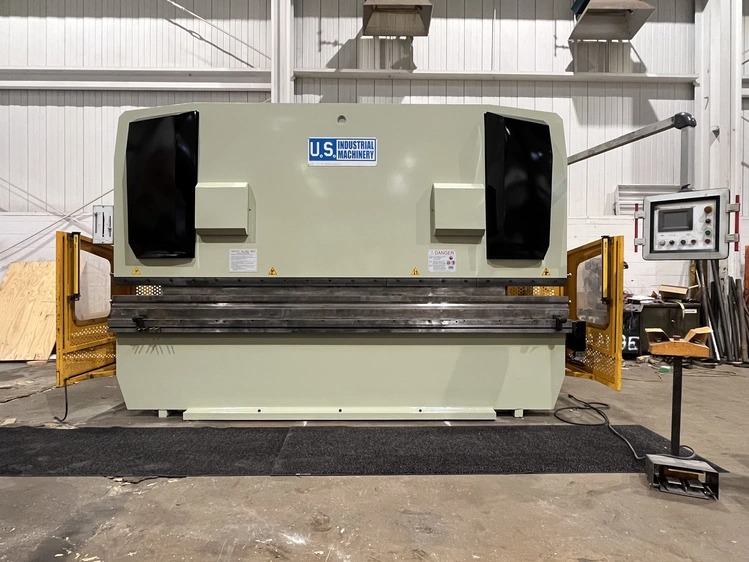

US Industrial Machinery US 250 13 ACR - 1	US Industrial Machinery US 250 13 ACR - 3	US Industrial Machinery US 250 13 ACR - 2

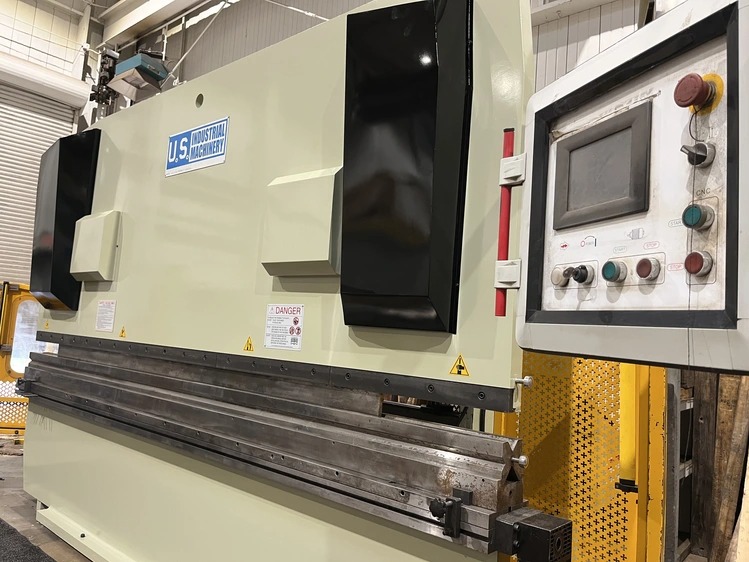

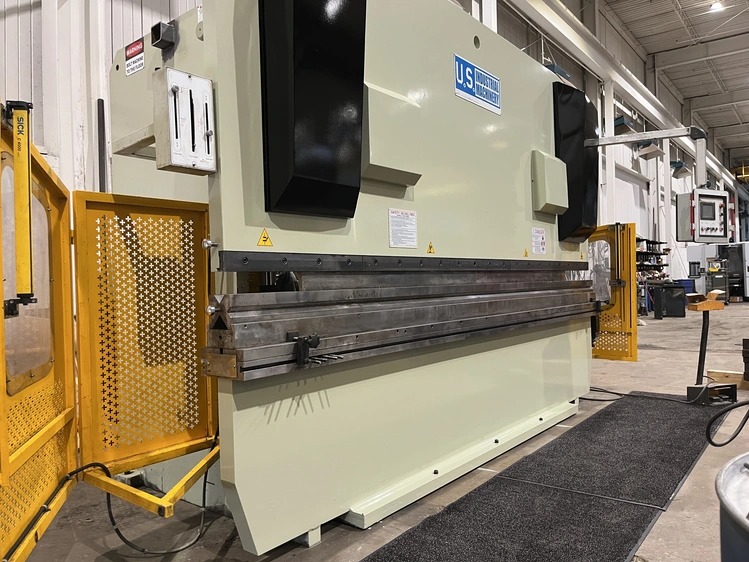

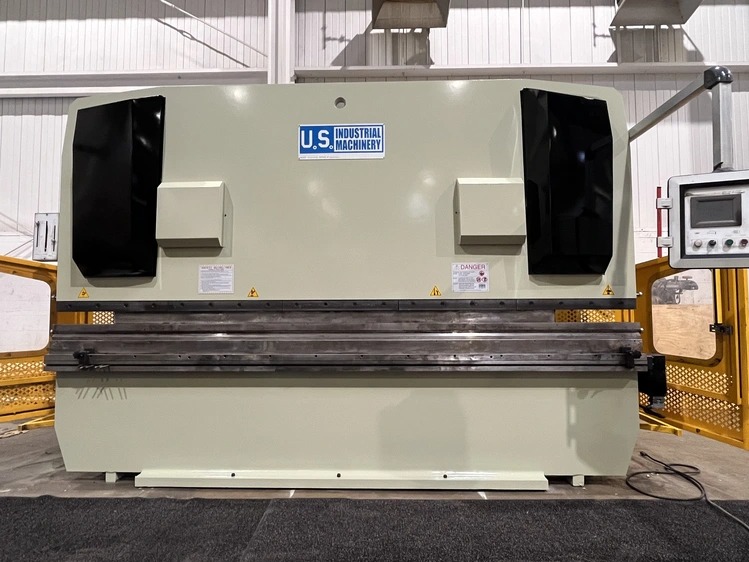

US Industrial Machinery US 250 13 ACR - 4	US Industrial Machinery US 250 13 ACR - 5	US Industrial Machinery US 250 13 ACR - 6

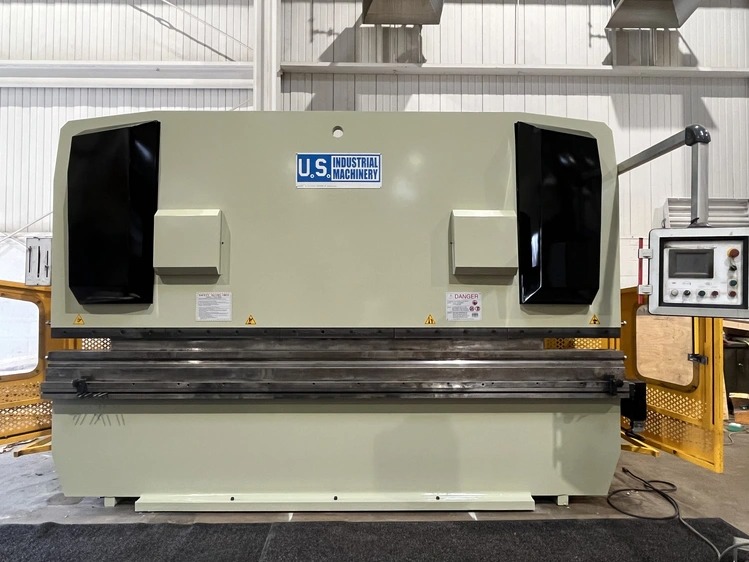

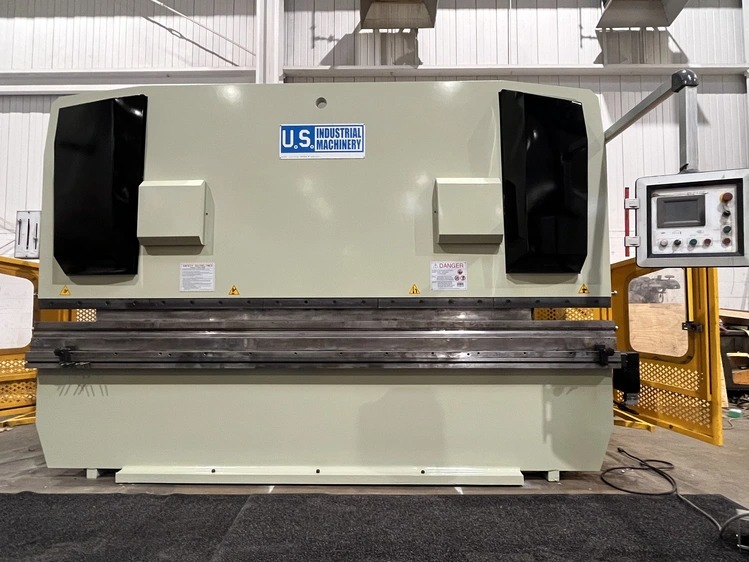

US Industrial Machinery US 250 13 ACR - 7	US Industrial Machinery US 250 13 ACR - 8

Reference #:	9271
Machine Type:	Press Brakes
Year:	2015
Manufacturer:	US Industrial Machinery
Model:	US 250 13 ACR
Control:
Condition:	Used - Very Good
Under Power:	Yes
Code:	B7335
Capacity: Tonnage: 250 Tons Bed Length: 157" Dist. Between Housings: 124" Stroke: 3.14" Ram Speed (approach, Bend, Return): 2.4 / 2.0 IPS Ram Adjustment: 7.8" Open Height: 22" Throat Depth: 15.7" Main Motor HP: 25 HP Machine Weight: 39.683 Lbs Length: 179" Width: 75" Height: 108" Equipped With: 4 Axis CNC Controlled Auto Crowning Controls BOTH Bend Angle and Backgauge Position Comes with 6" LCD touch screen Code and Graphic programming included Graphic allows 10 bends per program/cross-section Controls features a tool library Metric/inch switchable Auto bend sequence Auto retract of Backgauge Spread length Interference bend alert Calculated bend allowance Programmable ram dwell and much more Control stores thousands of programs with USB Port Ethernet and RS232 for program backup Sick Model 4000 Light Curtain System CNC Controlled Third Axis (Back Gauge Height) CNC Controlled Mechanical Auto Crown Flush Floor No Pit Required
