LATHES, CNC, 2-AXIS, UNIVERSAL

1996 Hyundai HIT-30S, Machine # 5129

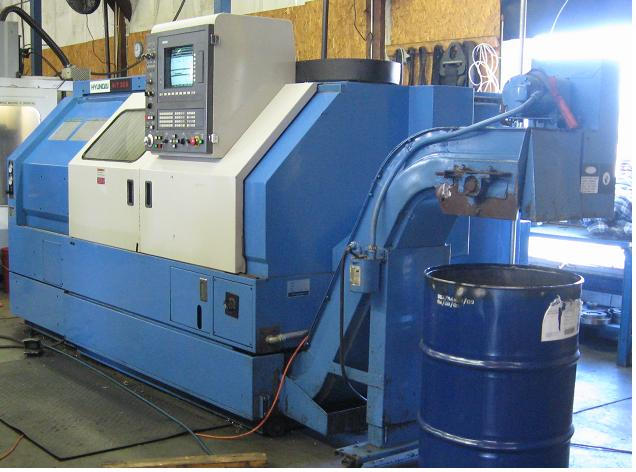

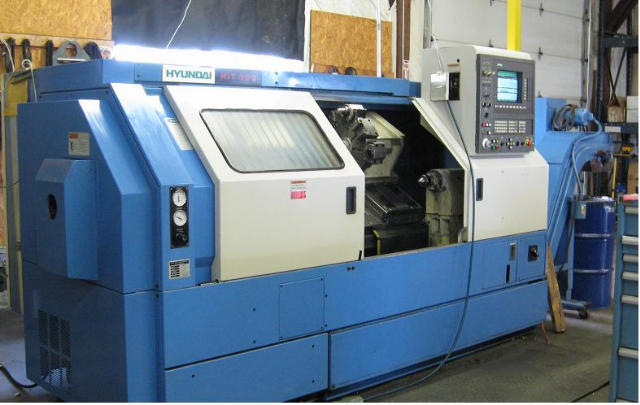

Hyundai HIT-30S CNC Lathe - 2	Hyundai HIT-30S CNC Lathe - 4	Hyundai HIT-30S CNC Lathe - 1

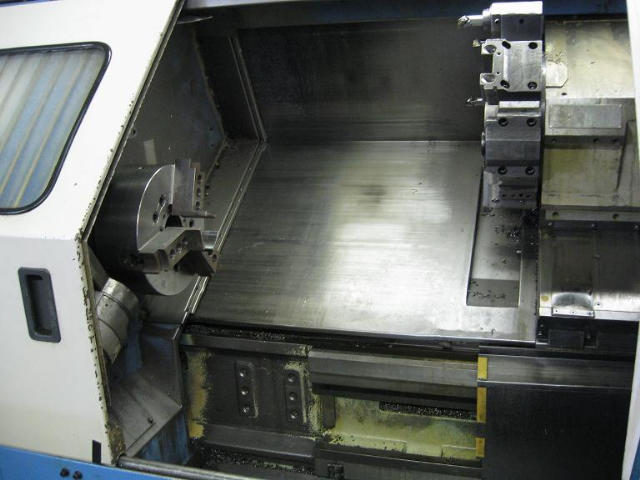

Hyundai HIT-30S CNC Lathe - 3

Reference #:	5129
Machine Type:	CNC Lathes
Year:	1996
Manufacturer:	Hyundai
Model:	HIT-30S
Control:
Condition:	Good
Under Power:	Yes
Code:	L2150
Capacity: Chuck Size: 12" Max. Turning Diameter: 15" Max. Turning Length: 32" Distance Between Centers: 20" Spindle: Speeds: 3,000 RPM Bore: 3.25" Bar Capacity: 2.76" Nose: A2-8 Main Motor: 30 HP Turret: Number of Positions: 16 X-Axis Travel: 7.87" Z-Axis Travel: 40.16" Tailstock: Stroke of Body: 32.87" Stroke of Quill: 5.12" Quil Diameter: 3.94" Quill Taper: MT #5 Rapids: Rapid Traverse (X & Z ): 709 & 945 IPM Dimensions: Floor Space (L x W x H): 136" x 70" x 75" Weight (approx.): 15,000 LBS Equipped With: AC unit for electric box Chip Conveyor Comments: Just gone through with 3 control boxes replaced with rebuilt components
