MILLERS, KNEE, N/C & CNC

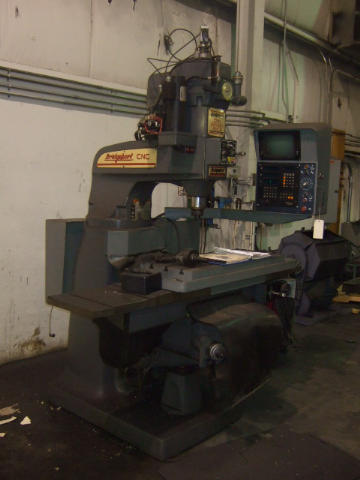

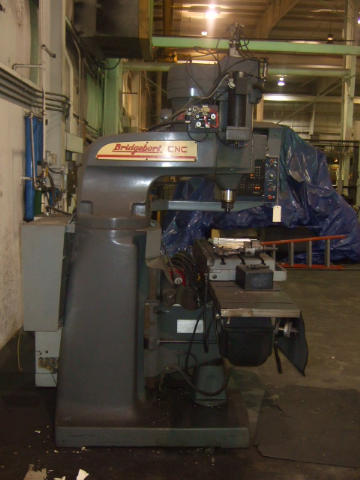

1984 Bridgeport Series II R2C3 CNC Knee Mill, Machine # 5125

Bridgeport Series II R2C3 CNC Knee Mill - 10	Bridgeport Series II R2C3 CNC Knee Mill - 13	Bridgeport Series II R2C3 CNC Knee Mill - 08
Bridgeport Series II R2C3 CNC Knee Mill - 04	Bridgeport Series II R2C3 CNC Knee Mill - 14	Bridgeport Series II R2C3 CNC Knee Mill - 05
Bridgeport Series II R2C3 CNC Knee Mill - 09	Bridgeport Series II R2C3 CNC Knee Mill - 02	Bridgeport Series II R2C3 CNC Knee Mill - 03
Bridgeport Series II R2C3 CNC Knee Mill - 01	Bridgeport Series II R2C3 CNC Knee Mill - 11	Bridgeport Series II R2C3 CNC Knee Mill - 07
Bridgeport Series II R2C3 CNC Knee Mill - 12	Bridgeport Series II R2C3 CNC Knee Mill - 06

Reference #:	5125
Machine Type:	CNC Verticals
Year:	1984
Manufacturer:	Bridgeport
Model:	Series II R2C3 CNC Knee Mill

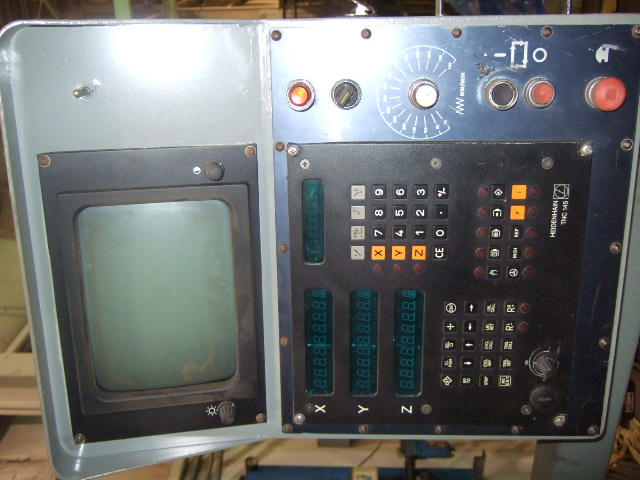

Control:	Heidenhain TNC-145
Condition:	Good
Under Power:	Yes
Code:	M1870

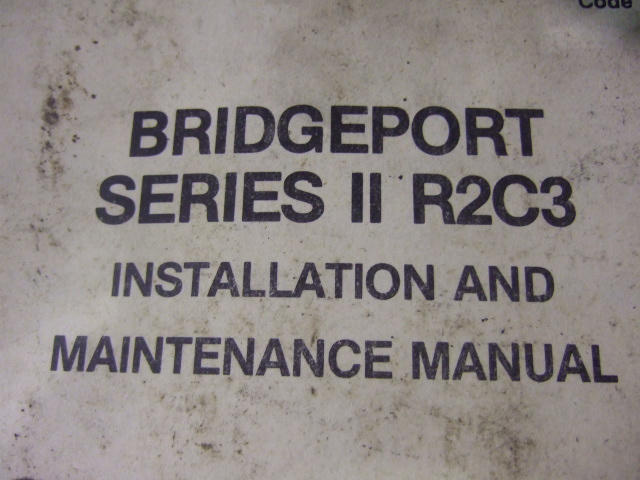

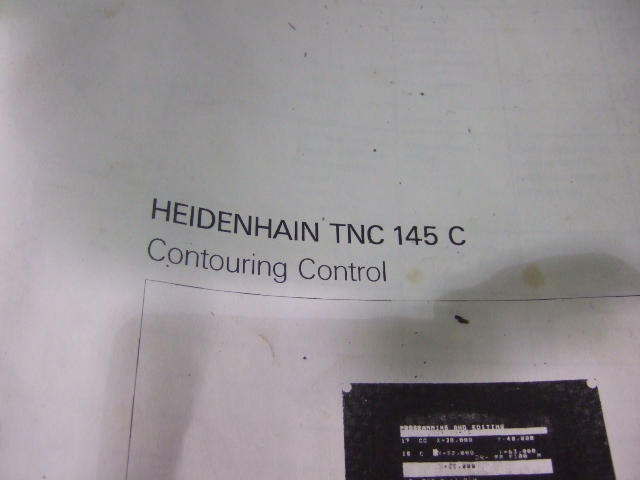

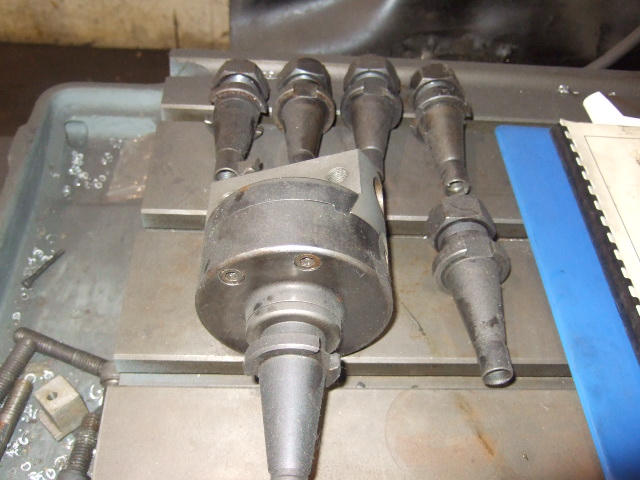

Specifications: Spindle Taper: #30 Weight: 1360 Lbs Overall Length: 80.6" Overall Length when fully retracted in Z-Axis: 104" Overall Width: 58.5" Magazine Depth: 39" Height: 49.2 - 68.8" Centerline Range: 35.4" - 45.2" : 45.3" - 58.14" X and Z Axis Retraction Travel: 23.6" Minimum Diameter (Round): .23" or 1/4" Maximum Diameter (Round): 4.7" Minimum Bar Stock Length: 5.1" Maximum Bar Stock Length: 63" Maximum Bar Stock Weight: 147.6 Lbs Air Pressure: 75 Psi Maximum Air Consumption (during loading cycle only): 1.58 US Gallons Main Electrical Power: 220 - 480 V/ 50-60 Hz Maximum Current Rate: 1 Amp Pushing Force/Torque: 167 N/3-ft Maximum Feed Rate: > 3937 IPM Loading Cycle for Bar Stock: 8 - 12 seconds Loading Cycle for Shaft Loading (one shot): 4 - 7 seconds Equipped With: Heidenhain TNC-145 Control Tapping Head Assorted 30 Taper Tool Holders Installation and Maintenance Manual Bridgeport Boss Series & R2E3 CNC Manuals on CD Heidenhain TNC 145C Contouring Control Manual
