MACHINING CENTER, HORIZONTAL, CNC

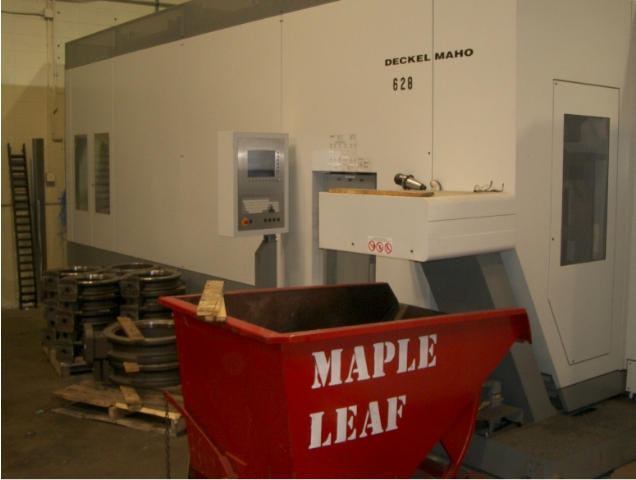

2005 DMG-Deckel Maho DMC 100 U duoBlock, Machine # 4596

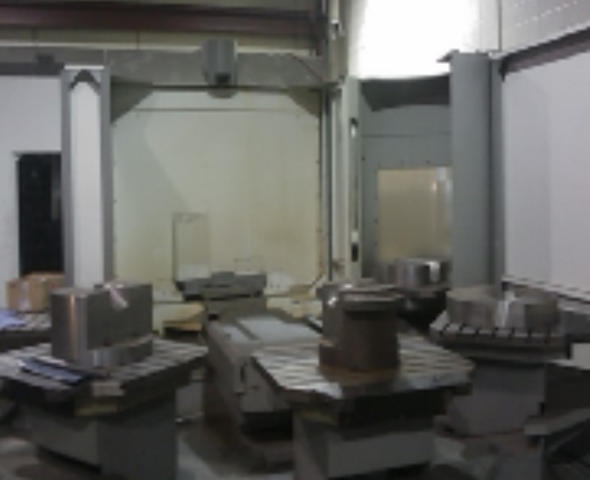

DMG-Deckel Maho DMC 100 U duoBlock CNC 5-Axis Machining Center - 10	DMG-Deckel Maho DMC 100 U duoBlock CNC 5-Axis Machining Center - 09	DMG-Deckel Maho DMC 100 U duoBlock CNC 5-Axis Machining Center - 07

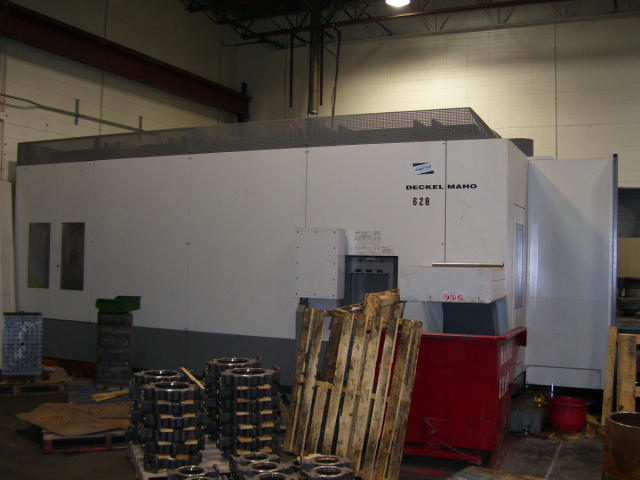

DMG-Deckel Maho DMC 100 U duoBlock CNC 5-Axis Machining Center - 04	DMG-Deckel Maho DMC 100 U duoBlock CNC 5-Axis Machining Center - 06	DMG-Deckel Maho DMC 100 U duoBlock CNC 5-Axis Machining Center - 01

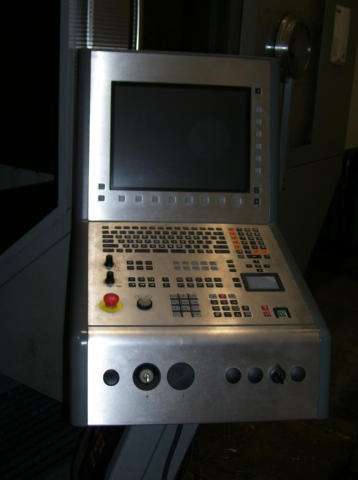

DMG-Deckel Maho DMC 100 U duoBlock CNC 5-Axis Machining Center - 08	DMG-Deckel Maho DMC 100 U duoBlock CNC 5-Axis Machining Center - 05	DMG-Deckel Maho DMC 100 U duoBlock CNC 5-Axis Machining Center - 12
DMG-Deckel Maho DMC 100 U duoBlock CNC 5-Axis Machining Center - 11	DMG-Deckel Maho DMC 100 U duoBlock CNC 5-Axis Machining Center - 02	4596

Reference #:	4596
Machine Type:	CNC Horizontals
Year:	2005
Manufacturer:	DMG-Deckel Maho
Model:	DMC 100 U duoBlock

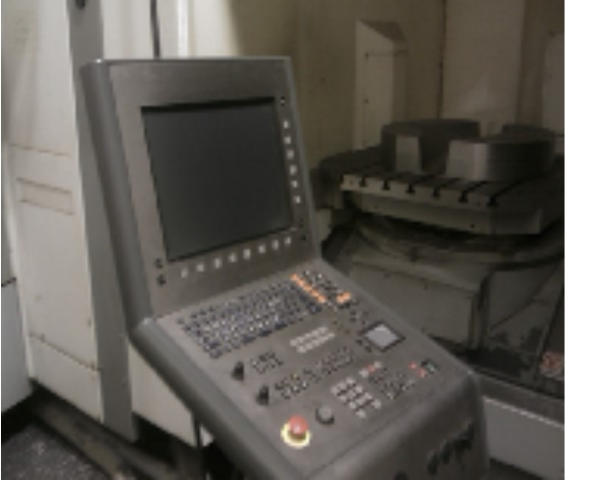

Control:	Heidenhain iTNC 530
Condition:	Excellent
Under Power:	Yes
Code:	M0130T

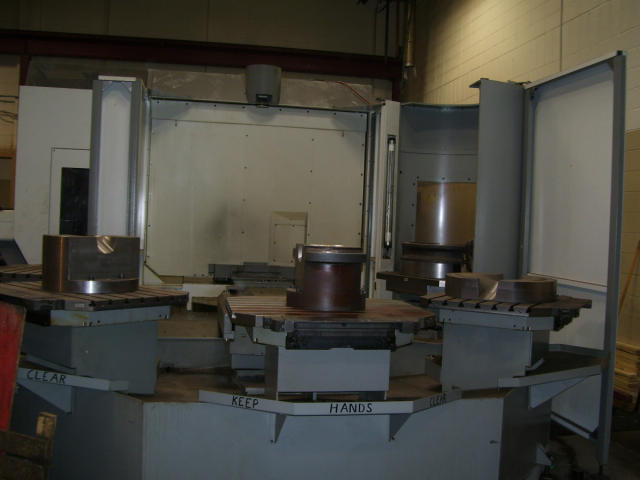

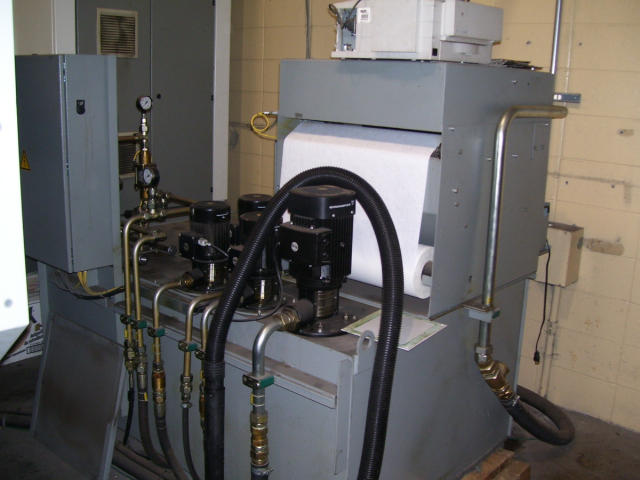

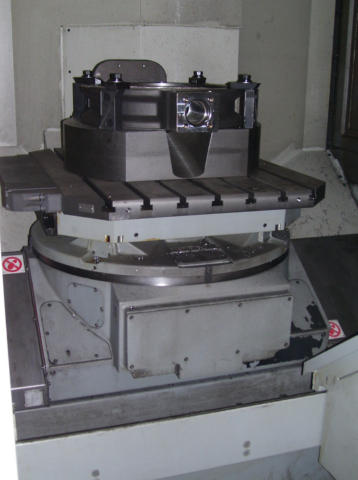

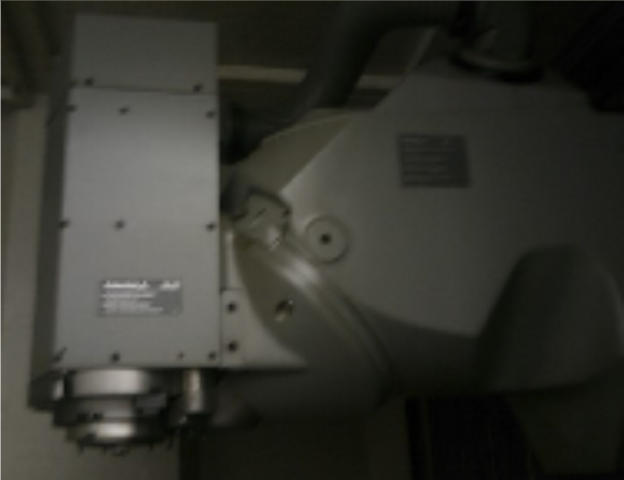

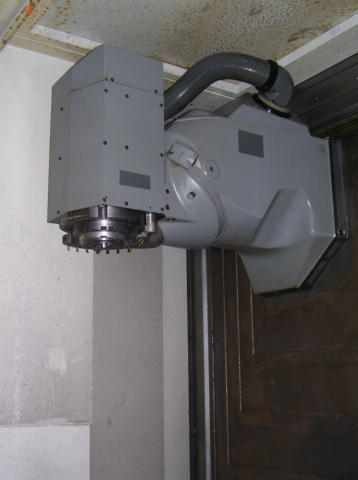

Pallet: Length x Width: 39.4" x 31.5" Indexing (B-Axis): 360.000 deg Maximum Load On Pallet: 3307 Lbs Maximum Part Height: 62” Spindle: Spindle Speeds (RPM): 10,000 RPM Spindle Taper: CT 50 Main Motor (HP @ 40% and 42.9 @ 100%): 59 and 42.9 Travels: X-Axis Travel: 39.4" Y-Axis Travel: 39.4" Z-Axis Travel: 39.4" Rapid traverse rate (X,Y,Z): 2362 IPM Cutting feed rate (X,Y,Z): 2362 IPM Spindle Rotation (A-Axis): 0 to 190 deg Tool Changer: Tool Changer Positions: 240 ATC General: Dimensions: 37' x 19' Equipped With: Heidenhain iTNC 530 control Renishaw Probing System High Pressure (1000 psi) thru the spindle coolant Linear Servo Motors Five (5) Pallet Pool with Automatic Pallet Changer 240 tool rack type tool changer 5-Axis Machining Capability Comments: 5263 power on hours 1585 cutting hours Total cost to get load ready to be placed on trucks for shipping is $18,000: --- Dismantle the machine and prep it for shipping will cost --- --- an additional $7000 --- Crating $5500 (5 crates 2 truck loads) --- Crane to get machine to crating company $5500
