BORING MILLS, HORIZ, FLOOR TYPE

1958 Asquith 8", Machine # 4056
Machine 4056 image 0
Asquith 8 inch Floor Type Horizontal Boring Mill - 09		Machine 4056 image 1

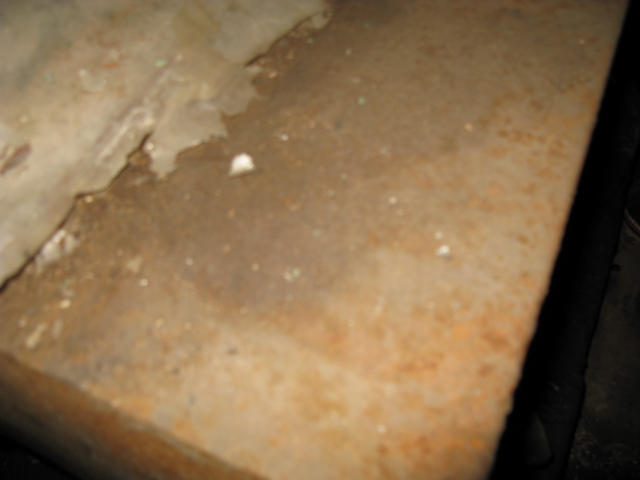

Asquith 8 inch Floor Type Horizontal Boring Mill - 01		Machine 4056 image 2

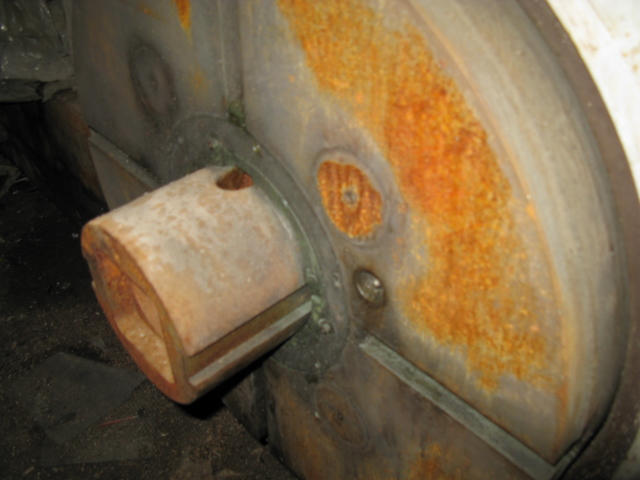

Asquith 8 inch Floor Type Horizontal Boring Mill - 03
Machine 4056 image 3

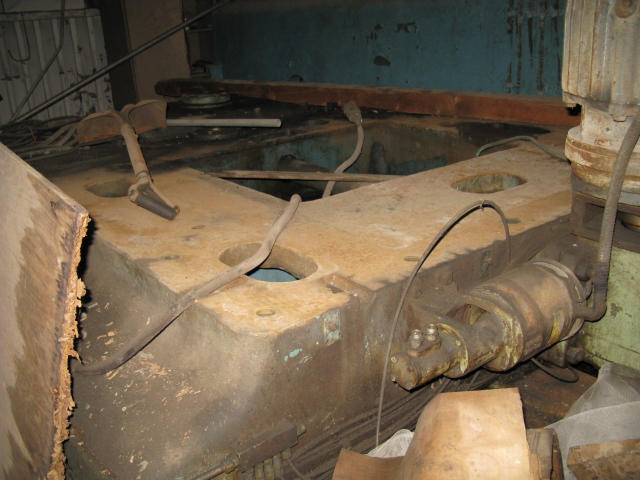

Asquith 8 inch Floor Type Horizontal Boring Mill - 07		Machine 4056 image 4

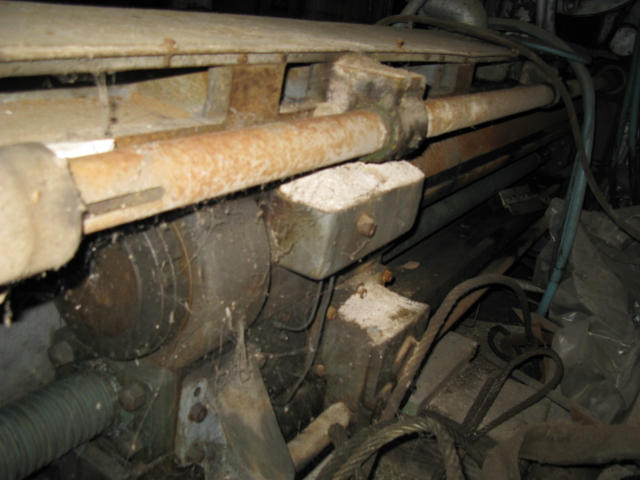

Asquith 8 inch Floor Type Horizontal Boring Mill - 06		Machine 4056 image 5

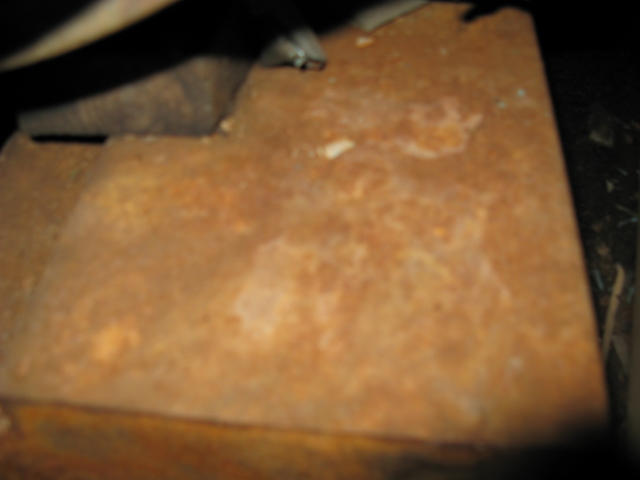

Asquith 8 inch Floor Type Horizontal Boring Mill - 04
Machine 4056 image 6

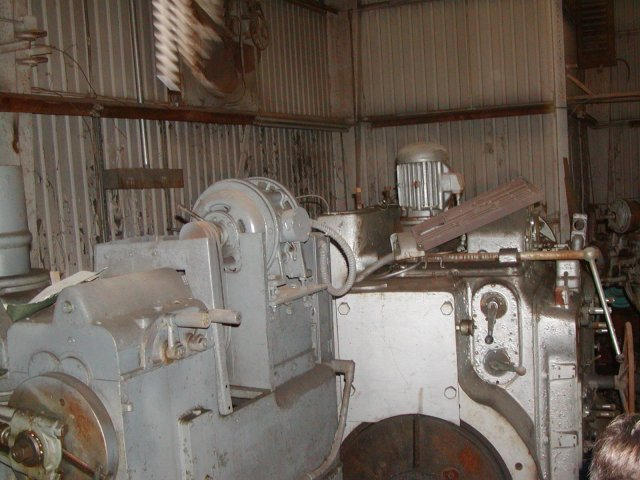

Asquith 8 inch Floor Type Horizontal Boring Mill - 10		Machine 4056 image 7

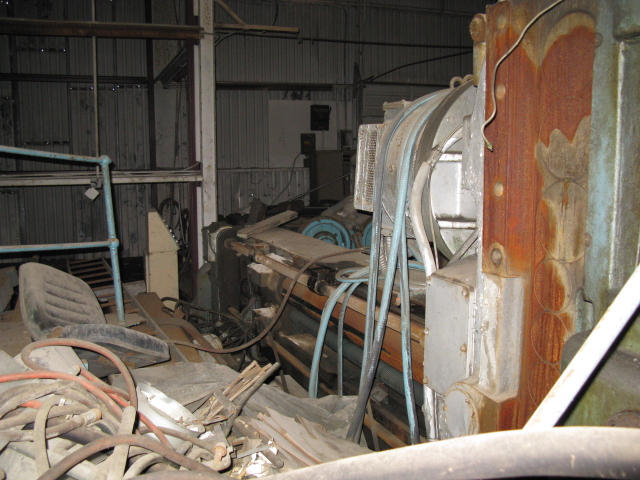

Asquith 8 inch Floor Type Horizontal Boring Mill - 02		Machine 4056 image 8

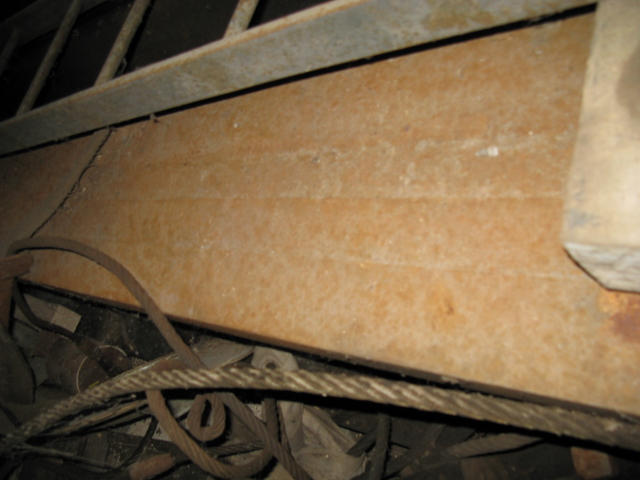

Asquith 8 inch Floor Type Horizontal Boring Mill - 05
Machine 4056 image 9

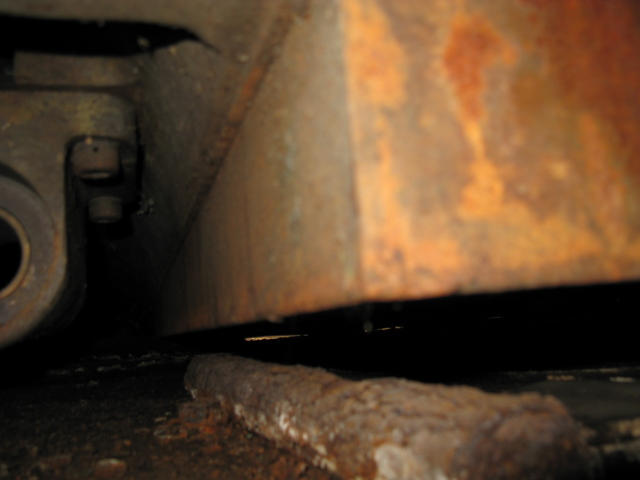

Asquith 8 inch Floor Type Horizontal Boring Mill - 08
Reference #:4056
Machine Type:Boring Mills
Year:1958
Manufacturer:Asquith
Model:8"
Control:
Under Power:NO
Code:B5400

Spindle:

  • Spindle Diameter: 8"
  • Spindle Taper: ???
  • Speeds: 2.4 - 124 rpm
  • Motor: 50 HP

Travels:

  • X-Axis (Cross): 327"
  • Y-Axis (Vertical): 130"
  • Z-Axis (Spindle): 96"
  • Facing Head: 4"

Equipped With:

  • Facing Head
  • 15 HP Traverse Motor
  • 15 HP Elevating Motor
  • 50 H.P. G.E. Motor generator
  • Pendant
